Spiral Conveying Disc Machine

Product Overview

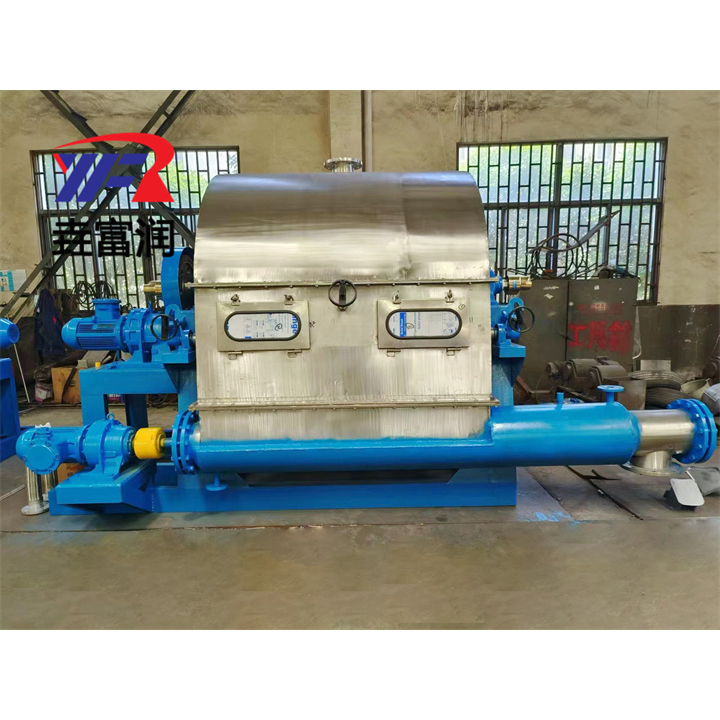

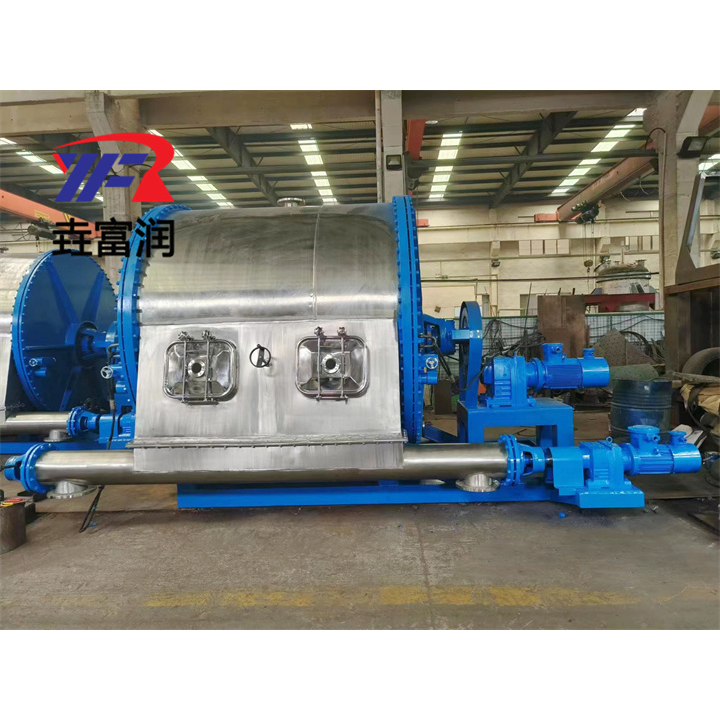

      A crystallization (heating) cutting machine is a cooling crystallization process where molten material in the hopper contacts a cooled drum, forming a material film on the drum surface. Heat exchange occurs between the material film and the drum wall, cooling and crystallizing the film. The crystallized film is then scraped off by a blade, resulting in sheet-like products.

The drum dryer is a continuous process that heats and dries materials or strip materials adhered to the outer wall of a rotating drum through heat transfer.

Performance and Features

      Equipped with side scraper, preventing material buildup at the drum's side end.

      The equipment has a compact structure and occupies a small area.

      Half-tube jacketed material tray, safe and reliable.

      Atomized cooling, excellent cooling effect.

      Stepless speed variation, adjustable drum rotation speed.

      High drum precision

      Wide range of adaptability, easy and flexible operation;

      Equipped with multiple scraper blades, offering flexible adjustment.

      Multi-functional, suitable for both sheeting and drying.

Technical Specifications
