SPF24 Detachable Combination Filling Pump, comprehensive implementation plan includes N pump head motor components, N drive box components, 1 integrated controller cabinet module, and 1 Siemens touch screen (N≥1). Modules such as pump heads, pump head motor components, drive box components, control box components, and touch screens can be sold individually or in combination. The drive box components are controlled by high-precision servo control algorithms. Customers can configure parameters such as hoses, speed, time, and verification on the supervisory computer; the integrated controller in the control box calculates based on the supervisory computer parameters and drives the motor to meet the filling requirements. The control box features an RJ45 network port for connecting to the touch screen or communicating with the supervisory computer.
SPF24 Co-phase Linear Pump is a new high-precision, compact-volume filling pump; it solves the industry pain point of precision decline after continuous filling in traditional filling pumps through electronic control. Additionally, it features a compact structure, high integration, and simple control method. With dedicated piping, it allows single-handed operation. The pump head is made of SUS304, with a surface treated for corrosion resistance, and is compatible with hydrogen peroxide, ozone, alcohol, and epoxy.HexaneDisinfect and clean. The liquid within the working tube does not come into contact with the pump body, ensuring no contamination of the liquid.
1. Product Features
Micro-dose filling, high precision, error range ≤ ±0.5%
Made of stainless steel, corrosion-resistant, and easy to clean.
Compact structure, high integration, simple control method
Supports combination sales of multiple modules to meet various customer needs.
PLC Enclosure Components with High-Precision Servo Control
The drive control box can be connected to a gateway to convert RS485 and DP communication methods, facilitating equipment use in various communication environments.
2. Typical Applications
Pharmaceutical Repackaging

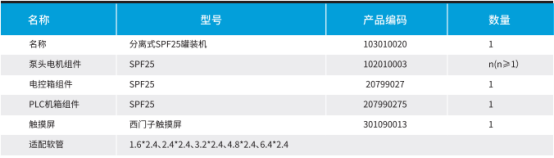

3. Configuration List

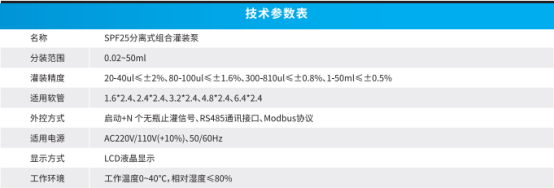

4. Technical Specifications

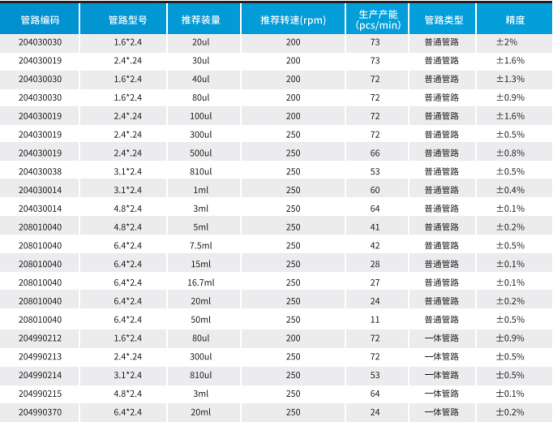

5. Recommended Pipeline Configuration Table
