The KZ15 series OEM products can be flexibly matched with DC motors, AC reduction motors, and stepper motors. The pump head features a structure with a block and body separation, allowing for quick replacement of hoses. The housing is made of aluminum alloy material with special surface treatment, making it corrosion-resistant and suitable for hoses with a 1.6mm wall thickness.

1. Product Features

Alloy material housing, with special surface treatment and corrosion resistance

Utilizing a structure where the compressed block is separated from the main body, tube installation is convenient.

Utilize a new adjustable pipe clamp method

2. Typical Applications

Chemical reactions, fluid transportation under harsh working conditions

Sample delivery in the environmental testing industry

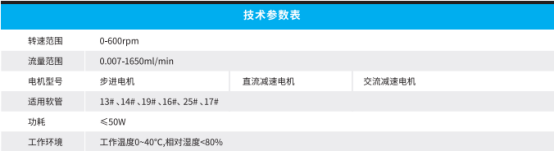

3. Technical Specifications

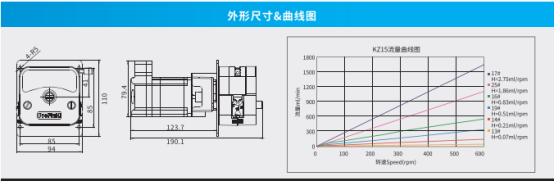

4. Dimensions & Curves
