The TP200 series is a flow measurement peristaltic pump, featuring a streamlined metal molded housing with a special coating for easy cleaning and corrosion resistance. It utilizes an integrated stepper motor for silent operation. It can be used in series with multiple pump heads, providing higher transport pressure. It includes features such as pipe size selection, flow calibration, power failure memory, rapid filling and draining, and key lock function.

1. Product Features

Compact in design, sturdy in structure, and highly portable.

LCD large-screen display window, intuitive and clear

Aluminum alloy cabinet housing with a special coating for corrosion resistance and easy cleaning. Available in both fixed quantity packaging and continuous operation modes, offering strong flexibility and suitability for various environments.

Utilizing an integrated stepper motor, the motor operates smoothly with minimal noise.

High motor torque, compatible with various pump heads.

Features power-off memory function, capable of storing 16 sets of setting parameters for quick access, enhancing work efficiency.

2. Typical Applications

Laboratory Liquid Addition and Measurement for Chemical Reaction Process

Process of adding materials in fixed quantities

Pump for fluid infusion in harsh operating conditions

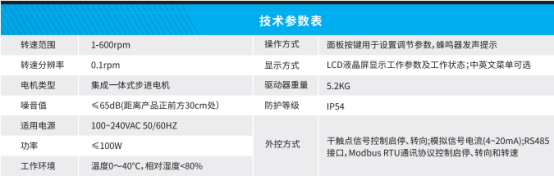

3. Technical Specifications

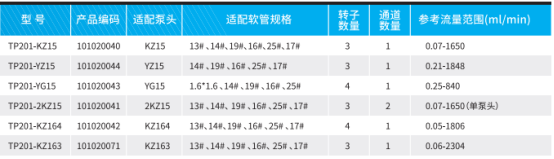

4. Product Selection

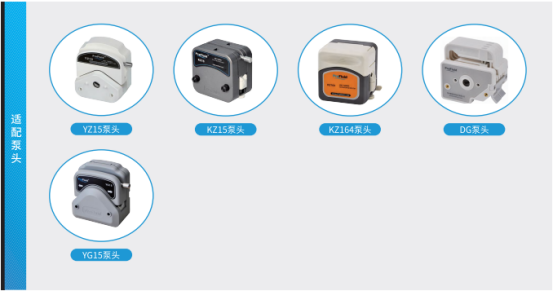

5. Compatible Pump Head
