The TP200 series is a flow measurement peristaltic pump, featuring a streamlined metal molded housing with a special coating for easy cleaning and corrosion resistance. It employs an integrated stepper motor for silent operation. It can be used in series with multiple pump heads, providing higher conveying pressure. It includes pipe size selection, flow calibration, power failure memory, rapid filling and emptying, and key lock functions.

1. Product Features

Compact in design, sturdy in structure, and highly portable

LCD large-screen display window, intuitive and clear

Aluminum alloy enclosure with a special surface coating for corrosion resistance and easy cleaning. Available in two modes: quantitative packaging and continuous operation, offering strong flexibility and suitable for various occasions.

Utilizing an integrated stepper motor, the motor operates smoothly with minimal noise.

High motor torque, compatible with a variety of pump heads.

With power-down memory function, capable of storing 16 sets of setting parameters for quick access, and high work efficiency.

2. Typical Applications

Laboratory liquid addition and measurement chemical reaction process

During the process, add materials quantitatively

Critical operating conditions for infusion pump

3. Technical Specifications

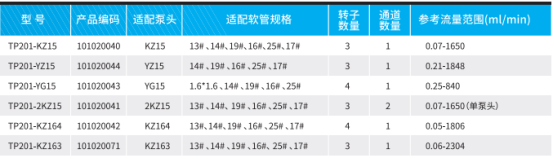

4. Product Selection

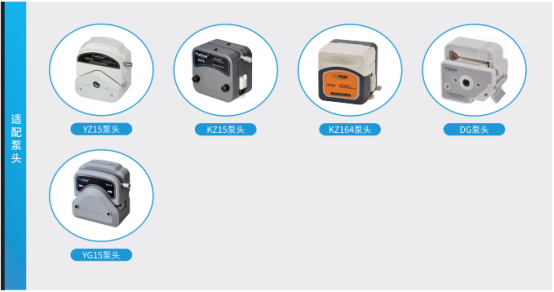

5. Compatible Pump Head
