The TP200 series is a flow metering peristaltic pump, featuring a streamlined metal molded housing with a special coating for easy cleaning and corrosion resistance. It employs an integrated stepper motor for silent operation. It can be used in series with multiple pump heads, providing higher conveying pressure. It includes pipe size selection, flow calibration, power failure memory, quick filling and emptying, and key lock functions.

1. Product Features

Compact in design, sturdy in structure, and highly portable

LCD large-screen display window, intuitive and clear

Aluminum alloy enclosure with special coating for corrosion resistance and easy cleaning. Available in two modes: quantitative packaging and continuous operation, offering flexibility for various applications.

Integrated stepper motor ensures smooth operation and low noise.

High motor torque, compatible with various pump heads

Features power-off memory function, capable of storing 16 sets of setting parameters for quick access, enhancing work efficiency.

2. Typical Applications

Laboratory Liquid Addition and Measurement for Chemical Reaction Process

During the process, add materials quantitatively

Highly corrosive working conditions for infusion pumps

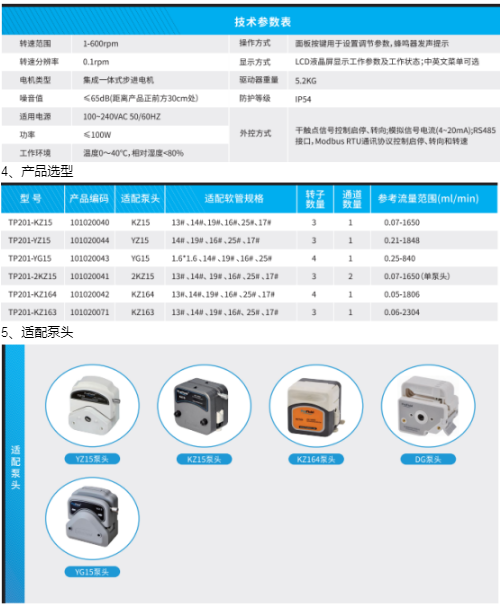

3. Technical Specifications
