TP510 Series High-Precision Discrete Dosing Peristaltic Pumps, suitable for large-volume filling. Equipped with maintenance-free DC motor servo drive and closed-loop control, the housing is made of metal with a special coating for easy cleaning and corrosion resistance. Features include dosing setting, time setting, back-suction angle adjustment, dosing verification, emptying, recording yield, power failure memory, bottle detection stop-filling, and batch dosing functions. The menu offers both Chinese and English options, allowing selection of anti-splash and foam prevention through curve adjustment, and drop prevention through back-suction angle setting.

1. Product Features

Special surface coating, easy to clean and corrosion-resistant

Maintenance-free high-torque brushless DC servo motor, closed-loop control, smooth operation

Large LCD display, bilingual menu, verification software, step counting operation

Relay touch point controls filling and start-up, featuring bottle detection stop filling function.

High-precision dispensing pump, dispensing accuracy ≤ ±0.5%

Multiple control methods, including RS485 interface

2. Typical Applications

Water Syringe Filling

Lyophilized powder vials for packaging

Diagnostic reagent packaging

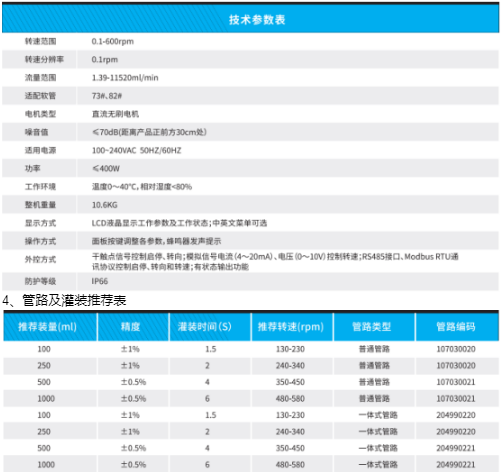

3. Technical Specifications
