The TH162 pump head features a streamlined design, with the pump cover made of transparent toughened PC material; the spring roller assembly effectively reduces hose wear; equipped with an imported planetary gear box for deceleration, offering low noise and long lifespan; servo drive with closed-loop control ensures uniform speed operation, precise position control, and torque adjustment in real-time based on load changes; low heat generation, the servo system controls brushless motors with real-time current changes, and the temperature rise due to heat is below 9℃.
1. Product Features
Highly transparent front cover for easy observation, special coating for easy cleaning
Push-to-stop, automatic alarm for anomalies to ensure safety
Manual lever operation for easy assembly and disassembly of the roller component for hoses
Spring Roller Reduces Wear, Extends Hoses Life
Maintenance-free brushless motor, servo closed-loop control
Adaptive pipe clips, silent operation
2. Typical Applications
Blood Dialysis

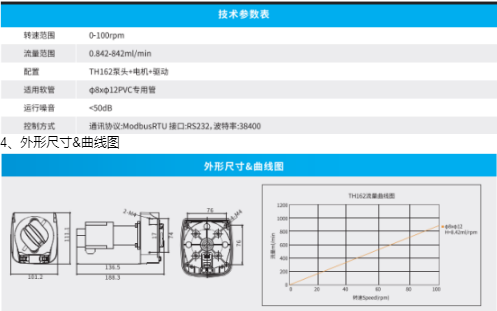

3. Technical Specifications
