Product Application

Primarily suited for direct-fuel fired units, gas boilers, community gas supply, and large furnace pressure reduction and stabilization.

Product Features

1) High flow capacity and precise control.

2) Fast response time, compatible with solenoid valves.

3) Simple structure, easy maintenance, and online repair available.

Key Technical Parameters

Import Pressure P1: 0.01-0.4 MPa

Export Pressure P2: 1-50 KPa

Stabilization Accuracy εP2: ±10%

Closed Pressure Pb: ≤1.25P2

Operating Temperature: -20℃ to 60℃

Working Medium:Natural GasCoal gas, liquefied petroleum gas, natural gas, and other non-corrosive gases.

Flow Meter

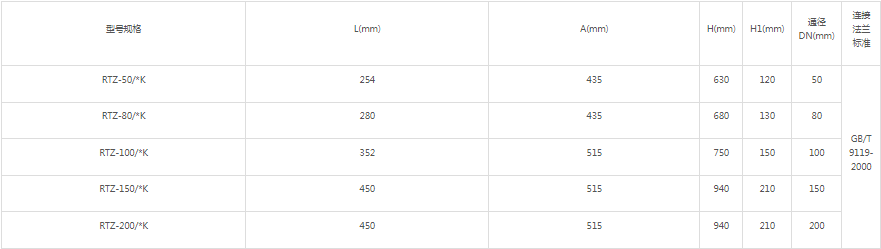

Dimensions Table
