Product Application

Applicable Medium:Natural GasArtificial Gas, LiquefiedPetroleum Gasand air, etc.

Suitable for gas pressure regulation of courtyard, buildings, units, and small to medium-sized public facilities.

Product Features

1) High sensitivity to shutdown features and high pressure regulation accuracy.

2) Easy installation, practical and convenient maintenance.

3) When the medium contains corrosive substances such as sulfur, benzene, etc., corrosion-resistant materials can be chosen.

Key Technical Parameters

Import Pressure P1: 0:02-0.8 MPa

Export Pressure P2: 1-5; 5-30 KPa

Rated Flow Rate: 10-45 Nm³/h

Stabilization Accuracy εP2: ±10%

Shut-off pressure Pb: ≤1.2P2

Operating Temperature: -20℃ to 60℃

Nominal Pipe Size: DN20, DN25, DN50

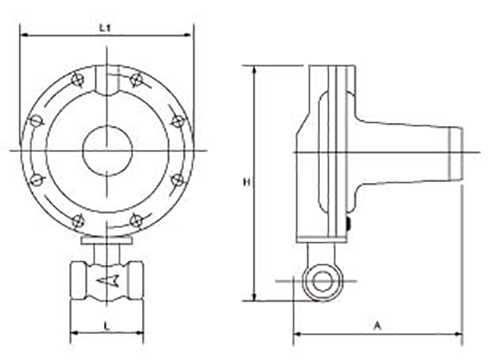

Structural diagram
