Product Application
1) Easy installation, minimal space required; high flow rate, high accuracy.
2) Feature-sensitive shutdown, precise pressure control.
3) Simple pressure setting with an efficient noise reduction design.
4) Online maintenance and easy to operate for maintenance.
5) Stainless steel interior components, long-lasting.
6) When the medium contains corrosive substances like sulfur, benzene, etc., anti-corrosive materials can be chosen.
7) Applicable Medium:Natural Gasartificial gas, liquefied gasPetroleum GasCommodities such as air, etc.
8) Suitable for city gate stations, area regulating stations, industrial users, and gas turbine fuel supply.
Key Technical Parameters
Import Pressure P1: 0.05-1.0 MPa
Export Pressure P2: 0.05-0.4 KPa (adjustable)
Stabilization Accuracy εP2: ±5%
Shut-off Pressure Pb: ≤1.15P2
Operating Temperature: -20℃ to 60℃
Nominal Pressure: PN 1.6, PN 2.5
Nominal Pipe Size: DN25, DN50

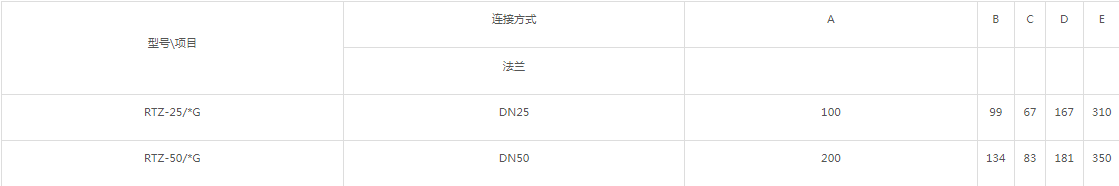

Main structure and installation dimensions
