Product Application

High-pressure and medium-pressure regulators are a new domestic type of regulators that can be used for high-pressure to medium-pressure gate station pressure regulation.

Product Features

Compact, high flow rate, easy maintenance, wide application range, low cost; ideal for assembly with valves, safety cut-off valves, bleed valves, and flowmeters into a boxed pressure-reducing station.

Primary Technical Parameters

Import Pressure P1: ≤0.8 MPa

Export Pressure P2: ≤0.05-0.4 MPa

Stabilization accuracy εP2: ±10%

Shut-off Pressure Pb: ≤1.25P2

Bore: DN50, DN80, DN100, DN150, DN200

Working Medium:Natural GasCoal gas, liquefied petroleum gas, natural gas, and other non-corrosive gases.

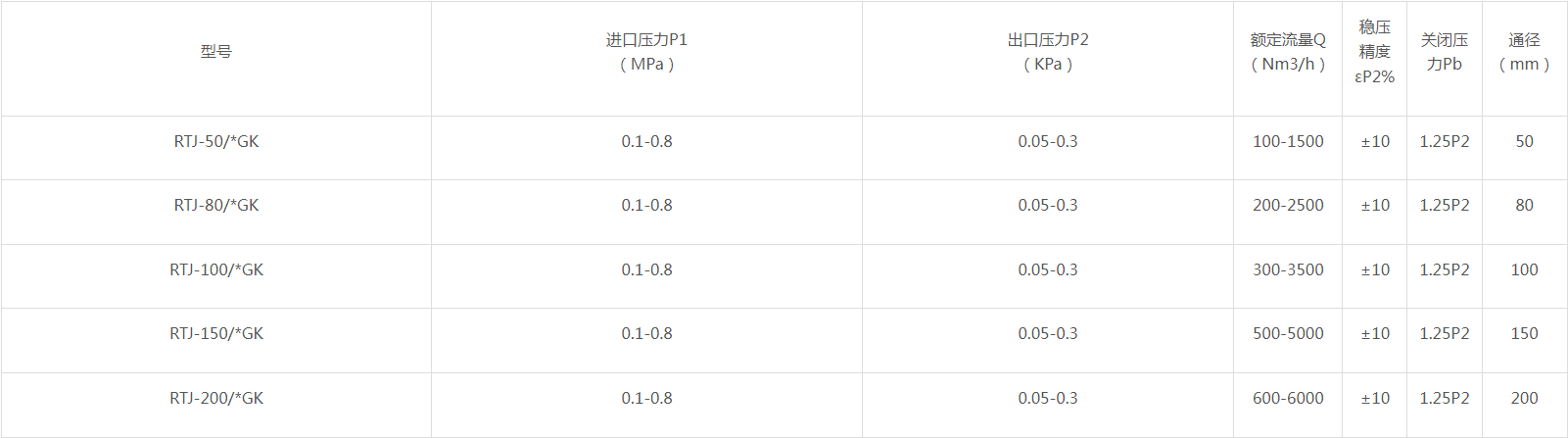

Flow meter

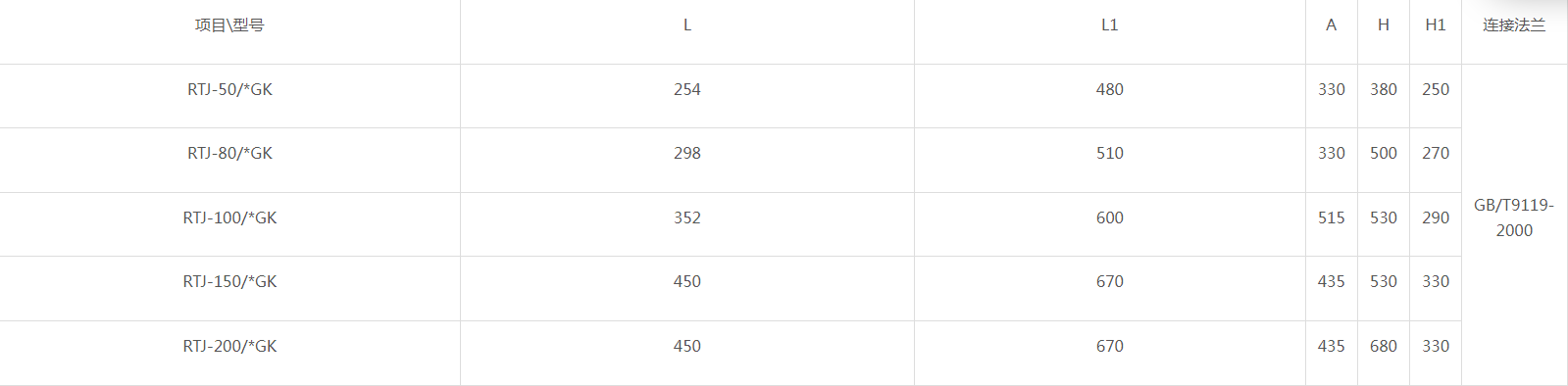

Dimensions Chart

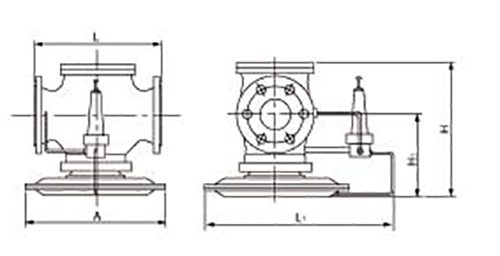

Structural diagram
