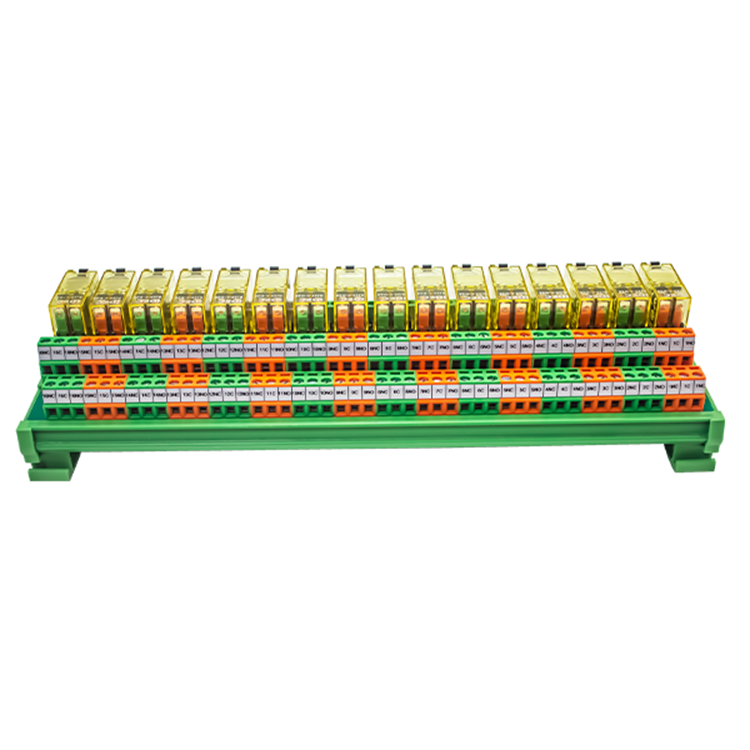

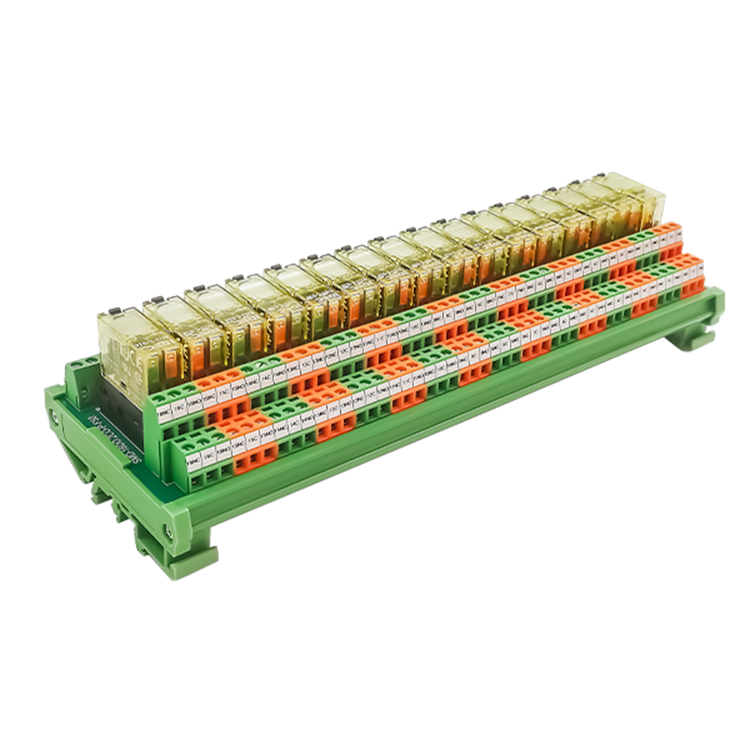

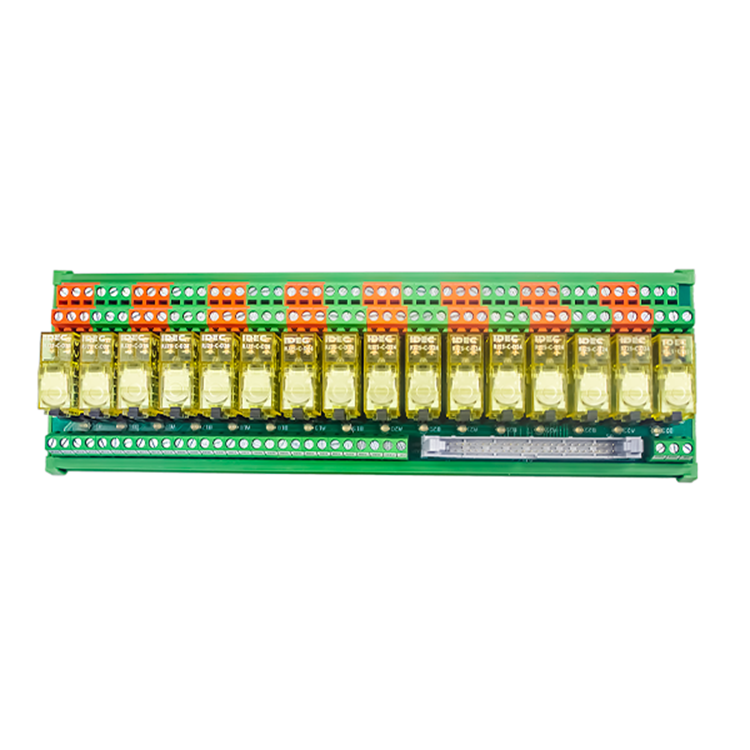

Siemens, Fanuc CNC System Relay Module SMD-16DO-2CO-P-F50

Applicable to

Siemens, Fanuc CNC systems

Features

Easy to connect, less prone to errors

② Easy maintenance

③ Compact size

Interface Description:

      1. XTI is a 50-core flat plug, connected to the system during use; A24, B24, A25, and B25 are already connected.
2. The 0V of XT2 is the common input terminal of the relay (connected to 0V), connected to A01 of XT1; E24 is connected to A24, B24, and
A25, B25 connected.
3. The XT3 is the corresponding lead terminal for XT1; 0V is connected to A01, N24 to B01.
4. XT4 is a 16-way dual-open, dual-closed relay.
5. The XT5 provides two sets of normally open and normally closed outputs for each corresponding relay, with NC indicating normally closed, C for common terminal, and NO for normally open.
