Product Description:
Machine Model: DWF-5.4/(1.7-3.45)-21
Equipment Specifications:
Compressed Gas: Natural Gas
Flow Rate: 5.4 m³/min
Inlet Pressure: 0.17~0.345 MPa
Exhaust Pressure: 2.1 MPa
Application Fields:
Primarily used for boosting the pressure and transportation of natural gas entering the pipeline network (including pipeline gas extraction and recoverable gas recovery for tanking). Also suitable for mixing in the pharmaceutical and brewing industries, pressurized gas transportation in the chemical industry, blowing plastic bottles in the food industry, dust removal for machine manufacturing components, and more.
Product Application: Primarily used for boosting the pressure and transmission of natural gas entering the pipeline network.(Natural pipeline vacuuming, recovery of combustible gas for tanking) Can also be used for mixing in the pharmaceutical and brewing industries, pressurized gas transportation in the chemical industry, blowing plastic bottles in the food industry, dust removal of parts in machinery manufacturing, etc.
Product Features:1. This series of compressors features low noise, minimal vibration, compact structure, smooth operation, safety, reliability, and high level of automation. They can also be customized with digital remote display and control systems according to customer requirements. 2. Equipped with low oil pressure, low water pressure, high temperature, low intake pressure, and high exhaust pressure alarm shutdown functions, these compressors ensure enhanced operational reliability.

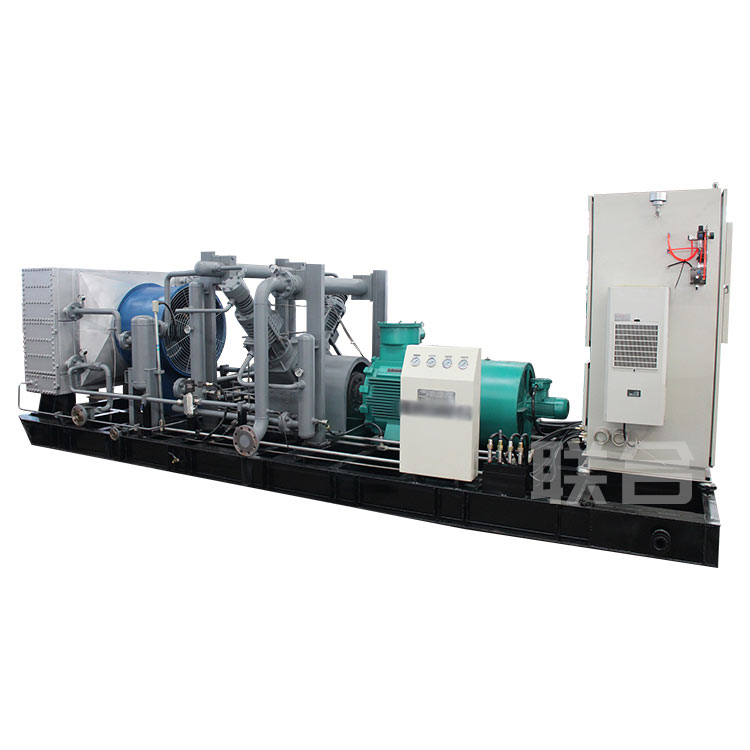

Structure Introduction: The unit consists of a compressor main unit, motor, coupling, flywheel, piping system, cooling system, electrical equipment, and auxiliary equipment.
Lubrication Method: All products mentioned above are oil-free lubricated compressed medium compressors
Cooling Method:1. Water-cooled 2. Air-cooled 3. Mixed cooling (select according to actual needs)

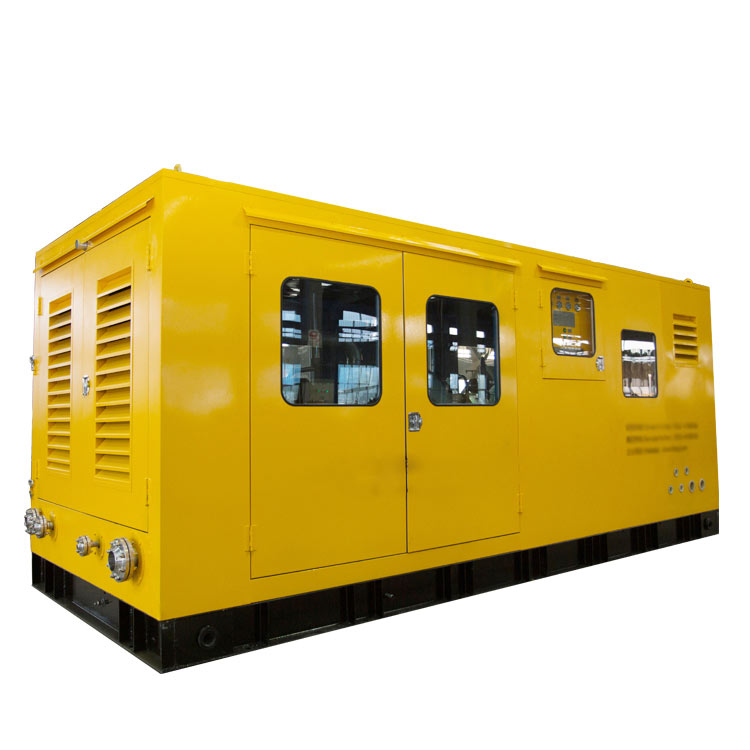

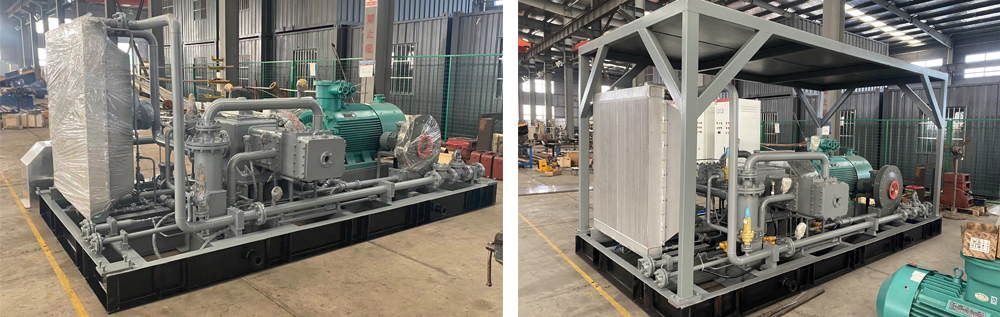

Overall Structure Types: Fixed, Mobile, Skid-Mounted, Soundproof Containerized(Select based on actual requirements)
