• Product Introduction:

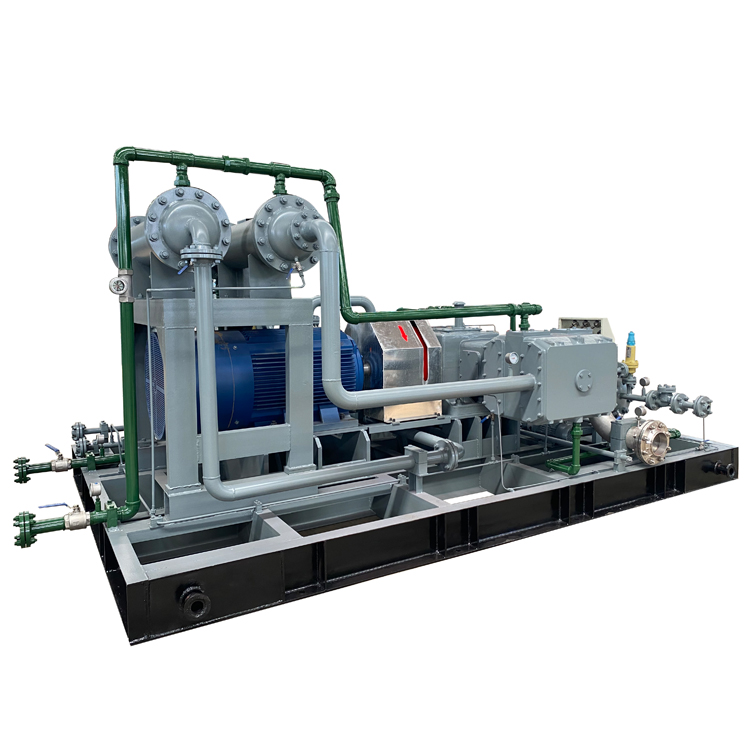

  Machine Model: DFW-2.85/(2-5)-30 Type, Equipment Specifications

• Equipment Specifications:

  Compressed Gas: Carbon Dioxide

  Flow Rate: 2.85 m³/min

  Inlet Pressure: 0.2-0.5MPA

  Exhaust Pressure: 3MPA

• Application Fields:

  Broadly applicable for pressure boosting, pressure stabilization, power, and blow-off in the process, also providing a stable power source for power plants, food industry, pharmaceuticals, and research institutions.

Product Application: Primarily used for unloading, loading, tank transfer, off-gas recovery, and waste liquid recovery in process gas systems. Widely applicable for process flow增压, pressure stabilization, power supply, and blow cleaning, also providing a stable power source for power plants, food industry, pharmaceuticals, and research institutions.

Product Features1. This series of compressors boasts low noise, minimal vibration, compact structure, smooth operation, safety, reliability, and high automation. They can also be customized with digital remote display and control systems according to customer requirements. 2. Equipped with low oil pressure, low water pressure, high temperature, low intake pressure, and high exhaust pressure alarm shutdown functions, these compressors ensure even greater reliability in operation.

Structure Introduction: The unit consists of a compressor main unit, motor, coupling, flywheel, piping system, cooling system, electrical equipment, and auxiliary equipment.

Lubrication Method:1. Oil-Free 2. Oiled

Cooling Method:1. Water Cooling 2. Air Cooling 3. Mixed Cooling (select according to actual needs)

Overall structural types: Fixed, Mobile, Skid-mounted, Soundproof Container, etc.(Select as per actual requirement)
