• Product Introduction:

  Machine Model: VWF-4.3/-0.2-7

• Equipment Specifications:

  Coalbed Methane

  Flow Rate: 4.3 m³/min

  Inlet Pressure: -0.02 MPa

  Exhaust Pressure: 0.7 MPa

• Application Fields:

  Primarily used for offloading, loading, transfer, waste gas recovery, and residue fluid recovery of process gases. Widely applicable for pressure boosting, pressure stabilization, and gas recovery in the process flow.

Product Features:1. This series of compressor products features low noise, minimal vibration, compact structure, stable operation, safety, reliability, and high level of automation. They can also be customized with digital remote display and control systems according to customer requirements. 2. Equipped with low oil pressure, low water pressure, high temperature, low intake pressure, and high exhaust pressure alarm and shutdown functions, these compressors ensure even greater operational reliability.

Product Applications: Primarily used for unloading, loading, tank transfer, waste gas recovery, and residual liquid recovery in process gas systems. Widely applicable for pressure boosting, pressure stabilization, and gas recovery in process flow.

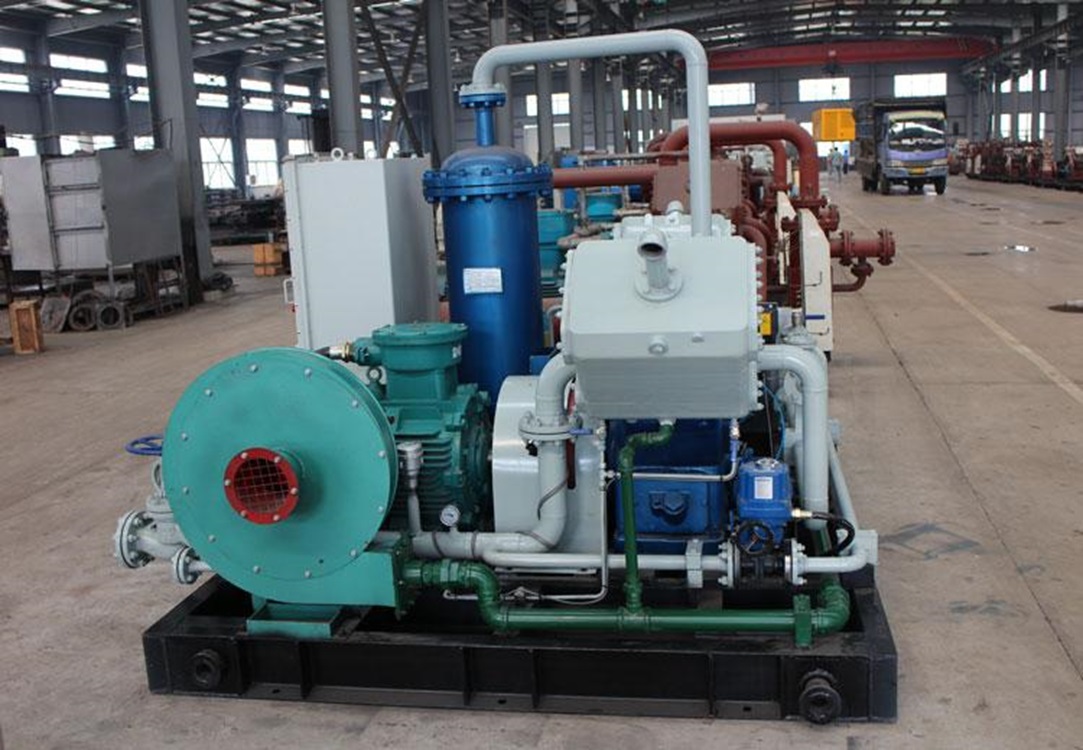

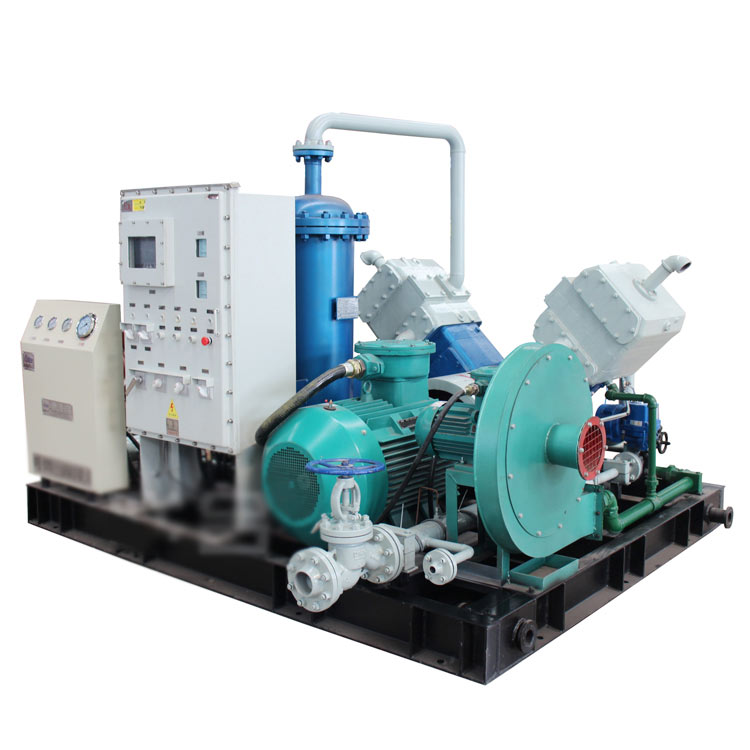

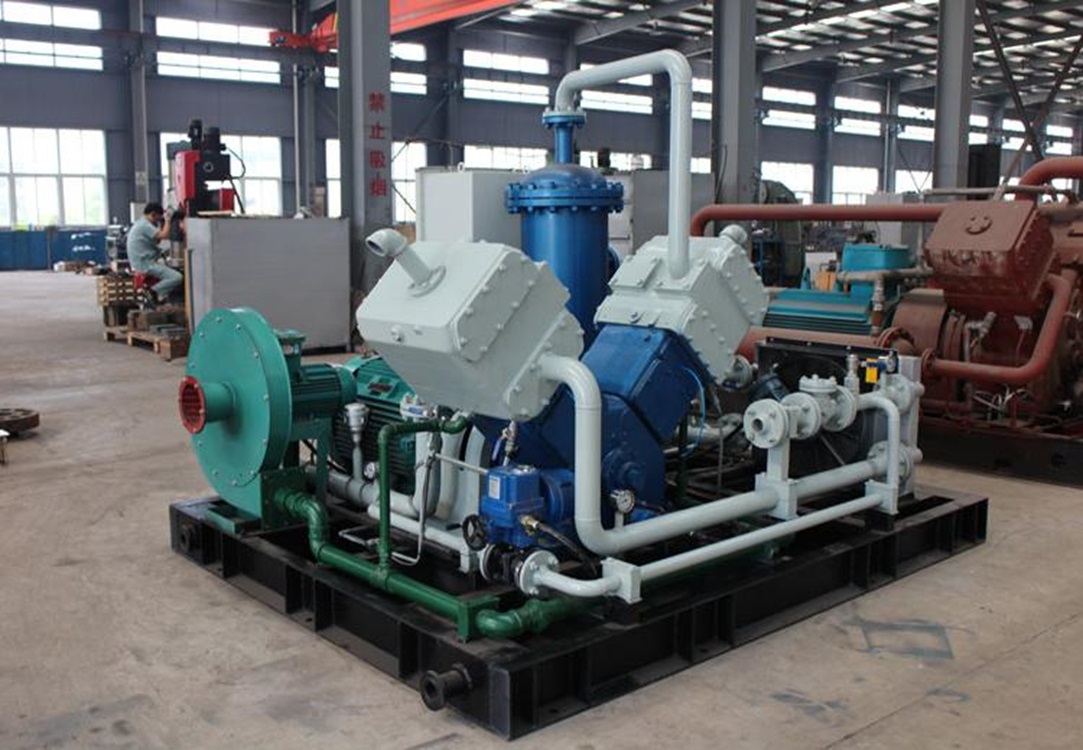

Structure Introduction: The unit consists of a compressor main unit, motor, coupling, flywheel, piping system, cooling system, electrical equipment, and auxiliary equipment.

Lubrication Method:1. Oil-Free 2. Oiled

Cooling Method:1. Water Cooled 2. Air Cooled 3. Mixed Cooling (Select according to actual needs)

Overall structural types: Fixed, Mobile, Skid-Mounted, Soundproof Cabin, etc.(Select based on actual requirements)
