Product Introduction:

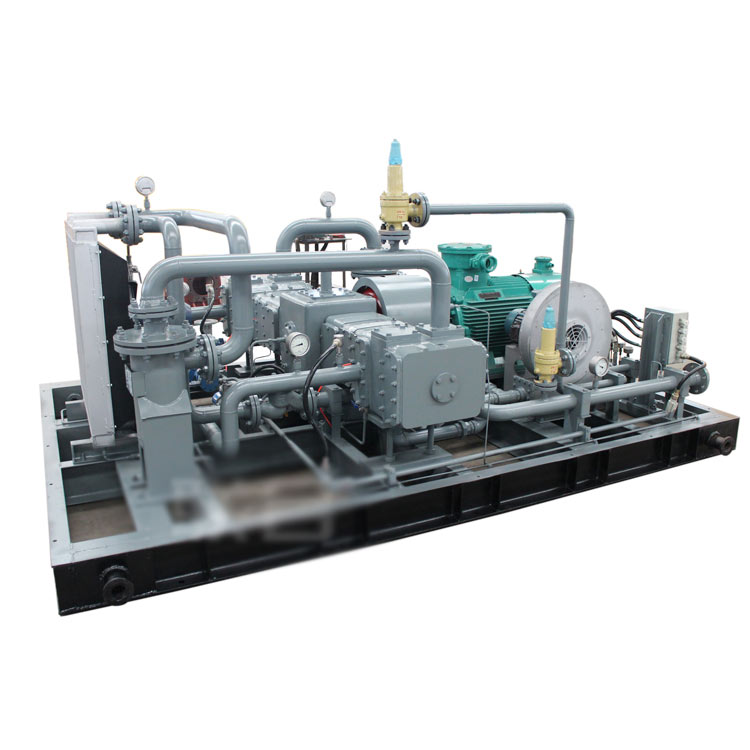

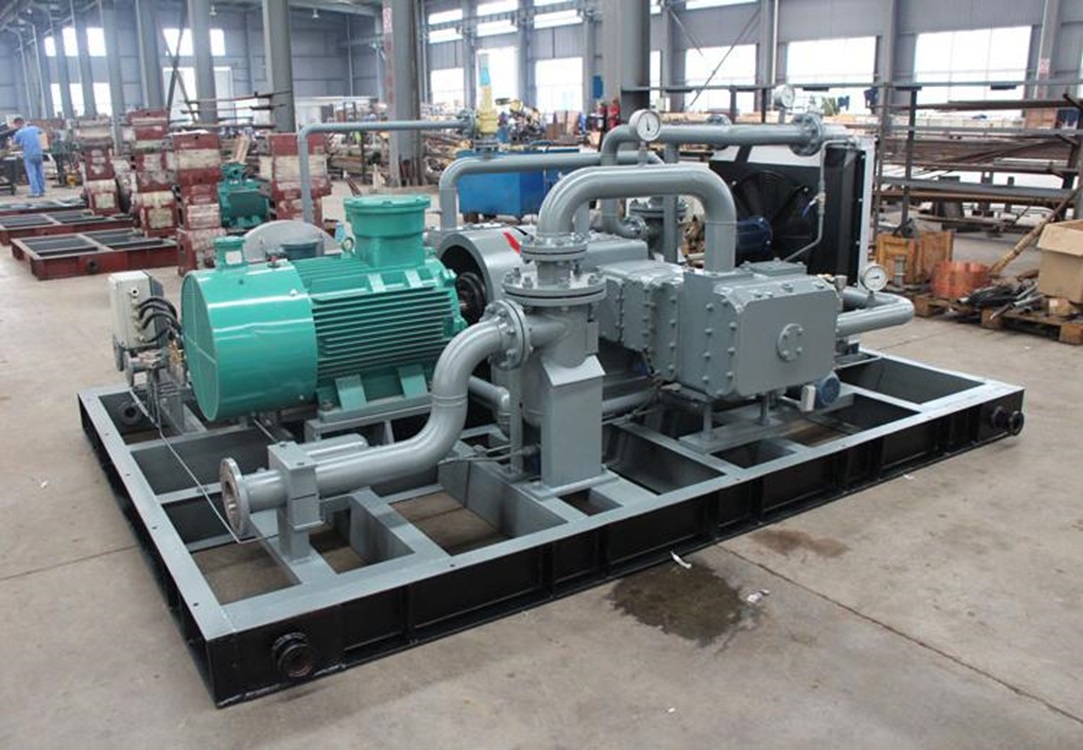

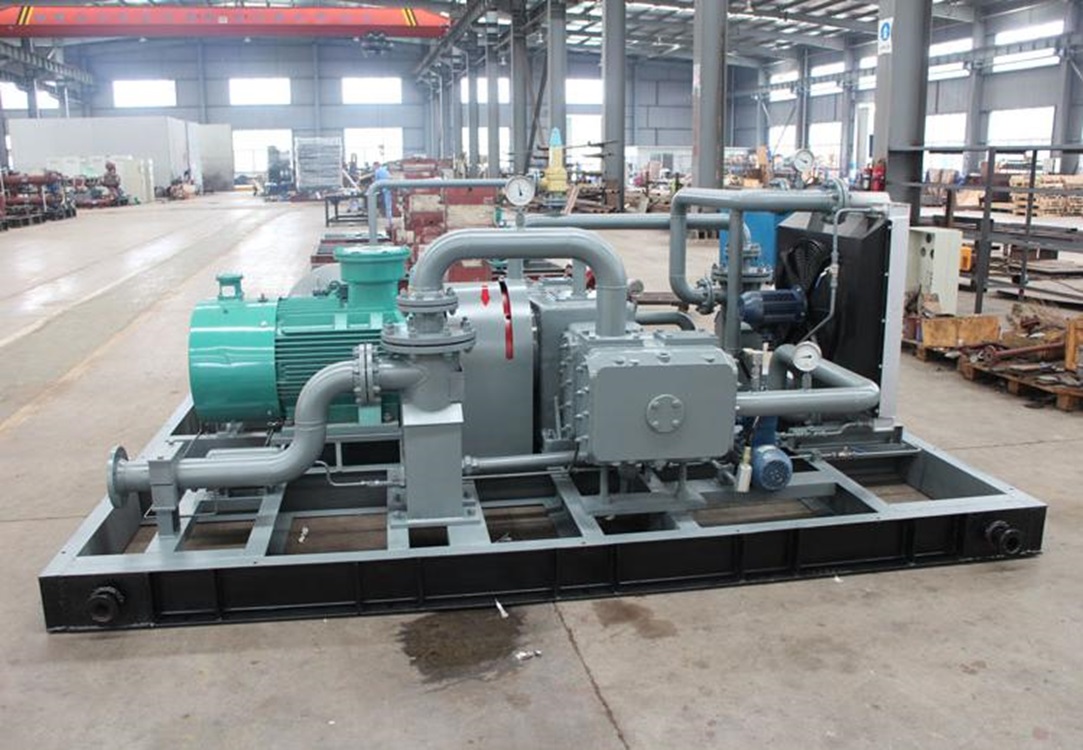

Machine Model: DWF-9.1/(0.05-0.2)-4.5

Equipment Specifications:

Compressed Gas: BOG

Flow Rate: 9.1 m³/min

Inlet Pressure: 0.005~0.02 MPa

Exhaust Pressure: 0.45 MPa

Application Fields:

Broadly applicable for boosting, stabilizing pressure, power supply, and blowing in the process, also providing a stable power source for power plants, food industry, pharmaceuticals, and research units.

Product Application: Primarily used in unloading, loading, tank transfer, waste gas recovery, and waste liquid recovery process systems for process gases. Widely applicable for process pressure boosting, pressure stabilization, power supply, and blow-off in industrial processes. Also, it can provide a stable power source for power plants, food industry, pharmaceuticals, and research institutions.

1. Our series of compressors feature low noise, minimal vibration, compact structure, stable operation, safety, reliability, and high level of automation. They can also be customized with a digital remote display and control system as per customer requirements. 2. They come equipped with low oil pressure, low water pressure, high temperature, low intake pressure, and high exhaust pressure alarm shutdown functions, enhancing the reliability of the compressor's operation.

Structure Introduction: The unit consists of a compressor main, motor, coupling, flywheel, piping system, cooling system, electrical equipment, and auxiliary equipment.

Lubrication Methods: 1. Oil-Free 2. Oiled

Cooling Methods: 1. Water Cooling 2. Air Cooling 3. Mixed Cooling (Choose according to actual needs)

Overall structure types: Fixed, Mobile, Skid-mounted, Soundproof Cabin, etc. (Choose according to actual requirements)
