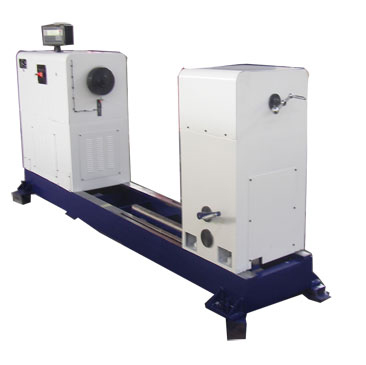

Automatic Wire Winding MachineOur Introduction

The automatic wire winding machine produced by Jinan Desen uses automatic wire laying and tensioning technology, suitable for winding coils of various small and medium-sized distribution transformers, current transformers, and reactors.

Coiling with similar processes. Comprising a winding mainframe, automatic wiring device, layer insulation supply unit, tension-adjustable take-up frame, parallel and interleaving winding functions, pneumatic system, PLC control, and servo system, etc. It boasts high automation, comprehensive functions, and strong power, ensuring axial tightness and lateral compactness for coil winding, particularly suitable for rectangular coil winding.

Automatic Wire Winding Machine Features

1. The automatic wire winding machine can wind rectangular, circular, and oval coils.

2. Features include line release, variable speed without polarity, automatic line width adjustment, and smooth line release start.

3. An independent wiring system is suitable for both round and flat wires, and its wiring speed is synchronized with the winding machine. It can also be adjusted separately (due to the change in wire diameter), and adjustments can be made while the winding machine is in operation (without stopping the winding machine).

4. The main shaft can be reversed.Foot switchThe touch display is independently implemented for the control box, featuring forward and reverse count memory, and power-off memory function.

5. The variable-frequency drives, PLCs, and touchscreens used in the winding machines are selected from well-known domestic brands, ensuring reliable quality.

6. All winding machine handles and handwheels operate smoothly with no jamming or sticking.

7. The whole machine has smooth transmission, tidy wiring, high precision, and low noise.
