I. Product Introduction

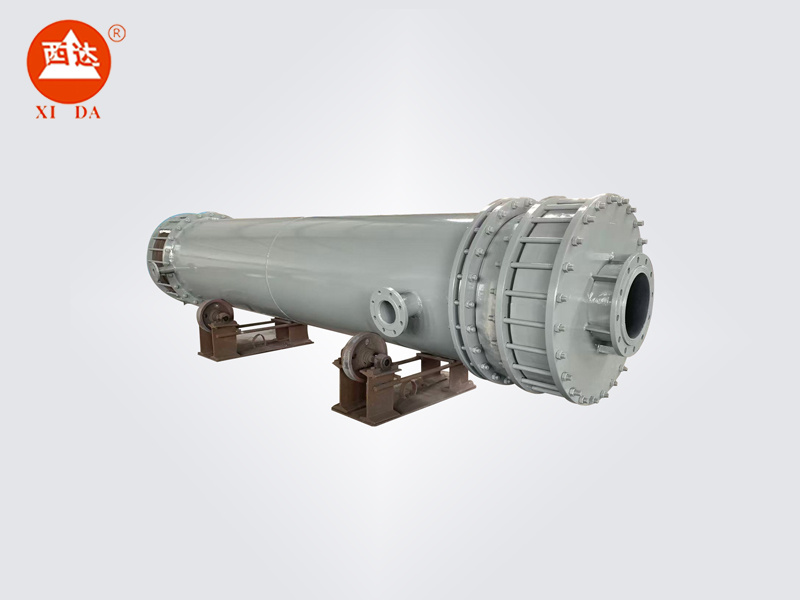

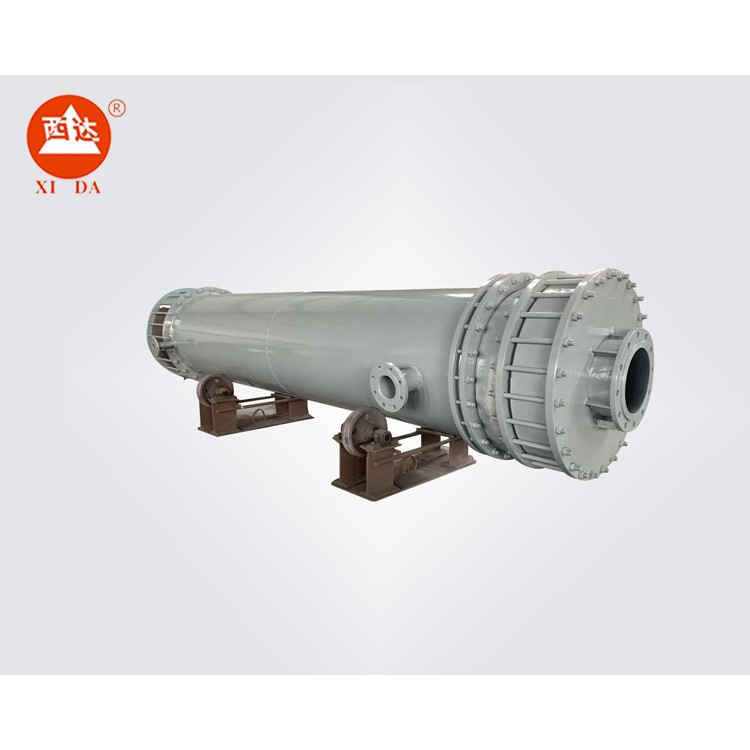

Tubular bundleGraphite CondenserA specialized equipment designed for gas condensation and heat exchange, widely used in industries such as chemicals, metallurgy, and petrochemicals, particularly advantageous in handling highly corrosive and high-temperature gases. The main feature of this equipment is its tubular structure, which uses graphite as the heat transfer medium to achieve gas cooling and liquefaction. Graphite is particularly suitable for applications requiring effective heat exchange and condensation of high-temperature, corrosive gases due to its excellent corrosion resistance, high-temperature resistance, and good thermal conductivity.

The basic working principle of a tube bundle graphite condenser is: gases enter the condenser through pipes, where they exchange heat with the cooling medium (such as water, liquid nitrogen, etc.) within the graphite tubes. The cooling medium flows through the external pipes of the condenser, removing heat from the gas and lowering its temperature. When the gas temperature drops below its dew point, some of its components condense into a liquid, completing the gas condensation process. The condensed liquid is then排出 through the drain system, while the purified gas is discharged through the exhaust pipe. The tube bundle structure allows for a larger heat transfer area within the condenser, effectively enhancing the heat exchange efficiency and ensuring the smooth progression of the condensation process.

The structural design of a tube bundle graphite condenser typically includes the condenser body, tube bundles, housing, intake and exhaust gas pipes, cooling fluid in and out pipes, and drainage system, etc. Graphite tube bundles, due to their high-temperature resistance, corrosion resistance, and wear resistance, can withstand harsh working conditions and ensure the long-term stable operation of the equipment. This condenser is commonly used for treating acidic gases and harmful gases, and can operate stably under high temperature and high-pressure conditions.

Features of the Tube-in-Tube Graphite Condenser:

Excellent corrosion resistance: Graphite materials exhibit superior resistance to acids, alkalis, and corrosion, suitable for condensation of various corrosive gases.

Withstanding high temperatures: Graphite tube bundles can withstand cooling of high-temperature gases, suitable for condensation treatment of high-temperature gases.

Effective Heat Transfer: The tube-in-tube design provides the condenser with a large heat exchange area, enhancing the cooling efficiency of the gas.

Structure Stability: Graphite tube bundles feature high mechanical strength and wear resistance, ensuring long-term stable operation under harsh conditions.

Energy-saving and environmental protection: Achieves energy reduction through effective heat exchange, and effectively removes harmful substances from gases, meeting environmental protection requirements.

Tube-type graphite condensers are widely used in gas condensation during chemical reactions, waste gas treatment, and gas recovery, etc., and are an indispensable and important equipment in chemical production.
