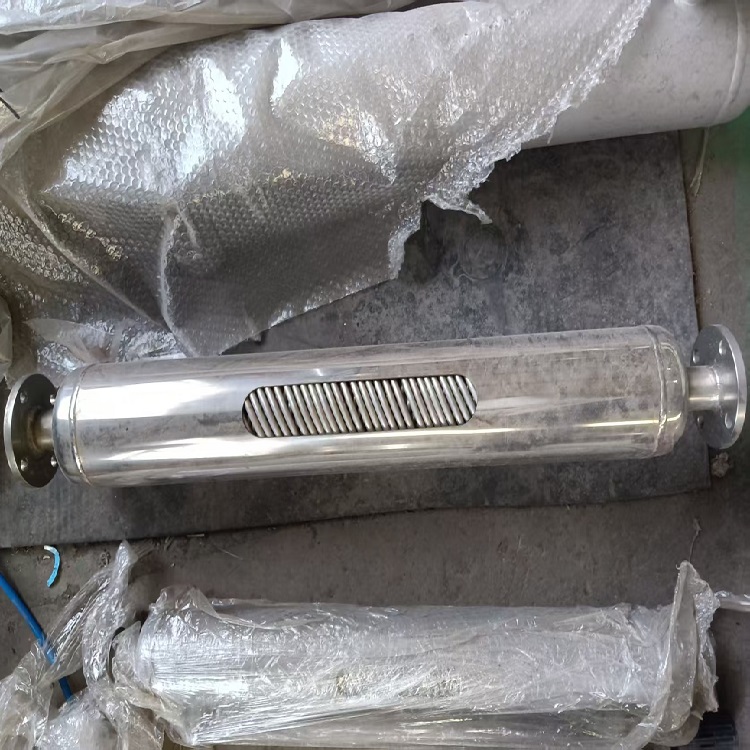

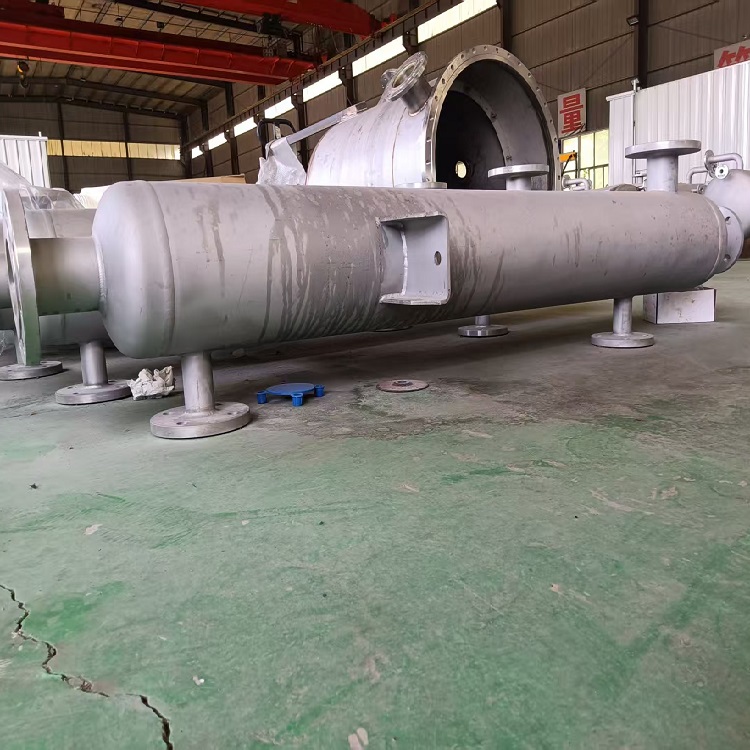

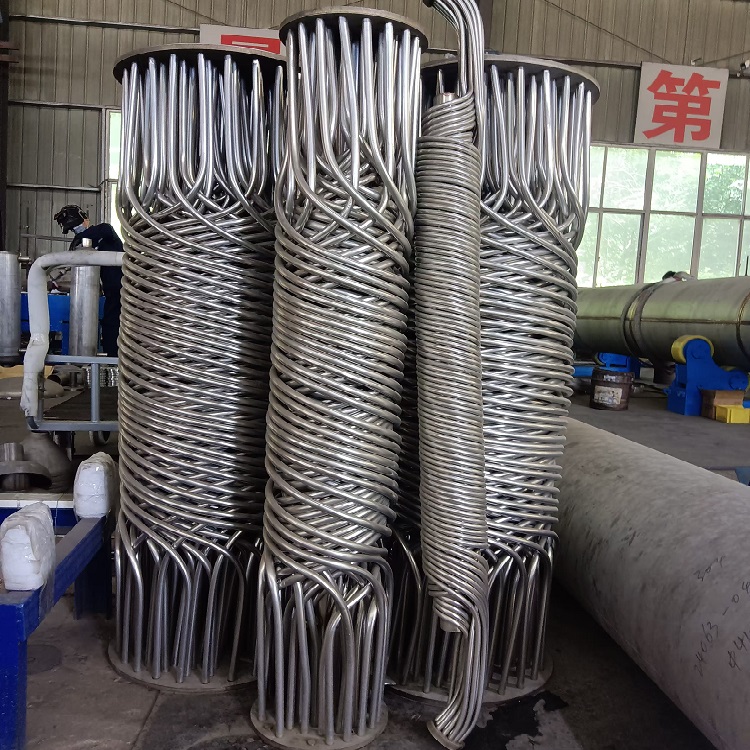

Coiled tube heat exchangers offer unparalleled advantages over conventional shell and tube heat exchangers, with a wide operating temperature range, resistance to thermal shock and stress, and high compactness. Due to their unique construction, they ensure a fully developed flow field with no dead zones. Particularly, by setting up multiple tube passes (shell side single pass), they can simultaneously exchange heat for multiple fluids within a single unit.

A spiral heat exchanger is an efficient and compact heat exchanger that not only utilizes waste heat but also plays a crucial role in energy conservation and environmental protection. The structure of the heat exchanger is complex, with high construction costs, and it is located in a critical part of the facility.

Coiled Tube Heat Exchanger Advantages:

1. Compact structure with a larger heat transfer area per cubic volume. For heat transfer pipes with a diameter of 8~12mm, the heat transfer area per cubic meter can reach 100~170 square meters.

2. Can conduct heat transfer across multiple media simultaneously.

3. The operating pressure within the pipe is high, with the highest operating pressure abroad reaching over 2000 MPa.

4. The heat expansion of the heat transfer tube can be self-compensated.

5. Heat exchangers are easily scalable for large-scale development.
