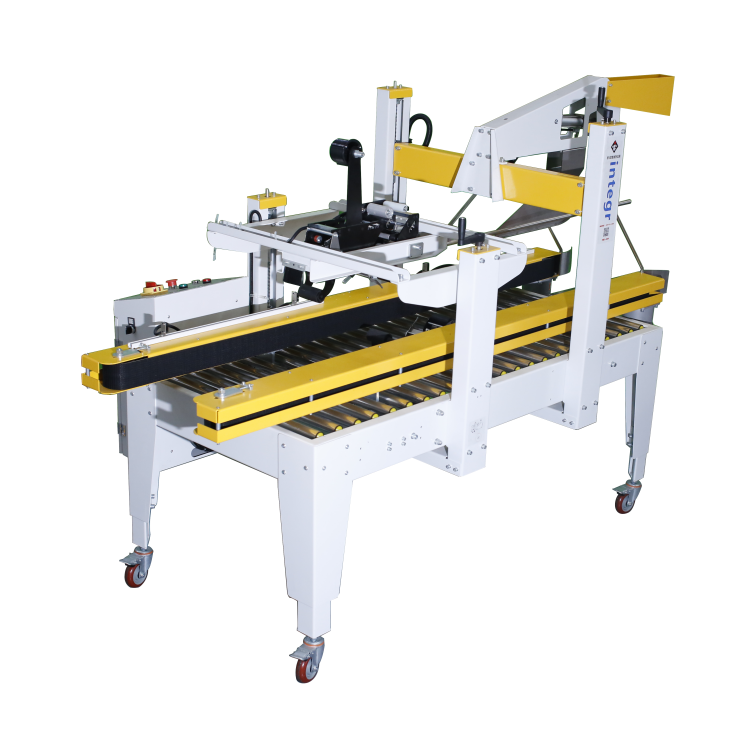

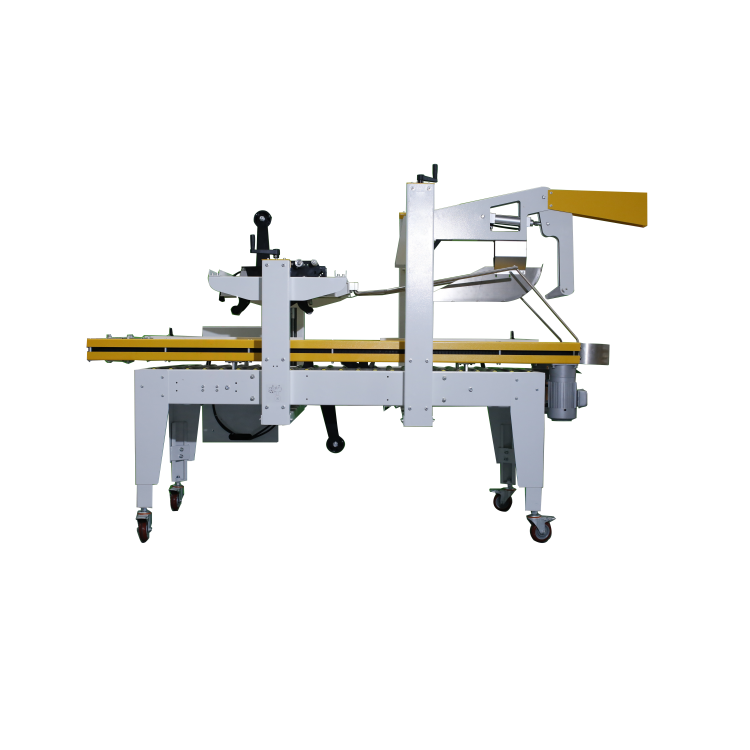

Fully Automatic Folding & Sealing Box Machine

Introduction: The product adds automatic scanning and recognition functionality while completing the folding and sealing of the box. It automatically adjusts the sealing width based on the size of the box to avoid jamming issues caused by irregular box shapes. The equipment requires no manual operation and is typically used in conjunction with production lines. Width, height, and countertop height are customizable, widely applied in industries such as chemical fibers, textiles, home appliances, and food.

Parameters: Device Dimensions: L2000mm x W920mm x H1800mm

Desk surface height: 650-800mm

PLC: Delta

Low-voltage electrical appliances: Chint / Mingwei

Pneumatic Components: Airtac

Sealing Width: 140mm - 500mm

Sealing Height: 180mm-520mm

Applicable Tape: W48-72mm

Sealing Speed: 15m/min

Applicable Power Supply: 220V, 50Hz

Power: 400W

Gas Source Requirement: 0.5-0.6 MPa, Flow Rate: 200 L/min

Advantages: Easy to operate, economical and durable, safe, low failure rate.

High efficiency, with sealing speeds up to 10-15 boxes per minute (varies by box size).

The box width adjusts automatically; no manual adjustment is required.

Good compatibility; manually adjustable for box height and size.

This machine can operate independently or be used with automatic packaging lines and other equipment.

Suitable for packaging products across various industries including household appliances, textiles, food, daily necessities, pharmaceuticals, light industry, and chemicals.
