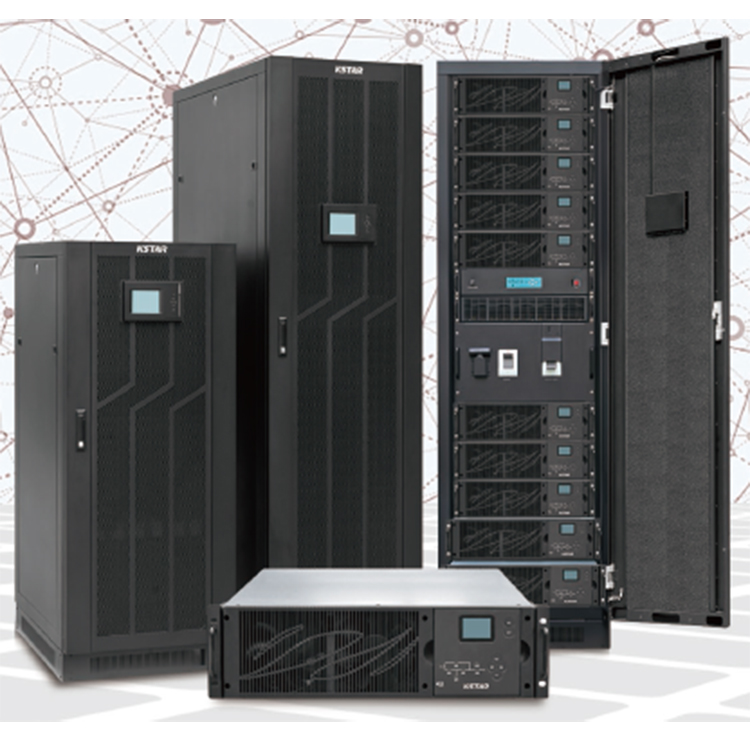

Operation Mode: Single Input/Single Output / Three Inputs/Single Output High Frequency Online; Power Range: 6kVA to 100kVA; Product Core Features:

Digital Control

All components are controlled digitally, ensuring a more stable and reliable control system.

19-inch standard rack

Utilize 19-inch standard cabinet design

High-power density modular design

Single module capacity: 6kVA/10kVA, all modules are 3U in height. A cabinet 1.4 meters tall can accommodate up to 5 modules, while a 2-meter tall cabinet can hold up to 10 modules. Systems from 6 to 100kVA are composed of 1 to 10 modules in parallel. Hot-plugging technology is used between modules and cabinets.

Support parallel cabinet connection

Supports cabinet parallel connection, up to 4 cabinets can be connected in parallel.

N+X Parallel Redundancy

The number of redundant modules can be set at will. When the number of redundant modules reaches two or more, the system's availability reaches 99.999%, with an MTBF (Mean Time Between Failures) of over 250,000 hours.

Control system redundancy

Each module is equipped with an independent control system. The UPS module independently controls based on shared information, and the faulty module automatically disconnects from the system.

Distribution Hub Cabinet

Distribution Convergence System Layout

Parallel Battery Usage

When multiple UPS modules or cabinets are paralleled, they can share a battery bank.

Battery voltage can be customized to any specification.

Single Input/Single Output or Triple Input/Single Output 192-240Vdc (16-20 options available)

Smart Charging Method

Users can set the charging current, and the constant current, constant voltage, and floating charge charging modes can automatically and smoothly switch.

Optional battery module, rack-mounted battery cabinet

Standard 3U battery module design, single battery module configuration with up to 18pcs 7AH or 9AH batteries; customizable cabinet-style battery cabinet available with the same appearance style as the host

LCD Display

Large LCD display in the cabinet with touch function, available in Chinese/English bilingual options. Single module LCD/LED display

Easy maintenance

Complete unit with maintenance bypass feature, easy to maintain

EPO Function

EPO Emergency Shutdown Function

Smart Management

RS232/RS485 communication interfaces, SNMP card (optional), relay card (optional), centralized monitoring module with hot-swapping capability
