Performance Features

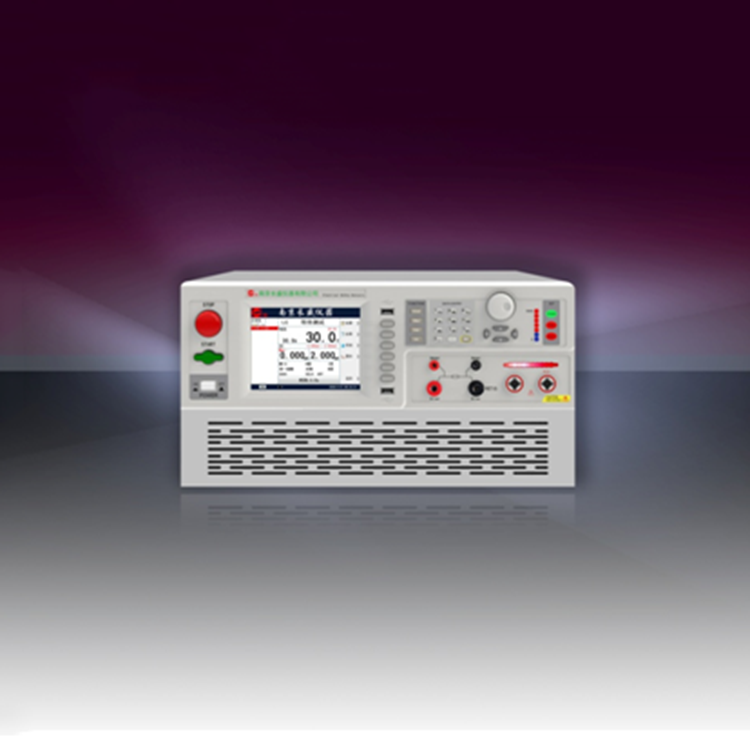

The 5.6-inch TFT (640*480) display settings and test parameters are adopted, ensuring clear and rich display content.

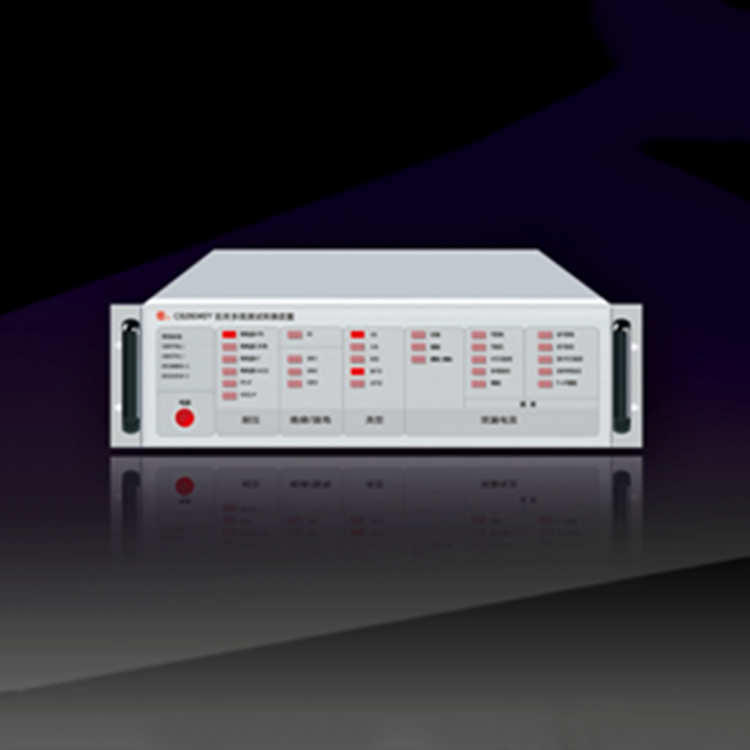

The optional CS26045Y can be configured to form a multi-channel safety integrated testing system.

The tester can automatically save the test results in the format of an Excel spreadsheet to a USB drive.

Software updates can be performed using a USB drive.

Leakage current test meets human body network standards.

Leakage current offers four detection methods: AC, AC+DC, PEAK, and DC.

The leak test can measure the MD terminal voltage, no external voltmeter is required, meeting the relevant testing requirements.

Leakage executable single fault test.

Leakage tests can be performed with polarity reversal without cutting off the power supply.

Leakage test provides auxiliary power supply required for testing, meeting the requirement of 10uA for small leakage current.

The high-voltage indicator is not controlled by the main controller; it directly indicates the size of the output port voltage, featuring a rapid voltage rise time (within 100ms) for the automatic stable control system.

Standard with PLC interface, optional RS485 interface.

Applicable Standards: GB9706.1-2020 (IEC60601-1), GB4793.1-2007 (IEC61010-1).

Meets inspection regulations: JJG1188-2022, JJG843-2022.
