Polymer Lithium-ion Battery, also known as Polymer Lithium Battery or Lithium Polymer Battery, Polymer Battery.

It is a product defined for the outer shape of lithium battery casings, distinct from cylindrical stainless steel and square aluminum shell batteries.

The composition unit is a polymer lithium battery cell, which uses aluminum foil as the outer casing for packaging the cell. It contains a positive and negative electrode membrane, electrodes, separator, and electrolyte. The battery cell is formed by rolling or stacking the positive and negative electrode membranes. After high-temperature baking, aging, and static setting, the lithium battery cell is produced.

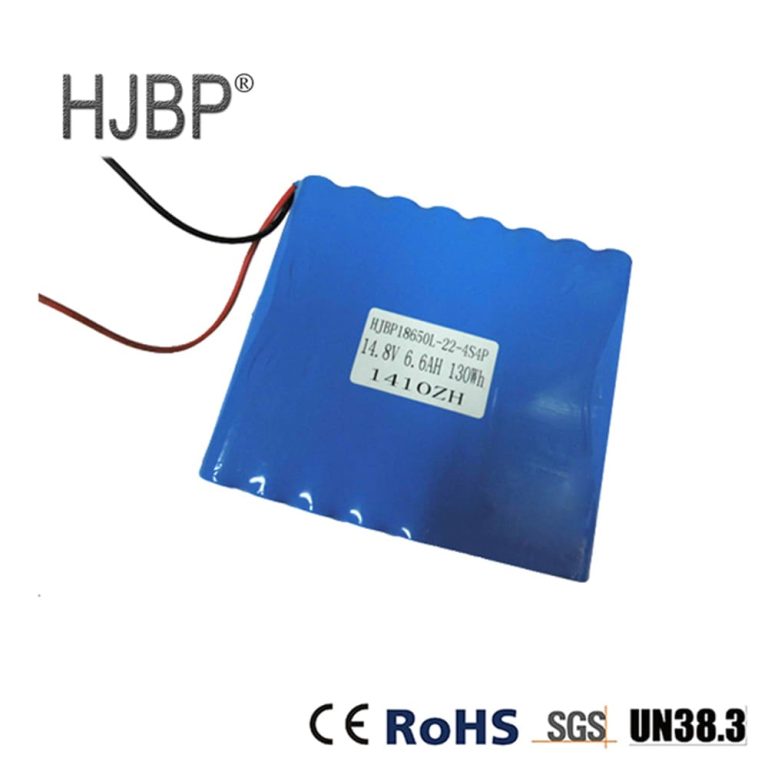

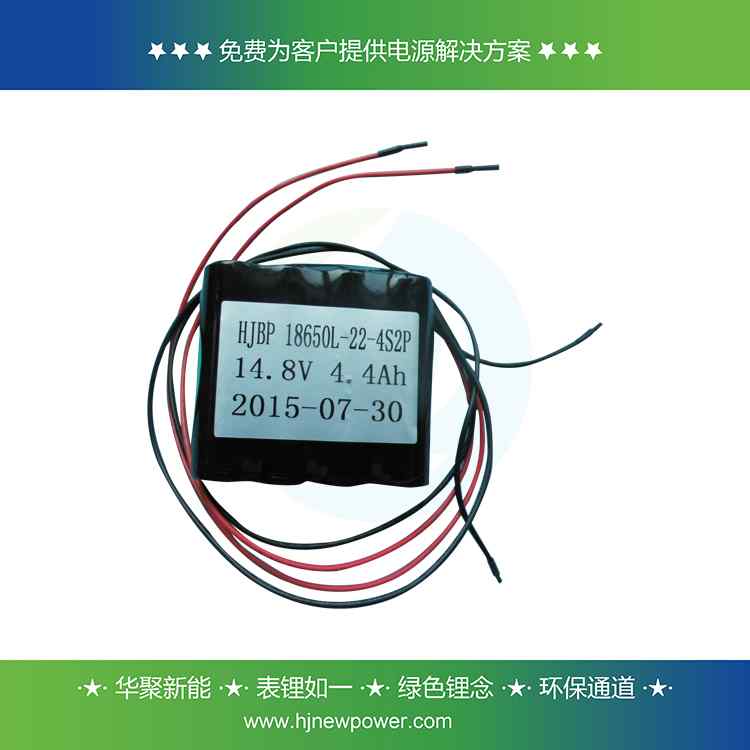

By paralleling and串联 the cells, adding a dedicated lithium battery protection board, power cable clips, connector plugs, and more, we can Parker (PACK) together the lithium battery packs in the voltage capacities you require.

Some companies in the industry use a series of numbers to name their models, while others start with "LP" (lithium polymer) followed by a series of numbers to differentiate between different models, voltages, and capacities. Some use "PL" (Polymer Lithium) as the name, and in the early days, there were also names like "PLB" (polymer lithium battery) and "LIB" (lithium ion battery). Adding the letters N, C, M, F, T further distinguishes the main materials, with these letters representing ternary lithium, lithium cobalt oxide, lithium manganese oxide, lithium iron phosphate, and lithium titanate, respectively.

Based on different materials, they can be categorized into cobalt acid lithium batteries, manganese acid lithium batteries, nickel cobalt manganese (nickel cobalt aluminum) ternary lithium batteries, and lithium iron phosphate batteries.

Based on different discharge rates, they can be categorized into digital polymer batteries and medium to high discharge rate polymer lithium-ion batteries. The discharge rate for digital applications typically ranges from 0.2C to 0.5C, up to 1C. For medium to high discharge rate polymer lithium-ion batteries, continuous discharge usually exceeds 3C, with current technology achieving up to 75C.

According to different application scenarios, they can be categorized into digital, industrial instrument, energy storage, power, and automotive categories.

Based on the single cell rated voltage platform, lithium-ion batteries with ternary polymers are categorized into normal and high voltage (3.8V-3.85V), with corresponding charging cut-off voltages of 4.2V and 4.35V.

Based on the discharge temperature range, they are divided into standard (-20 ~ +60°C), low temperature (-40 ~ +60°C), and high temperature (-20 ~ +85°C).

Based on shape, they can be categorized into regular (rectangular, square) and irregular (long strip, round, semi-circular, triangular, bent, ultra-thin, coin-shaped, etc.).

Based on capacity size ranges, they can be categorized as small capacity polymers (10-1000mAh), standard capacity polymer lithium-ion batteries (1000mAh ~ 100000mAh), large capacity polymer lithium-ion batteries (10Ah+), with most agricultural drone capacities at 16Ah, 22Ah, and even higher. The capacity of lithium iron phosphate energy storage batteries has reached 300Ah+.

The Huajujin New Energy team of engineers can provide you with a suitable polymer lithium battery power solution tailored to your needs. With various partners offering different advantages in polymer cells, Huajujin New Energy can save you time and costs.
