High-frequency hot melt machines are used for sealing hot melt of medical PVC blood collection bag tubes.

Suitable for blood transfusion departments, blood bank collection and component departments, blood banks, and medical research institutions at all levels.

Operating Principle:

The high-frequency electrode on the hot melt head inductively heats the PVC pipeline at a high frequency, causing the PVC pipeline to reach a molten state (the PVC material conduit polarizes under the high-frequency electric field) while the hot melt electrode presses the molten section tightly.

Upon reaching the preset time, complete one heat-sealing operation as programmed.

Product Advantages:

Utilizing a transistor high-frequency generator with a filter shielding design, radiation is minimal.

2. Multi-voltage protection, mature and stable circuitry, long service life.

3. The hot-molding process is fully automated, eliminating the need for manual adjustment of hot-molding time.

4. User-friendly design, compact, lightweight, easy to move, and simple to operate.

5. No preheating required, quick bonding, suitable for mobile blood collection tube sealing.

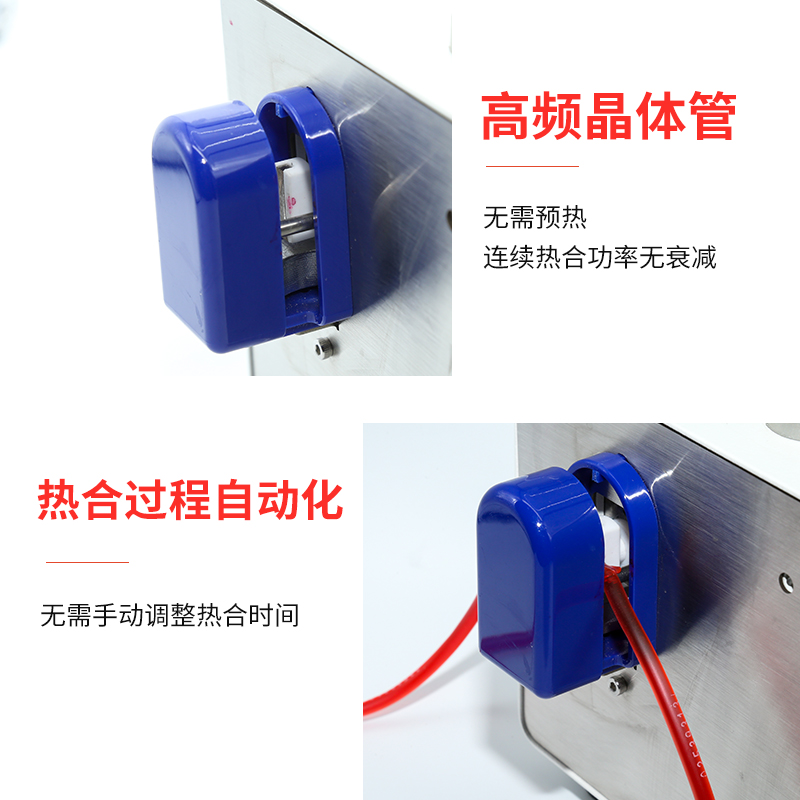

6. The hot-melt head is pre-drilled with a slot-like incision, allowing for easy hand-separation after hot-melt bonding.

7. Safety-effective splash protection device, easy-to-clean design.

8. Ceramic sealing head design with flat sealing surface, preventing bleeding.

9. Wide voltage design, compatible with global voltages, comes with various country-standard plugs.

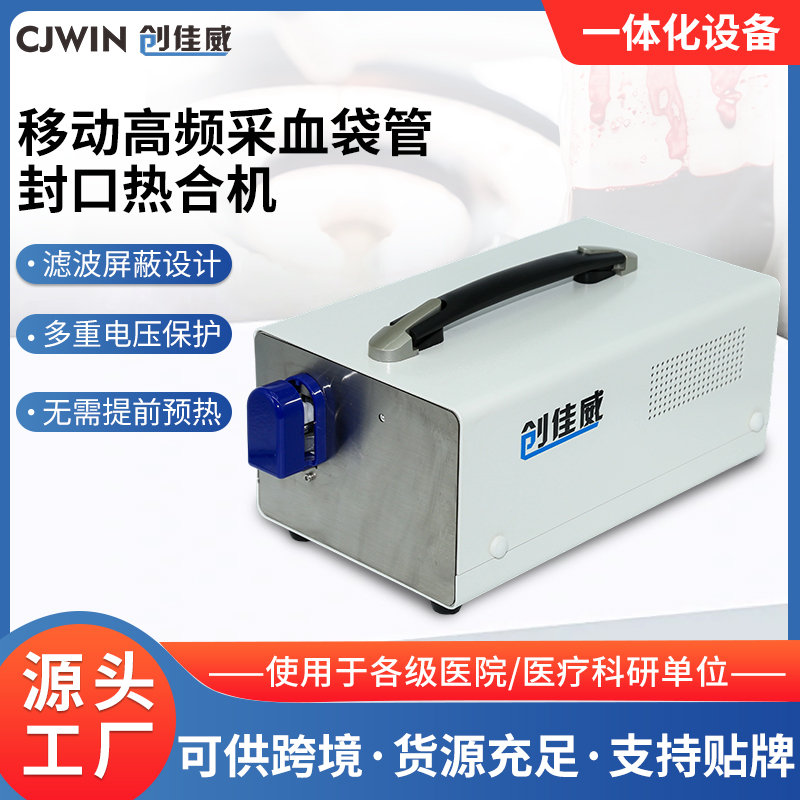

Model FR-6.0

Power Supply: AC Single Phase, 100V ~ 260V, 50Hz/60Hz, 5A

High-Frequency Output, Frequency 40.68MHz

Power: Operating: 150W / Standby: 3W

Bonding Time: 1 ~ 2.5s

Suitable materials: PE or PVC, outer diameter 2mm to 6mm, wall thickness ≤1.5mm

Dimensions: Depth 355mm x Width 180mm x Height 175mm ±3%

Packaging dimensions: Depth 470mm x Width 260mm x Height 280mm

Net Weight/Gross Weight (inclusive of packaging)6.5kg / 7kg
