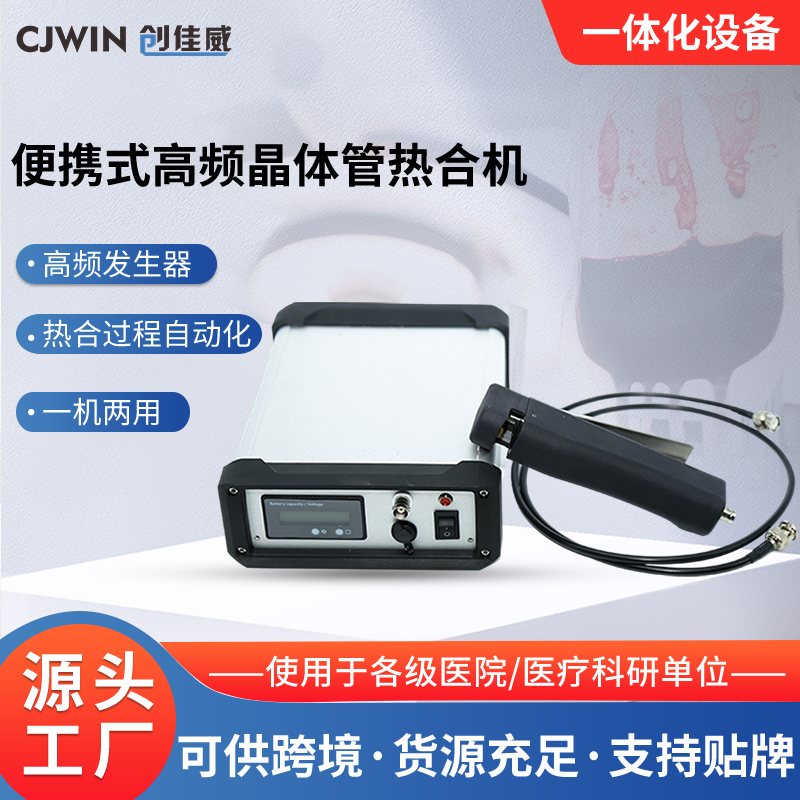

Product Application: Heat-sealed capillary tubes for blood bags.
Application Scope: Primarily suitable for blood transfusion departments in various hospitals, blood stations' body collection and component departments, blood banks, and medical research institutions.
Operation Principle: The hot bar applies high-frequency induction heating to the PVC pipeline via high-frequency electrodes, causing the PVC pipeline to reach a molten state (the PVC material conduit polarizes under the high-frequency electric field) while the hot bar electrode presses the molten section. According to the preset program, a hot fusion is completed after the predetermined time.
1. Instrument Category: Original Domestic Brand
2. RF Source Type: High-frequency Transistor
3. Tube sealing time: 1~2.5s
4. Heat-seal hose diameter: 2-7mm
5. Operating Frequency: ≤40.68MHz
6. Sealing RF (Radio Frequency) Power: ≤30W
7. Handle Heat Sealing Head: Ceramic insulated heat sealing electrode, to prevent hemolysis from occurring.
8. Heat Sealing Width Adjustment: Automatically identifies different profiles and thicknesses of pipelines to adjust the heat sealing power, and can also manually adjust the heat sealing surface width as needed.
9. Battery Type: Integrated lithium iron battery, ensuring long-term power supply for the device, high safety, worry-free for long-distance transportation.
10. Instrument Profiles: Aluminum alloy profiles are used to manufacture instrument frames and protective baffles, offering lightweight, shock-resistant, and collision-resistant properties.
11. Radiation Protection Safety: Ensures a low radiation level close to zero under operation at 40.68MHz frequency, with a filter shielding design guaranteeing safety.
12. Heat Dissipation System: The entire machine material is environmentally friendly and safe, producing no harmful gases. It features a triple heat dissipation mode with an aluminum shell and heat sinks, along with fans, to ensure continuous operation for over 8 hours.
13. Status Indicator: Green (Standby), Red (Sealing)
14. Portable Convenience: User-friendly design, compact size, lightweight, easy to move, and simple operation.
15. Dimensions: Depth 205mm x Width 145mm x Height 55mm
16. Weight: ≤4 kg
17. Operating Temperature Range: 0℃ - 40℃
18. Power Consumption: Operating: ≤150W; Standby: ≤3W
19. Voltage Range: AC 110-260V, 50Hz/60Hz
20. Power Protection: Multi-voltage protection device with an internal abnormal current fuse, ensuring machine safety remains intact in case of unexpected situations.
21. Certified with ISO9001, CE, and others.
22. Performance stable, with over 50 customers nationwide; provide a list of users to guarantee authenticity.
23. Wide voltage design, compatible with global voltages, with available plug standards for various countries.
