In the LED display industry, the power distribution cabinet, as one of the core components, directly impacts the stability and lifespan of the display due to the large instantaneous current during startup, which can easily stress the power grid. Therefore, for displays with power exceeding 10KW, it is essential to equip them with a dedicated intelligent power distribution cabinet for LED displays.

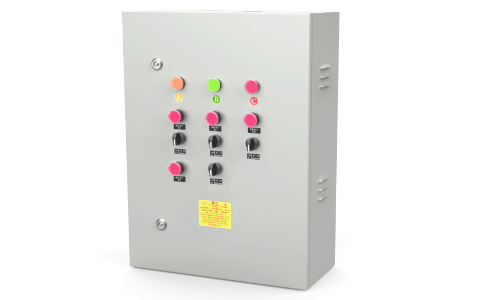

This product features an indoor shell with a total load power of 40KW, capable of connecting 12 single-phase electrical equipment lines (such as display circuit, air conditioning circuit, fan circuit); it offers overcurrent and short-circuit protection, manual power on/off, and PLC power on/off functions. The standard circuit breaker is a Delixi product, while the contactor is a Schneider product. The PLC power supply uses Mervic's high-reliability industrial-grade products, and the controller employs Omron/IPMS/Siemens PLC products. It is equipped with RS232/TCP/IP communication, allowing for connection to a central control system for intercontrol; it helps you quickly and conveniently monitor external data of the LED display system and remotely control the intelligent power supply. The system is based on the B/S architecture and is compatible with multiple platforms, including Windows, Linux, Android, Hongmeng, and Kirin, etc. operating systems.

• Key Features

1.All models feature two-level protection; the input circuit breaker is a molded-case circuit breaker, and the output circuit breaker is a miniature circuit breaker. 2. Supports PLC remote real-time monitoring and management of the power system.

3.Manual, PLC remote, timed automatic control, power failure

4.Standard with overcurrent and short-circuit protection

5.Different colored indicator lights differentiate the phase line power-in status.

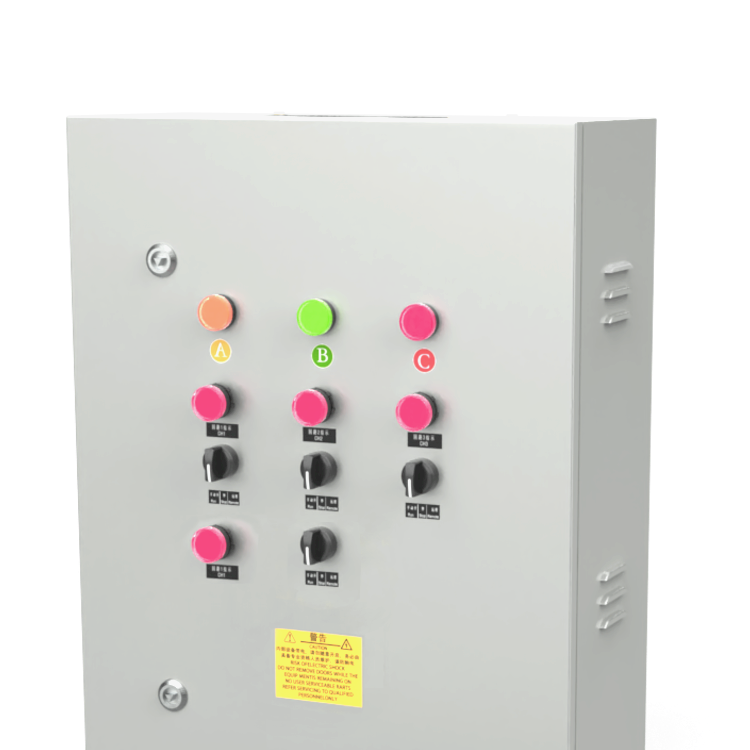

6.Manual, Stop, Automatic - three-position panel control switch.

7.All critical components are made with internationally renowned brand components; all cables are selected with national standard copper cables, and all cables are terminated with purple copper terminals, with each cable having a 20% or more safety margin in the box.

8. Multi-channel automatic step-by-step graded power-on delay.

9. Products are designed and manufactured in accordance with national standards, featuring unique reinforcement in the shell design and utilizing sheet metal with a thickness of 1.2mm or more, coated with paint.

10. All systems are pre-set with various plans. When used online, remote monitoring of the power cabinet's status is possible, and when used offline, automatic implementation of the plan logic联动 is achieved.

11．All models are equipped with test sockets and lighting control circuits with leakage protection.

12.The system is cross-platform compatible, supporting Windows, Linux, Android, Hongmeng, Kylin, and other operating systems.

• Technical Specifications

• Application

Command center, conference rooms, multi-functional halls, exhibition halls, etc., powered by LED screens.

• After-sales Service

1One-year free warranty and lifetime technical support.

• Packaging

Standard cardboard box packaging.

• Utilize Information

Be sure to read the product manual carefully before use.

• Cautionary Notes

This product contains high voltage; it must be terminated and maintained by a technician with professional electrical qualifications.
