In the LED display industry, the power distribution cabinet, as one of the core components, directly impacts the stability and lifespan of the display due to the large amount of switching power supplies and the high current surge upon startup. Since such displays are prone to causing grid surges, it is advisable to equip displays with a power rating exceeding 10KW with a dedicated intelligent power distribution cabinet for LED displays.

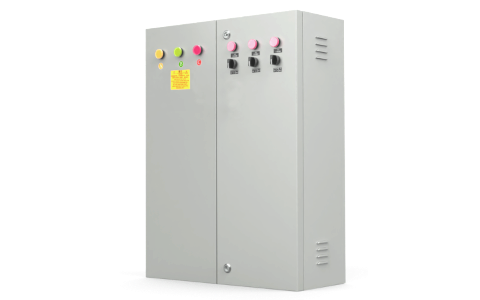

This product features an indoor housing with a total load power of 60KW, capable of connecting 18 single-phase electrical devices (such as display circuit, air conditioning circuit, fan circuit). It offers overcurrent and short-circuit protection, manual power-up, PLC power-on, and power-off functions. The standard circuit breaker is a Delixi product, and the contactor is a Schneider product. PLC power supply utilizes Mingwei's high-reliability industrial-grade products, with controllers from Omron, IPMS, or Siemens PLCs. It comes with RS232 and TCP/IP communication capabilities, allowing for integration with central control systems for联动 control. It assists in quick and convenient external data monitoring of LED display systems and remote intelligent power control. The system is built with a B/S architecture, compatible with multiple platforms and operating systems including Windows, Linux, Android, HarmonyOS, and others.

• Feature Highlights

1.All models feature dual protection; the input circuit breaker is a plastic case circuit breaker, and the output circuit breaker is a miniature circuit breaker. 2. Supports PLC remote real-time monitoring and management of the power system.

3.Manual, PLC remote, timer automatic control, power off

4.Standard with overcurrent and short-circuit protection

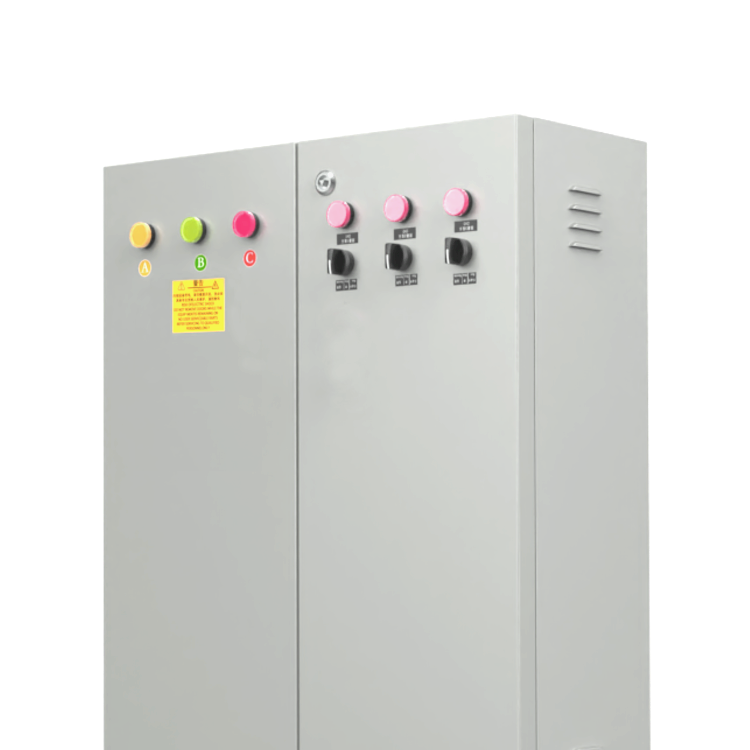

5.Different color indicator lights differentiate the phase line power input status.

6.Manual, Stop, Automatic – three-position panel control switch.

7.All critical components are made with internationally renowned brand components; cables are all selected with national standard copper cables, and all cables are crimped with紫铜 terminals, with each cable having a 20% or more safety margin in the box.

8. Multi-channel step-by-step sequential power-on delay.

9. Products are designed and manufactured in accordance with national standards, featuring unique reinforcement in the shell design and made from sheet metal with a thickness of 1.2mm or more, coated with plastic.

10. All systems are pre-set with various contingency plans. When used online, they allow for remote monitoring of the electrical cabinet's power status, while offline use can automatically execute the contingency plan logic.

11All models are equipped with circuit breakers for leakage protection and lighting control circuits in the inspection outlets.

12.The system is cross-platform compatible, supporting Windows, Linux, Android, HarmonyOS, Kirin, and more operating systems.

• Technical Specifications

• Usage

Command center, conference rooms, multi-functional halls, exhibition halls, etc., powered by LED screens.

• After-Sales Service

1One-year free warranty, lifetime technical support.

• Packaging

Standard corrugated box packaging.

• Utilize Information

Please read the product user manual thoroughly before use.

• Cautionary Notes

This product contains high voltage; it must be terminated and maintained by a technically qualified electrician with professional credentials.
