In the LED display industry, the distribution box, as one of the core components, directly affects the stability and lifespan of the display due to the large startup current of the screens, which are powered by numerous switching power supplies. It's prone to impact the power grid. Therefore, for displays with power exceeding 10KW, a dedicated intelligent distribution box for LED screens should be provided.

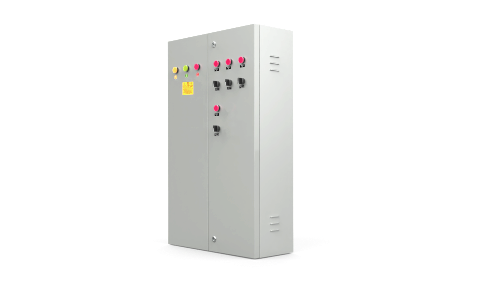

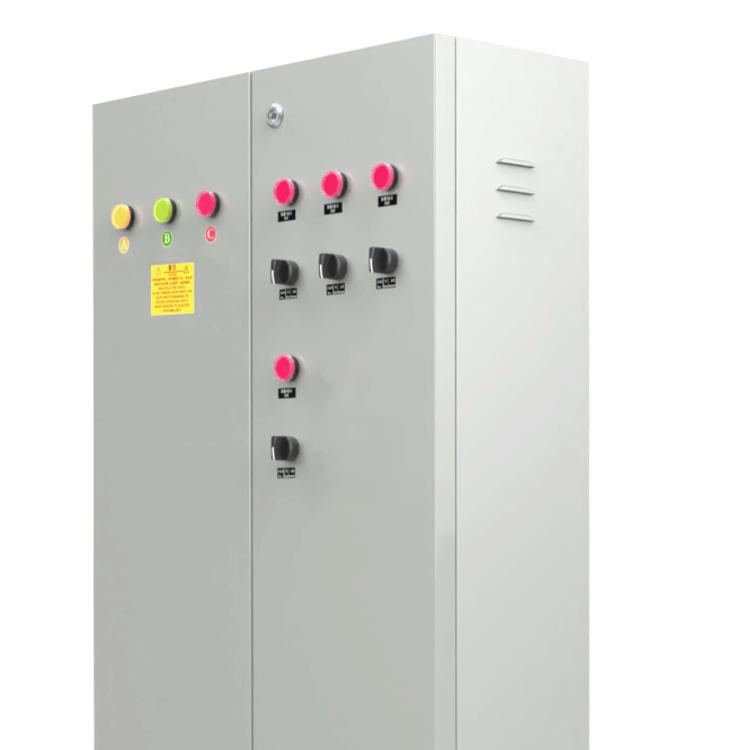

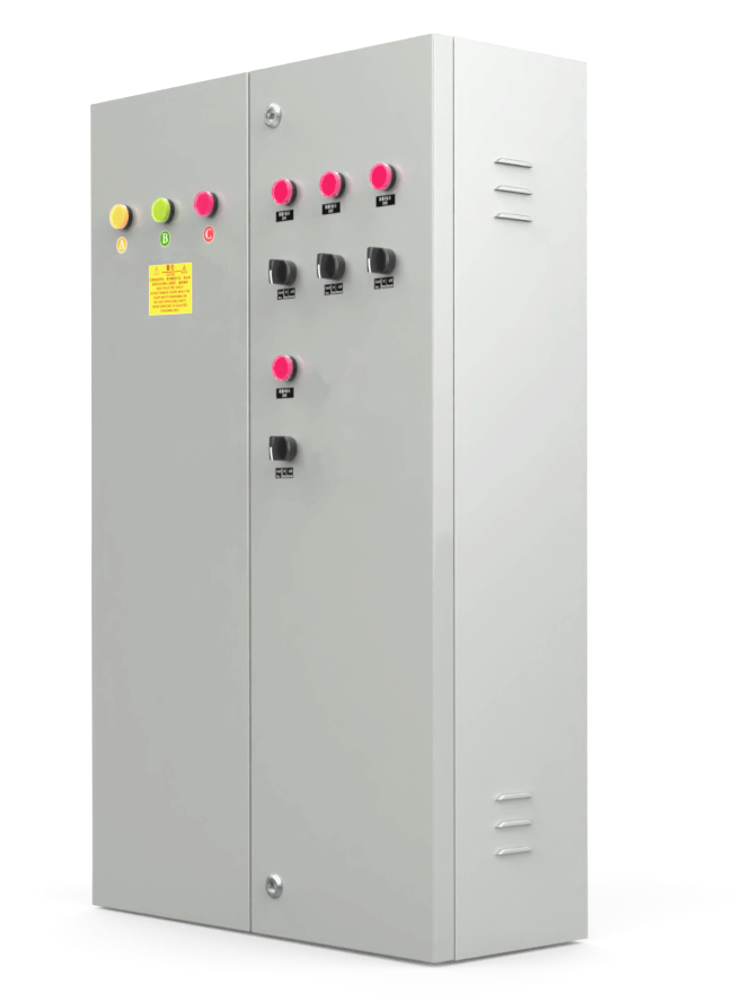

This product features an indoor shell with a total load power of 80KW, capable of connecting 24 single-phase electrical equipment (such as display circuit, air conditioning circuit, fan circuit); it offers overcurrent and short-circuit protection, and can manually switch power on/off, as well as PLC-powered on/off functions. The standard circuit breaker is a Delixi product, while the contactor is a Schneider product. The PLC power supply utilizes Mingwei's high-reliability industrial-grade products, with controllers from Omron, IPMS, and Siemens PLCs. It is equipped with RS232/TCP/IP communication, allowing integration into central control systems for联动 control; it facilitates quick and convenient external data monitoring and remote intelligent power control for LED display systems. The system is built on the B/S architecture and is compatible with multiple platforms, including Windows, Linux, Android, Hongmeng, Kirin, and more operating systems.

• Features

1.All models feature dual protection; the input circuit breaker is a plastic case circuit breaker, and the output circuit breaker is a miniature circuit breaker. 2. Supports PLC remote real-time monitoring and management of the power system.

3.Manual, PLC remote, timed automatic control, power failure

4.Standard overcurrent and short-circuit protection

5.Different colored indicator lights distinguish the phase line's power input status.

6.Manual, Stop, Automatic, three-position panel control toggle switch.

7.All critical components are manufactured using internationally renowned brand components; all cables are selected from national standard copper cables, and all cables are terminated with purple copper terminals. The cable diameters inside the box have a safety margin of over 20%.

8. Multi-channel automatic step-by-step sequential power-on delay.

9. Products are designed and manufactured in accordance with national standards, featuring unique reinforcement in the shell design and made of sheet metal with a thickness of 1.2mm or more, electroplated with paint.

10. All systems are pre-set with various contingency plans. When used online, they allow for remote monitoring of the electrical cabinet's power status, and when used offline, they can automatically execute the contingency plan logic.

11．All models are equipped with inspection sockets with leakage protection and lighting control circuits.

12.The system is cross-platform compatible, supporting Windows, Linux, Android, HarmonyOS, Kylin, and more operating systems.

• Technical Specifications

• Application

Command center, conference rooms, multi-functional halls, exhibition halls, etc., powered by LED screens.

• After-sales service

1One-year free warranty, lifetime technical support.

• Packaging

Standard cardboard box packaging.

• Utilize Information

Be sure to read the product manual thoroughly before use.

• Cautionary Notes

This product contains high voltage; it must be terminated and maintained by a technician with professional electrical qualifications.
