In the LED display industry, the power distribution cabinet, as one of the core components, directly impacts the stability and lifespan of the display due to the high current surge during startup, which can easily stress the power grid. For displays with power over 10KW, a dedicated intelligent power distribution cabinet for LED displays should be used.

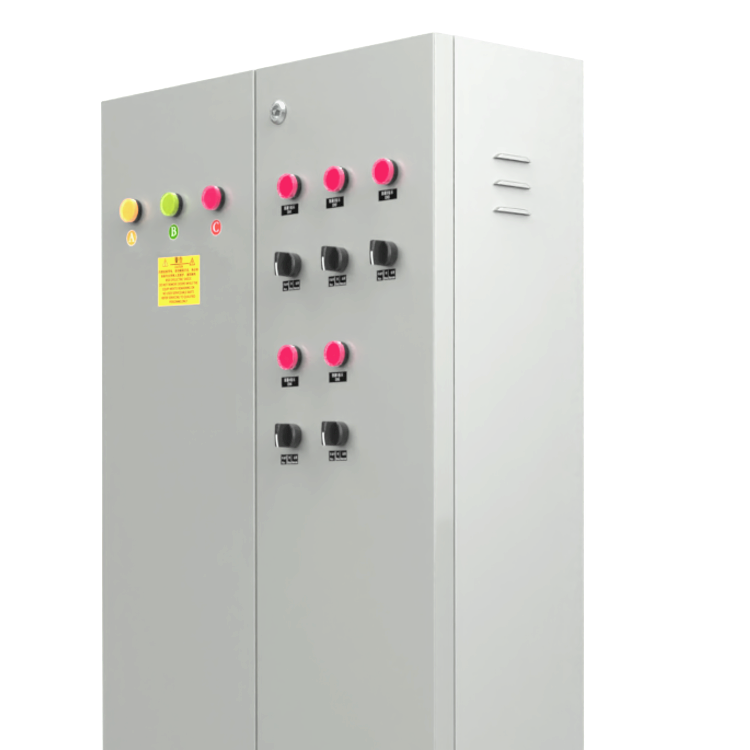

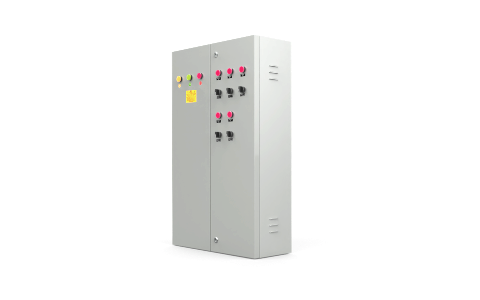

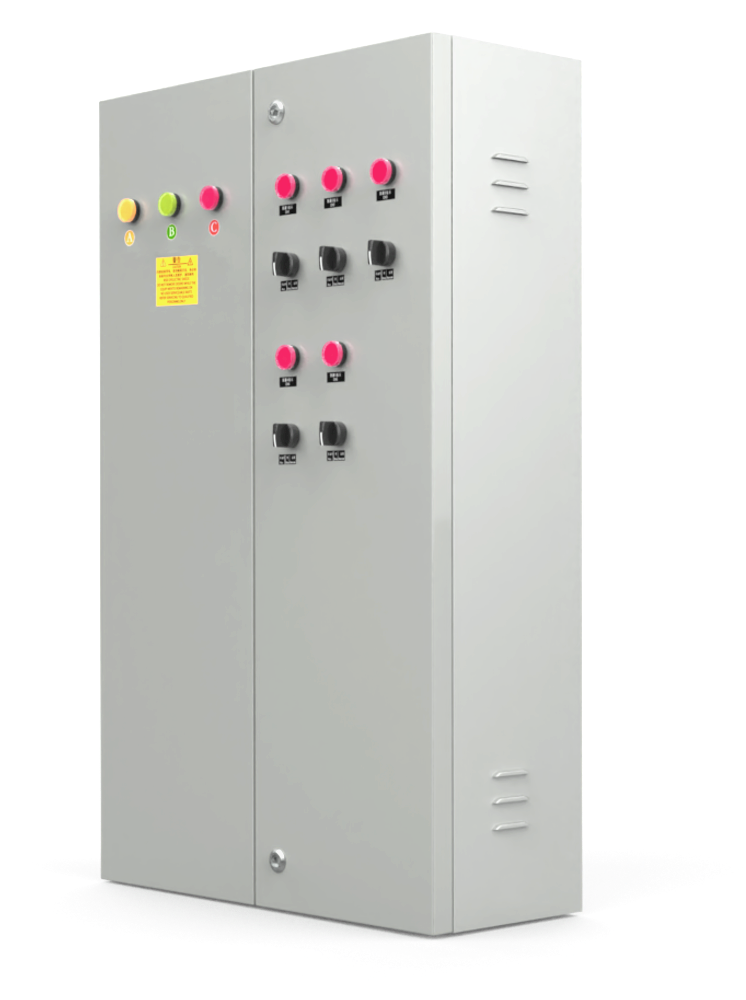

This product features an indoor shell with a total load power of 100KW, capable of connecting 30 single-phase electrical equipment circuits (such as display loop, air conditioning loop, fan loop); it provides overcurrent and short-circuit protection, and supports manual power on/off and PLC-controlled power on/off functions. The standard circuit breaker is a Delixi product, while the contactor is a Schneider product. The PLC power supply utilizes Mingwei's high-reliability industrial-grade products, with controllers from Omron, IPMS, and Siemens PLCs. It is equipped with RS232/TCP/IP communication, allowing for integration into central control systems for联动 control; it facilitates rapid and convenient external data monitoring of LED display systems and remote intelligent power control. The system is built on a B/S architecture, enabling cross-platform compatibility with Windows, Linux, Android, Hongmeng, and other operating systems.

• Feature highlights

1.All models feature two-level protection; the input circuit breaker is a molded case circuit breaker, and the output circuit breaker is a miniature circuit breaker. 2. Supports PLC remote real-time monitoring and management of the power system.

3.Manual, PLC remote, timed automatic control, power-off

4.Standard overcurrent and short-circuit protection

5.Different color indicator lights differentiate the phase line power input status.

6.Manual, Stop, Automatic, three-position panel control switch.

7.All critical components are manufactured using internationally renowned brand components; all cables are made of national standard copper cables, and all cables are terminated with purple copper terminals. The wire diameters inside the box have more than 20% safety margin.

8. Multi-channel step-by-step sequential power-on delay.

9. Products are designed and manufactured in accordance with national standards, featuring unique reinforcement in the shell design and made of sheet metal with a thickness of 1.2mm or more, then powder-coated.

10. Fully pre-set with various plans, it can remotely monitor the power status of the electrical cabinet when used online, and automatically execute the plan logic联动 when used offline.

11All models are equipped with circuit breakers for safety and lighting control circuits.

12.The system is cross-platform compatible, supporting Windows, Linux, Android, HarmonyOS, Kirin, and more operating systems.

• Technical Specifications

• Application

Command center, conference rooms, multi-functional halls, exhibition halls, etc., powered by LED screens.

• After-Sales Service

1One-year free warranty, lifetime technical support.

• Packaging

Standard cardboard box packaging.

• Utilize Information

Always read the product manual thoroughly before use.

• Cautionary Notes

This product contains high voltage; it must be terminated and maintained by a technician with professional electrical qualifications.
