In the LED display industry, the power distribution cabinet, as one of the core components, directly impacts the stability and lifespan of the display due to the high instantaneous current during startup, which can easily cause a surge in the power grid. Therefore, for displays with power exceeding 10KW, it is essential to equip them with a dedicated intelligent power distribution cabinet for LED displays.

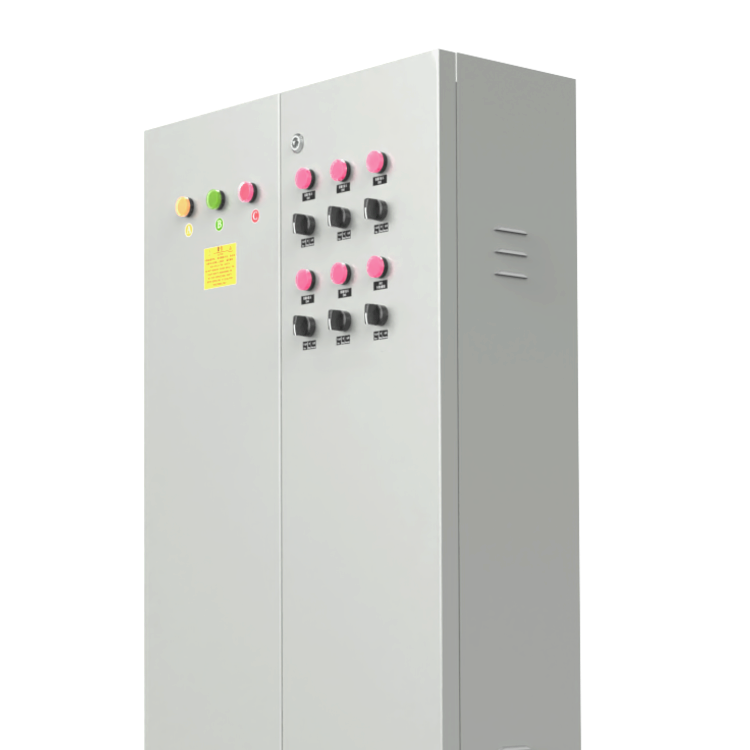

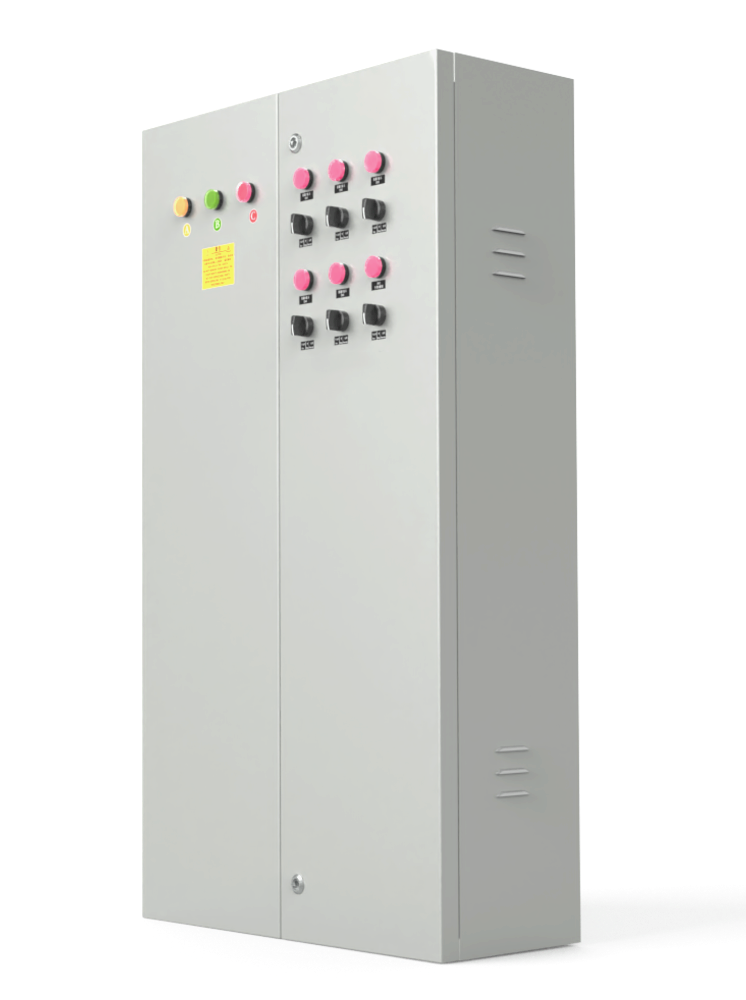

This product features an indoor shell with a total load power of 110KW, capable of connecting 33 single-phase electrical equipment lines (such as display circuit, air conditioning circuit, fan circuit); it offers overcurrent and short-circuit protection, manual power on/off, and PLC power on/off functions. The standard circuit breaker is a Delixi product, while the contactor is a Schneider product. The PLC power supply uses a high-reliability industrial-grade product from Mingwei, and the controller employs Omron/IPMS/Siemens PLC products. It is equipped with RS232/TCP/IP communication, allowing for connection to a central control system for integrated control; it helps you quickly and conveniently monitor external data of the LED display system and remotely control the intelligent power supply. The system is based on the B/S architecture and is compatible with multiple platforms, including Windows, Linux, Android, Hongmeng, and Kirin, and more operating systems.

• Features

1.All models feature dual protection; the input circuit breaker is a molded case circuit breaker, and the output circuit breaker is a miniature circuit breaker. 2. Supports PLC remote real-time monitoring and management of the power system.

3.Manual, PLC remote, timed automatic control on, power-off

4.Standard overcurrent and short-circuit protection

5.Different color indicator lights differentiate the phase line power input status.

6.Manual, stop, and automatic, three-position panel control toggle switch.

7.All critical components are made with internationally renowned brand electronic components; all cables are selected with national standard copper cables, and all cables are terminated with brass connectors. The cable diameters inside the box have more than a 20% safety margin.

8. Multi-channel automatic step-by-step graded power-on delay.

9. Products are designed and manufactured in accordance with national standards, featuring unique reinforcement in the shell design and made of sheet metal with a thickness of 1.2mm or more, electroplated with paint.

10. All systems are pre-set with various contingency plans. When used online, remote monitoring of the power cabinet's power status is available, and when used offline, the plans can automatically trigger logical联动.

11．All models are equipped with test sockets with leakage protection and lighting control circuits.

12.The system is cross-platform compatible, supporting Windows, Linux, Android, HarmonyOS, Kylin, and more operating systems.

• Technical Specifications

• Application

Command center, conference rooms, multi-functional halls, exhibition halls, etc., powered by LED screens.

• After-sales service

1One-year free warranty, lifetime technical support.

• Packaging

Standard corrugated box packaging.

• Utilize Information

Always read the product manual carefully before use.

• Cautionary Notes

This product contains high voltage; it must be terminated and maintained by a technician with professional electrical qualifications.
