In the LED display industry, the power distribution cabinet, as one of the core components, directly impacts the stability and lifespan of the display due to the large instantaneous current during startup, caused by the numerous switching power supplies. Since it can easily create a shock to the power grid, for displays with power over 10KW, it is necessary to equip with a dedicated intelligent power distribution cabinet for LED displays.

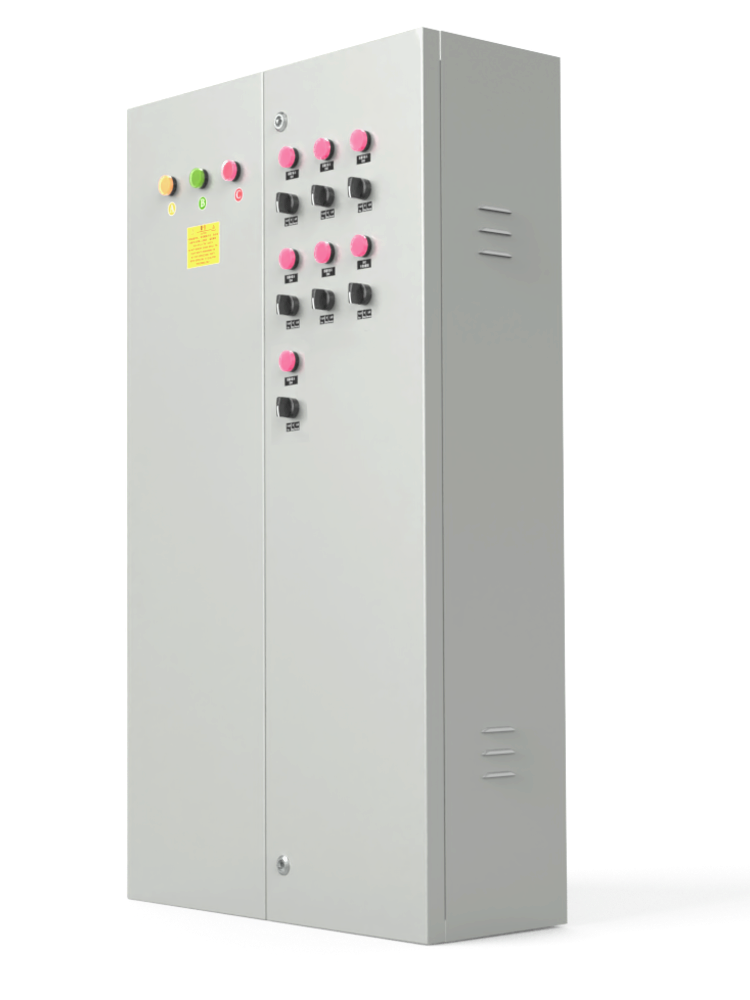

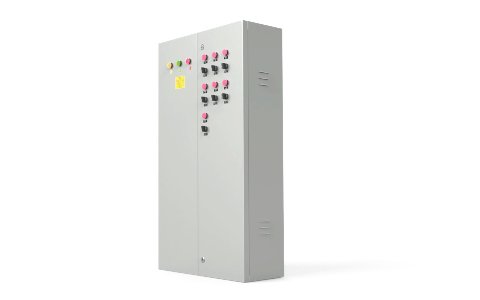

This product features an indoor shell with a total load power of 130KW, capable of connecting 39 single-phase electrical equipment lines (such as display circuit, air conditioning circuit, fan circuit); it offers overcurrent and short-circuit protection, manual power on/off, and PLC power on/off functions. The standard circuit breaker is a Delixi product, while the contactor is a Schneider product. The PLC power supply uses a high-reliability industrial-grade product from Mingwei, and the controller employs Omron/IPMS/Siemens PLC products. It is equipped with RS232/TCP/IP communication, allowing for connection to a central control system for intercontrol; it helps you quickly and conveniently monitor external data of the LED display system and remotely control the intelligent power supply. The system is based on the B/S architecture and is compatible with multiple platforms, including Windows, Linux, Android, Hongmeng, and Kirin, etc. operating systems.

• Key Features

1.All models feature dual protection; the input circuit breaker is a plastic-case circuit breaker, and the output circuit breaker is a miniature circuit breaker. 2. Supports PLC remote real-time monitoring and management of the power system.

3.Manual, PLC remote, timer automatic control, power-off

4.Standard with overcurrent and short-circuit protection

5.Different color indicator lights distinguish the phase line's power supply status.

6.Manual, Stop, Automatic - three-position panel control switch.

7.All critical components are made with internationally renowned brand components; all cables are selected with national standard copper cables, and all cables use purple copper terminals for termination, with 20% or more safety margin for wire diameters inside the box.

8. Multi-channel step-by-step delayed power-on.

9. Products are designed and manufactured in accordance with national standards, featuring unique reinforcement in the shell design and using sheet metal with a thickness of 1.2mm or more, then powder-coated.

10. All systems are pre-set with various contingency plans. When used online, they allow for remote monitoring of the power cabinet's status, and when used offline, they can automatically execute the contingency plan logic.

11All models are equipped with test sockets with RCD protection and lighting control circuits.

12.The system is cross-platform compatible, supporting Windows, Linux, Android, HarmonyOS, Kylin, and more operating systems.

• Technical Specifications

• Usage

Command center, conference rooms, multi-functional halls, exhibition halls, etc., powered by LED screens.

• After-sales Service

1One-year free warranty, lifetime technical support.

• Packaging

Standard corrugated box packaging.

• Utilize Information

Please read the product manual thoroughly before use.

• Cautionary Notes

This product contains high voltage; it must be terminated and maintained by a technician with professional electrical qualifications.
