In the LED display industry, the power distribution cabinet, as one of the core components, directly impacts the stability and lifespan of the display due to the high current surge during startup, caused by the large number of switching power supplies. As such, for displays with power over 10KW, a dedicated intelligent power distribution cabinet for LED displays should be installed.

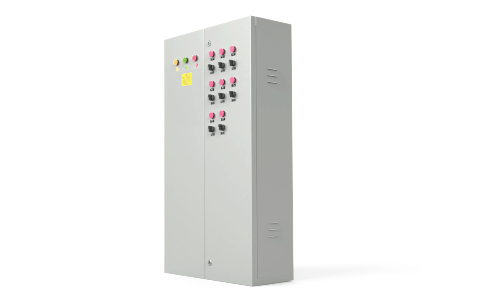

This product features an indoor shell with a total load power of 160KW, capable of connecting 48 single-phase electrical equipment (such as display circuit, air conditioning circuit, fan circuit); it offers overcurrent and short-circuit protection, manual power on/off, and PLC power on/off functions. The standard circuit breaker is a Delixi product, while the contactor is a Schneider product. The PLC power supply uses a high-reliability industrial-grade product from Mingwei, and the controller employs Omron/IPMS/Siemens PLC products. It is equipped with RS232/TCP/IP communication, allowing for connection to a central control system for integrated control; it aids in quick and convenient external data monitoring of LED display systems and remote intelligent power control. The system utilizes the B/S architecture and is compatible with multiple platforms, including Windows, Linux, Android, Hongmeng, and Kirin, among others.
Feature Highlights
1.All models feature two-level protection; the input circuit breaker is a plastic case circuit breaker, and the output circuit breaker is a miniature circuit breaker. 2. Supports PLC remote real-time monitoring and management of the power system.
3.Manual, PLC remote, timed automatic control, power-off
4.Standard with overcurrent and short-circuit protection

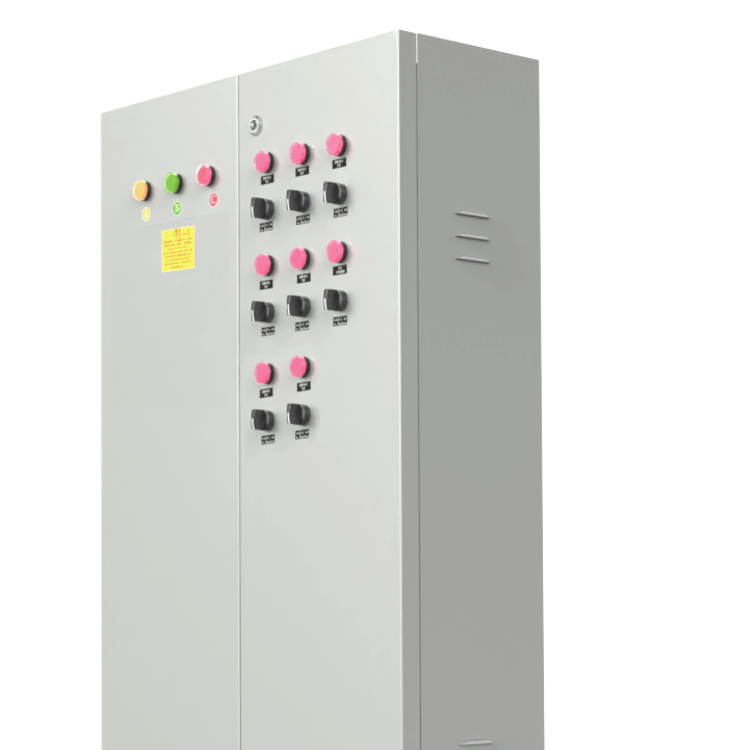

5.Different color indicator lights differentiate the phase line power supply status.
6.Manual, Stop, Automatic - three-position panel control toggle switch.
7.All critical components are made with internationally renowned brand components; all cables are selected with national standard copper cables, and all cables are terminated with copper terminals, with each cable inside the box having a safety margin of over 20%.
8. Multi-channel step-by-step power-on with progressive delay.
9. Products are designed and manufactured in accordance with national standards, featuring unique reinforcement in the shell design and sheet metal with electroplated coating of 1.2mm or thicker.
10. All systems are pre-set with various contingency plans. When used online, remote monitoring of the power cabinet's power status is available, and when used offline, the plans can automatically trigger logical联动.
11．All models are equipped with circuit breakers and lighting control circuits.
12.The system is cross-platform compatible, supporting Windows, Linux, Android, HarmonyOS, and more operating systems.
Technical Specifications
Rated Capacity | 160KW |
Output Circuit | 48Single-phase circuit |
Number of output channels | Eight channels |
Input and Output Voltage | Input 3-phase 5-wire system 380V, output single-phase 220V |
Rated output power per channel | ≤3.5KW |
Up, power-off control method | Manual/PLC Remote/Timer Automatic |
Short circuit and overload protection | Available |
Up, power-off control method | Manual/PLC Remote/Timer Automatic |
Step-by-step, graded power-on delay | Available |
Schedule task to turn on/off power | 8Timer switch group Each channel can be set to different times depending on the load equipment (such as screens, air conditioners, computers, audio systems), supporting daily and weekly settings. |
Remote power on | Available |
Logical联动控制 Logical联动control | Available |
Central Control | Available |
Contact Information | TCP/IPNetwork/RS232/RS485 |
Environmental Status Monitoring | Status Anomaly Alert |
Input method | Line can be entered from both sides |
Housing dimensions | 700mm*1500mm*250mm |
Usage
Command center, conference rooms, multi-functional halls, exhibition halls, etc., powered by LED screens.
After-sales Service
1One-year free warranty, lifetime technical support.
Packaging
Standard cardboard box packaging.
Utilize Information
Always read the product manual carefully before use.
Cautionary Notes
This product contains high voltage; it must be terminated and maintained by a technician with professional electrical qualifications.
