LEDIn the display screen industry, the power distribution cabinet, as one of the core components, directly impacts the stability and lifespan of the display screens. Since LED screens are powered by a large number of switching power supplies, the screen's startup瞬间 carries a high current, which can easily create a surge in the power grid. Therefore, for screens with power exceeding 10KW, a dedicated intelligent power distribution cabinet for LED screens should be provided.

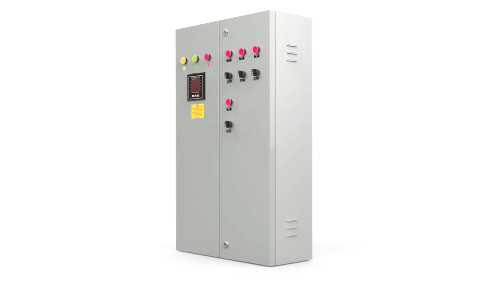

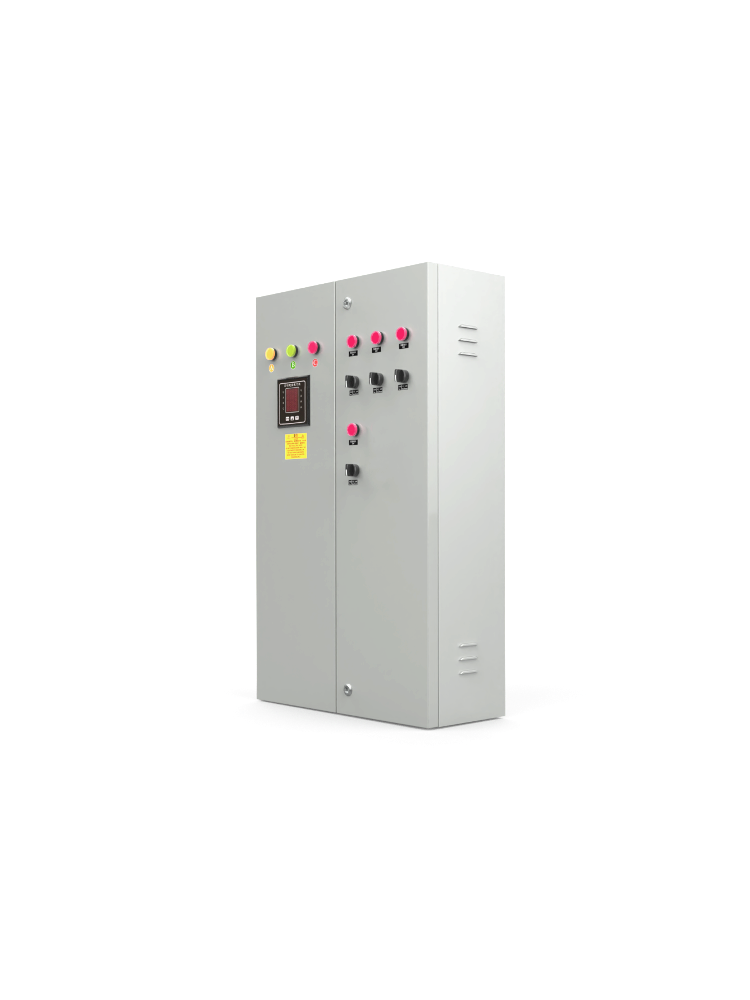

This product features an indoor shell, with a total load power of 70KW, capable of connecting 21 single-phase electrical equipment (such as display circuit, air conditioning circuit, fan circuit); it offers multiple protections including overcurrent and short-circuit protection. It supports manual power-up, PLC power-up, and shutdown functions. The standard circuit breaker is a Delixi product, while the contactor is from Schneider Electric. PLC power supply uses high-reliability industrial-grade products from Mingwei. The controller employs Omron/IPMS/Siemens PLC products. It is equipped with RS232/TCP/IP communication, allowing connection to central control systems for integrated control; and features ports for smoke, temperature, and other sensors. It enables quick and convenient external data monitoring of LED display systems, and can initiate alarms for cabinet, LED display over-temperature, smoke, and intrusion via pre-set programs. It can automatically and intelligently protect and control with threshold settings, enabling unattended operation. The system is based on the B/S architecture and is compatible with multiple platforms, including Windows, Linux, Android, Hongmeng, Kirin, and more operating systems.
Feature highlights
1.All models feature dual protection; the input circuit breaker is a molded case circuit breaker, and the output circuit breaker is a miniature circuit breaker.
2. Supports PLC remote real-time monitoring and management of power systems.
3.Manual, PLC remote, timed automatic control, power-off available.
4.Standard with overcurrent and short-circuit protection.
5.Different color indicator lights distinguish the phase line power input status.
6.Manual, Stop, Automatic - three-position panel control toggle switch.
7.All critical components are manufactured with internationally renowned brand components; all cables are made of national standard copper cables, and all cables are terminated with purple copper terminals, with a 20% or more safety margin for the cable diameter inside the box.
8.Select power-on state after power outage to ensure stable operation of the equipment upon power restoration.
9.Standard features include circuit status detection, current and voltage monitoring, overload protection, under-voltage and under-current protection, intrusion protection, smoke protection, electrical cabinet over-temperature protection, LED screen over-temperature protection, and linkage protection, among various protective functions.
10. Multi-channel step-by-step automatic sequential power-on delay.
11.Supports 8 groups of scheduled task automatic control and management.
12. Products are designed and manufactured in accordance with national standards, featuring unique reinforcement in the housing design and are made of sheet metal with a thickness of 1.2mm or more, electroplated for added durability.
13. All systems are pre-set with various contingency plans. When used online, remote monitoring of the power cabinet's status is possible, and when used offline, the plans can automatically trigger logical联动.
14．Standard equipment includes circuit test sockets with leakage protection and lighting control circuits.
15.The system is cross-platform compatible, supporting Windows, Linux, Android, HarmonyOS, Kylin, and more operating systems.
Technical Specifications
Rated Capacity | 70KW |
Output Circuit | 21Single-phase circuit |
Number of output channels | Four-channel |
Input/Output Voltage | Input 3-phase 5-wire 380V, output single-phase 220V |
Rated Output Power per channel | ≤3.5KW |
Up, Power Off Control Method | Manual/Remote/Scheduled Auto |
Short circuit and overload protection | Available |
Stepwise and staged power-on delay | Available |
Schedule to turn on/off power | 8Group Timer Switch Each channel can be set to different times based on the load equipment (such as displays, air conditioners, computers, audio systems), supporting daily and weekly settings. |
Remote Power-On | Available |
Logical联动控制 | Available |
Central Control | Available |
Communication Methods | TCP/IPNetwork/RS232/RS485 |
Environmental Status Monitoring | Status Anomaly Alert |
Loop Status Detection | Available |
Utility power interruption and reconnection status detection | Available |
Temperature and Humidity Testing | Available |
Current and Voltage Detection | Available |
Under-voltage and over-voltage protection | Available |
Smoke Alarms, Protection | Available |
Display Over-Temperature Alarm & Protection | Available |
Over-temperature power-off protection for electrical distribution box | Available |
Interlock protection | Available |
Entry Method | Accessible from both sides |
Housing dimensions | 600mm*800mm*200mm |
Usage
Command centers, conference rooms, multifunctional halls, exhibition spaces...and other compact venues, LED display power supply.
After-Sales Service
1One-year free warranty, lifetime technical support.
Packaging
Standard cardboard box packaging.
Utilize Information
Be sure to read the product manual thoroughly before use.
Cautionary Notes
This product contains high voltage; it must be terminated and maintained by a technician with professional electrical qualifications.
