LEDIn the display screen industry, as one of the core components, the performance and reliability of the distribution cabinet directly affect the stability and lifespan of the display screens. Since LED displays are powered by a large number of switching power supplies, the body's instant current surge upon startup can easily impact the power grid. Therefore, for displays with power over 10KW, a dedicated smart distribution cabinet for LED screens should be provided.

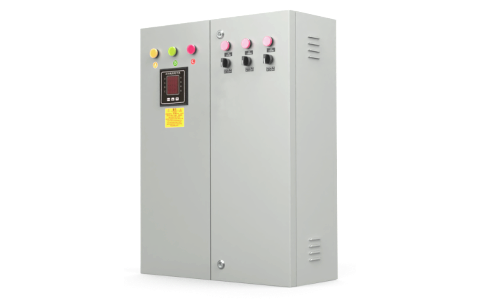

This product features an indoor shell with a total load power of 30KW, capable of connecting 9 single-phase electrical equipment circuits (such as display loop, air conditioning loop, fan loop). It offers multiple protections including overcurrent and short-circuit protection, and can manually switch off power, power on via PLC, and shut off power. The standard circuit breaker is a Delixi product, while the contactor is a Schneider product. The PLC power supply utilizes a high-reliability industrial-grade product from Mingwei. The controller is an Omron/IPMS/Siemens PLC product. It is equipped with RS232/TCP/IP communication capabilities, allowing for connection to central control systems for integrated control. It also has ports for smoke, temperature, and other sensors. It enables quick and convenient external data monitoring of LED display systems, and can trigger alarms for overtemperature, smoke, intrusion, etc., through preset schemes. It can automatically and intelligently control protection with set thresholds, achieving unattended operation. The system is built on a B/S architecture and is compatible with multiple platforms, including Windows, Linux, Android, Hongmeng, and Kylin, among others.
Feature Highlights
1.All models feature dual protection; for input circuit breakers, we use molded case circuit breakers, and for output circuit breakers, we use miniature circuit breakers.
2. Supports PLC remote real-time monitoring and management of power systems.
3.Manual, PLC remote, timed automatic control, power failure.
4.Standard with overcurrent and short-circuit protection.
5.Different color indicator lights distinguish the phase line power supply status.
6.Manual, Stop, Automatic — three-position panel control switch.
7.All critical components are made with internationally renowned brand components; all cables are selected with national standard copper cables, and all cables use purple copper terminals for crimping. The wire diameters inside the box have more than 20% safety margin.
8.Select power-on state after a power outage to ensure stable operation of the equipment upon power restoration.
9.Standard with circuit status monitoring, current-voltage detection, overload protection, under-voltage and under-current protection, intrusion protection, smoke protection, electrical cabinet over-temperature protection, LED screen over-temperature protection, and联动 protection with multiple safety features.
10. Multi-channel step-by-step automatic sequential power-on delay.
11.Supports 8 groups of scheduled task automatic control and management.
12. Products are designed and manufactured in accordance with national standards, featuring unique reinforcement in the housing design and utilizing sheet metal with a thickness of 1.2mm or more, coated with paint.
13. All systems are pre-set with various plans. When used online, remote monitoring of the power cabinet's status is possible. In offline mode, the plans can automatically trigger logical interlock.
14．All models come standard with test sockets equipped with leakage protection and lighting control circuits.
15.The system is cross-platform compatible, supporting Windows, Linux, Android, HarmonyOS, Kirin, and more operating systems.
Technical Specifications
Rated Capacity | 30KW |
Output Circuit | 9Single-phase circuit |
Number of output channels | Three-channel |
Input and Output Voltage | Input 3-phase 5-wire 380V, output single-phase 220V |
Rated Output Power per Channel | ≤3.5KW |
Up, power-off control method | Manual/Remote/Scheduled Automatic |
Short circuit and overload protection | Available |
Step-by-step delayed power-on | Available |
Schedule power on/off tasks | 8Timer switch group Each channel can be set to different times based on the load equipment (such as monitors, air conditioners, computers, audio systems), supporting daily and weekly settings. |
Remote Power-On | Available |
Logical联动控制 | Available |
Central Control | Available |
Communication Methods | TCP/IPNetwork/RS232/RS485 |
Environmental Status Monitoring | Anomaly Alert Status |
Loop State Detection | Available |
Utility Power Interruption and Restoration Status Detection | Available |
Temperature and humidity detection | Available |
Current and voltage detection | Available |
Under-voltage and over-voltage protection | Available |
Smoke Alarms, Protection | Available |
Over-temperature alarm and protection for display screen | Available |
Over-temperature shutdown protection for electrical distribution panels | Available |
Interlock Protection | Available |
Entry Method | Line entry available from both sides |
Shell size | 600mm*800mm*200mm |
Usage
Command center, conference rooms, multi-functional halls, exhibition halls... and other compact spaces, powered by LED screens.
After-Sales Service
1One-year free warranty, lifetime technical support.
Packaging
Standard corrugated box packaging.
Utilize Information
Be sure to read the product user manual thoroughly before use.
Important Notes
This product contains high voltage; it must be terminated and maintained by a technician with professional electrician qualifications.
