In the LED display industry, the power distribution cabinet, as one of the core components, directly affects the stability and lifespan of the display screens. Due to the large amount of switch-mode power supplies feeding LED displays, the initial startup current is high, which can easily cause a surge in the power grid. Therefore, for displays with power over 10KW, it is recommended to use a dedicated intelligent power distribution cabinet for LED displays.

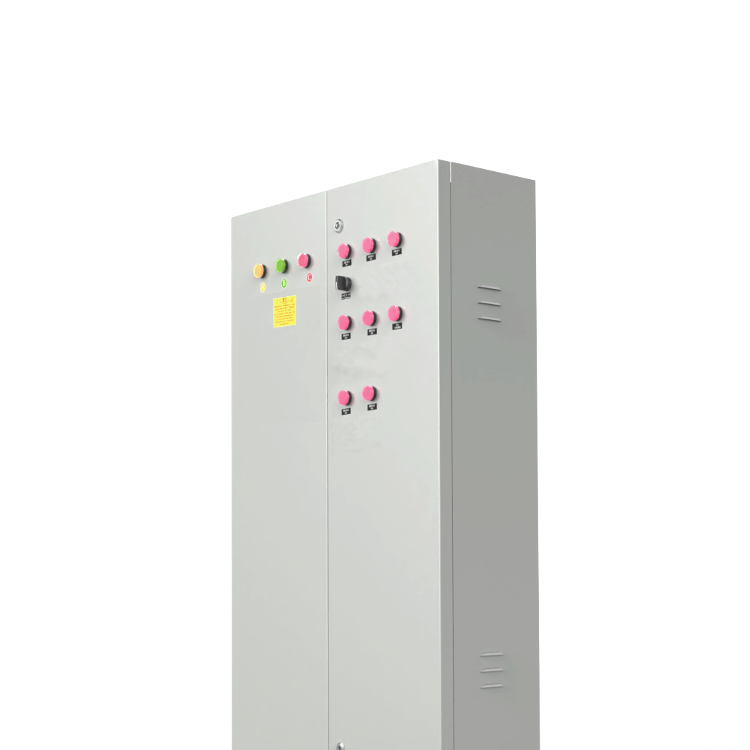

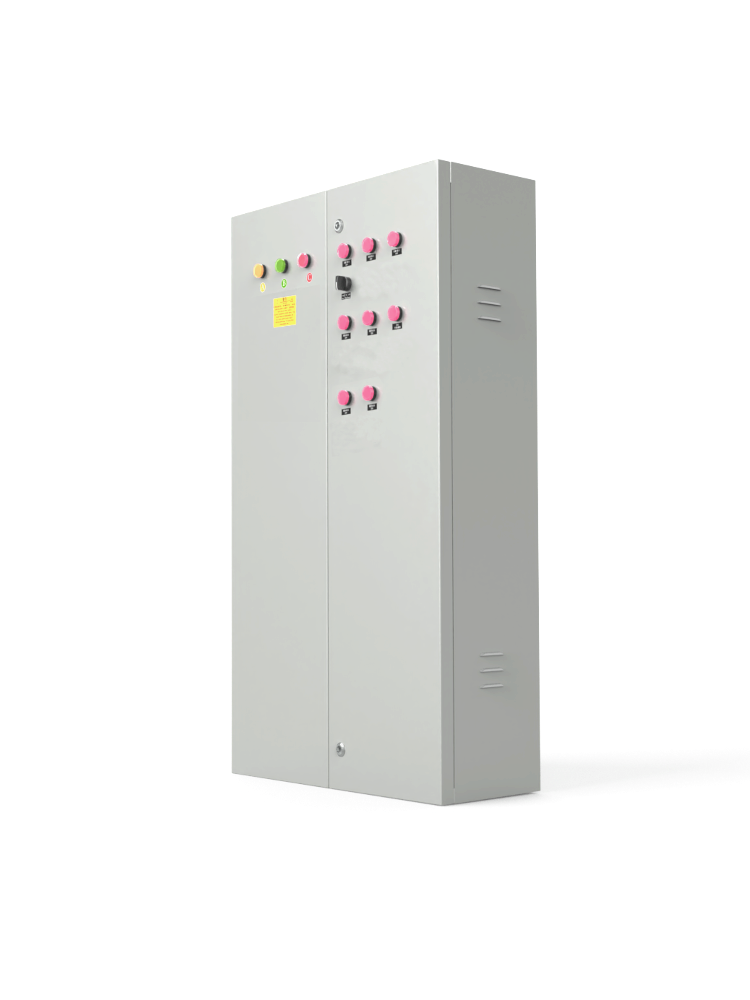

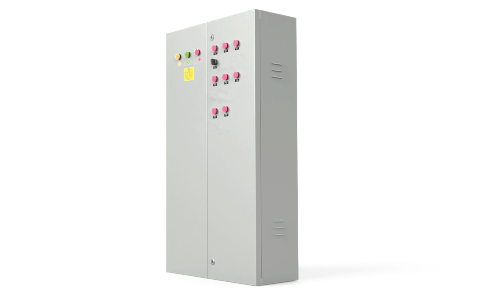

This product features an indoor shell, with a total load power of 160KW, capable of connecting 48 single-phase electrical equipment (such as display circuit, air conditioning circuit, fan circuit); it offers overcurrent and short-circuit protection, with step-by-step, graded delay for power-on. It can be manually powered on or off, scheduled for automatic power-on, and has a power-off function. The standard circuit breaker is a Delixi product, while the contactor is a Schneider product. Ensures stable system power supply.。
Features
1.All models feature dual protection; input circuit breakers are selected as molded case circuit breakers, while output circuit breakers are chosen as miniature circuit breakers.
2.Supports 16 groups of scheduled automatic operation task management.
3.You can choose between manual or timed settings for automatic on/off control.
5.Phase line power input is differentiated by sequential power indicator lights of different colors.
6.Manual, Stop, Timer, three-position panel control toggle switch.
7. Multi-channel step-by-step sequential power-on delay
8.All critical components are made with internationally renowned brand components; all cables are selected with national standard copper cables, and all cables are terminated with purple copper terminals, with each cable having a 20% or more safety margin in the box.
9. Products are designed and manufactured in accordance with national standards, featuring unique reinforcement in the housing design and using sheet metal with a thickness of 1.2mm or more, then powder-coated.
10All models are equipped with inspection outlets with leakage protection and lighting control circuits, facilitating technicians to repair the display on-site.
Technical Specifications
Rated Capacity | 160KW |
Output Circuit | 48Single-phase circuit |
Number of Output Channels | 8-channel |
Input/Output Voltage | Input 3-phase 5-wire system 380V, output single-phase 220V |
Rated Output Power per Channel | ≤3.5KW |
Timer automatic on/off | Available |
Short circuit and overload protection | Available |
Step-by-step delayed power-on | Available |
Panel control knob | Available |
Lighting Inspection Socket | Available |
Phase sequence indicator light | Available |
Entry method | Line entry is available both from above and below. |
Shell Size | 700mm*1500mm*250mm |
· Usage
Command centers, conference rooms, multi-functional halls, exhibition spaces...and other compact venues, powered by LED screens.
· After-sales service
1One-year free warranty, lifetime technical support.
· Packaging
Standard cardboard box packaging.
· Utilize Information
Please read the product manual carefully before use.
· Cautionary Notes
This product contains high voltage; it must be terminated and maintained by a technician with professional electrical qualifications.
