In the LED display industry, the power distribution cabinet, as one of the core components, directly impacts the stability and lifespan of the display due to the large instantaneous current during startup, which can easily stress the power grid. Therefore, for displays with power over 10KW, it is essential to equip them with a dedicated intelligent power distribution cabinet for LED displays.

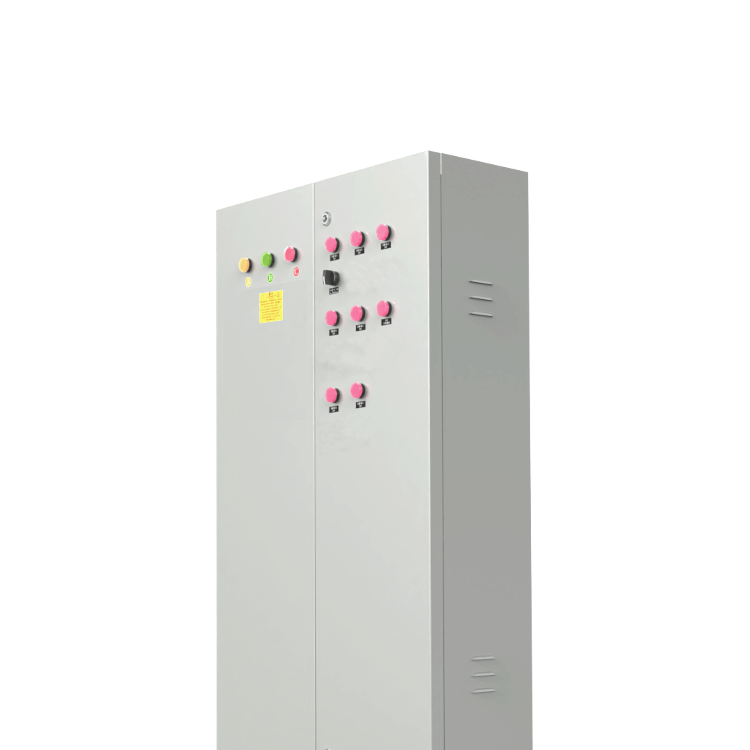

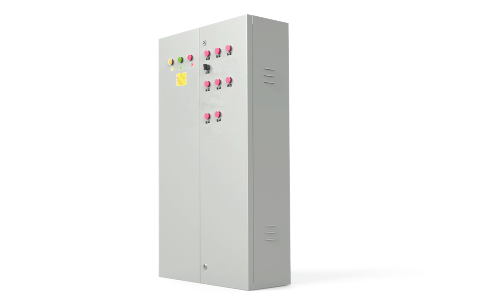

This product features an indoor housing with a total load power of 150KW, capable of connecting 45 single-phase power equipment (such as display circuit, air conditioning circuit, and fan circuit). It provides overcurrent and short-circuit protection, with step-by-step, graded delay in power-on. It offers manual power on/off, timed automatic power on/off, and power off features. The standard circuit breaker is a Delixi product, and the contactor is a Schneider product. Ensures stable system power supply.。
Feature Highlights
1.All series feature dual protection; input circuit breakers are plastic-case types, while output circuit breakers are miniaturized.
2.Supports 16 groups of timed automatic operation task management.
3.Choose between manual or timed settings for automatic control of power on and off.
5.Different color sequence power-on indicator lights distinguish the phase wires for power input.
6.Manual, Stop, Timer - three-position panel control toggle switch.
7. Multi-channel step-by-step sequential power-on delay
8.All critical components are made with internationally renowned brand parts; all cables are selected with national standard copper cables, and all cables are terminated with purple copper terminals, with each cable inside the box having a safety margin of over 20%.
9. Products are designed and manufactured in accordance with national standards, featuring unique reinforcement in the housing design and using sheet metal with a thickness of 1.2mm or more, coated with paint.
10All models are equipped with inspection sockets and lighting control circuits with built-in leakage protection, facilitating on-site maintenance of the display screens by technicians.
Technical Specifications
Rated Capacity | 150KW |
Output Circuit | 45Single-phase circuit |
Number of output channels | Eight Channels |
Input/Output Voltage | Input 3-phase 5-wire system 380V, output single-phase 220V |
Rated output power per channel | ≤3.5KW |
Timer automatic on/off, power failure protection | Available |
Short-circuit and overload protection | Available |
Stepwise delayed power-on | Available |
Panel control knob | Available |
Lighting Inspection Socket | Available |
Phase sequence indicator light | Available |
Input method | Accessible from both sides |
Shell Size | 700mm*1500mm*250mm |
· Usage
Command centers, conference rooms, multi-functional halls, exhibition spaces...and other compact venues, powered by LED screens.
· After-sales service
1One-year free warranty, lifetime technical support.
· Packaging
Standard cardboard box packaging.
· Utilize information
Please read the product user manual thoroughly before use.
· Cautionary Notes
This product contains high voltage; it must be terminated and maintained by a technician with professional electrical qualifications.
