In the LED display industry, the power distribution cabinet, as one of the core components, directly affects the stability and lifespan of the display due to the high surge of current during the startup of the screen, powered by a large number of switching power supplies. Therefore, for displays with power exceeding 10KW, a dedicated intelligent power distribution cabinet for LED displays should be installed.

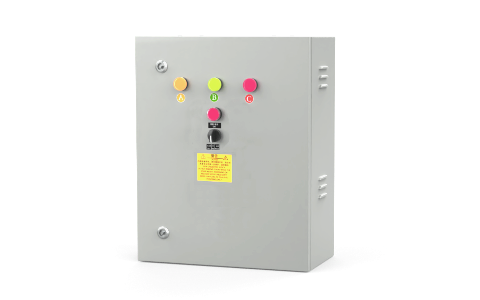

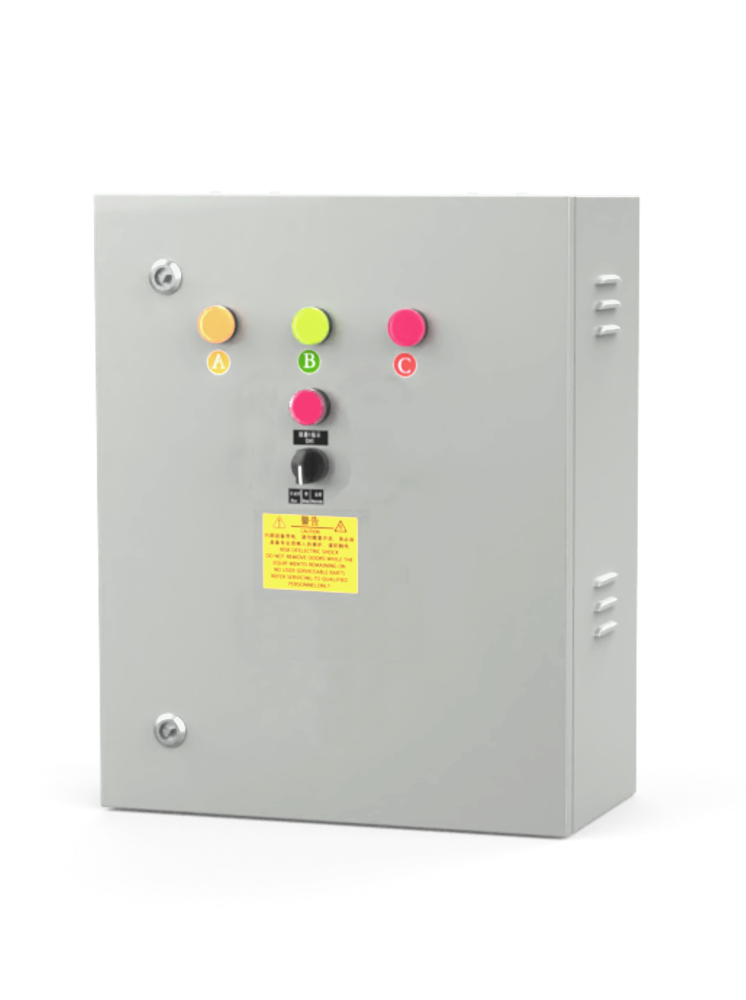

This product features an indoor shell with a total load power of 10KW, capable of connecting 3 single-phase power equipment circuits (such as display circuit, air conditioning circuit, and fan circuit); it offers overcurrent and short-circuit protection, and can manually switch off power, remotely control power-on and off with a multi-functional card, and has a built-in circuit breaker using DELIXI products, and contactors from Schneider Electric. The multi-functional card power supply utilizes MINGWEI's high-reliability industrial-grade products to ensure stable system power supply.
Features
1.All models feature two-level protection; the input circuit breaker is a plastic case circuit breaker, and the output circuit breaker is a miniature circuit breaker. 2. Supports multi-functional card for remote intelligent control of the power system.
3.You can choose between manual or multi-functional card control for on/off and power cut functions.
4.Standard with overcurrent and short-circuit protection.
5.Different color sequence power indicator lights differentiate the phase line power status.
6.Manual, Stop, Automatic, three-speed panel control switch
7.All critical components are made with internationally renowned brand components; all cables are selected with national standard copper cables, and all cables use purple copper terminals for crimping, with each cable in the box having over 20% safety margin.
8. Products are designed and manufactured in accordance with national standards, featuring unique reinforcement in the housing design and using sheet metal with a thickness of 1.2mm or more, coated with plastic.
9.All models come standard with检修sockets equipped with leakage protection and lighting control circuits.
Technical Specifications
Rated Capacity | 10KW |
Output Circuit | 3Single-phase circuit |
Number of output channels | Single Channel |
Input/Output Voltage | Input 3-phase 5-wire 380V, output single-phase 220V |
Rated output power per channel | ≤3.5KW |
Up, power-off control method | Manual/Multifunction Card Remote |
Short-circuit and overload protection | Available |
Schedule to turn on and off electricity | Available |
Entry Method | Accessible from both sides |
Lighting Inspection Socket | Available |
Phase sequence indicator light | Available |
Panel control knob | Available |
Control Indicator | Available |
Shell Size | 400mmx500mm×200mm |
Usage
Command center, conference rooms, multi-functional halls, exhibition halls, etc., are powered by LED screens.
After-sales service
1One-year free warranty, lifetime technical support.
Packaging
Standard cardboard box packaging.
Utilize Information
Be sure to read the product manual thoroughly before use.
Cautionary Notes
This product contains high voltage; it must be terminated and maintained by a technician with professional electrical qualifications.
