In the LED display industry, the power distribution cabinet, as one of the core components, directly affects the stability and lifespan of the display screens. Due to the large amount of switch-mode power supplies feeding LED displays, the screen's startup瞬间 carries a high current, which can easily impact the power grid. Therefore, for displays with power exceeding 10KW, a dedicated intelligent power distribution cabinet for LED displays should be installed.

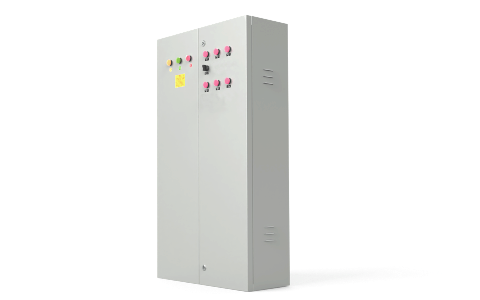

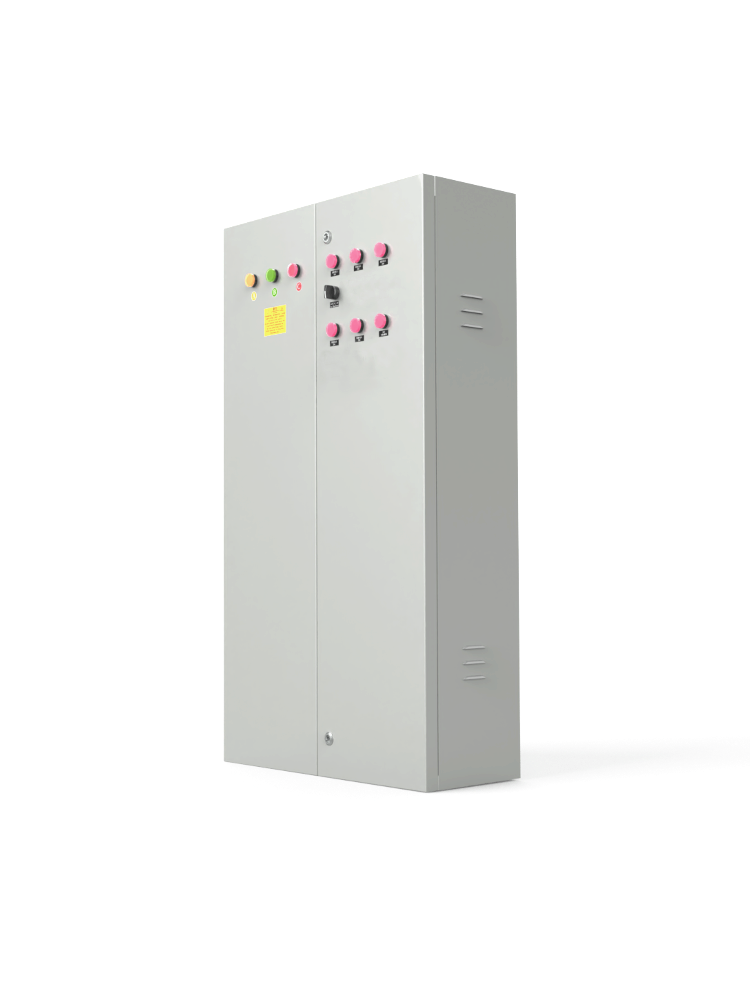

This product features an indoor housing with a total load power of 120KW, capable of connecting 36 single-phase electrical appliances (such as display circuit, air conditioning circuit, fan circuit); it provides overcurrent and short-circuit protection with step-by-step, graded delay for power-on. It supports manual power on/off, scheduled automatic power on, and power off functions. The standard circuit breaker is a Delixi product, and the contactor is a Schneider product. Ensures stable system power supply.。
Feature Highlights
1.All models feature dual protection; the input circuit breaker is a molded case circuit breaker, and the output circuit breaker is a miniature circuit breaker.
2.Supports 16 groups of scheduled automatic operation task management.
3.Choose between manual or timed settings for automatic control of power on and off.
5.Different color sequence power indicator lights differentiate phase line power input.
6.Manual, Stop, Timer—three-position panel control switch.
7. Multi-channel step-by-step sequential power-on delay
8.All critical components are made with internationally renowned brand components; cables are all selected with national standard copper cables, and all cables are crimped with pure copper terminals. The wire diameters inside the box all have a safety margin of over 20%.
9. All products are designed and manufactured in accordance with national standards, featuring unique reinforcement in the housing design and are made of sheet metal with a thickness of 1.2mm or more, then powder-coated.
10Standard equipment includes inspection sockets with leakage protection and lighting control circuits, facilitating technicians to conduct on-site maintenance of the display screens.
Technical Specifications
Rated Capacity | 120KW |
Output Loop | 36Single-phase circuit |
Number of output channels | Six-channel |
Input and Output Voltage | Input 3-phase 5-wire system 380V, output single-phase 220V |
Rated Output Power per Channel | ≤3.5KW |
Timer automatic on/off, power failure protection | Available |
Short circuit and overload protection | Available |
Sequential power-on delay | Available |
Panel control knob | Available |
Lighting Inspection Socket | Available |
Phase sequence indicator light | Available |
Entry method | Accessible from both sides |
Outer Shell Dimensions | 600mm*1200mm*250mm |
· Usage
Command centers, conference rooms, multi-functional halls, exhibition spaces...and other compact venues, powered by LED screens.
· After-sales service
1One-year free warranty, lifetime technical support.
· Packaging
Standard cardboard box packaging.
· Utilize Information
Please read the product manual carefully before use.
· Cautionary Notes
This product contains high voltage; it must be terminated and maintained by a technician with professional electrical qualifications.
