In the LED display industry, the power distribution cabinet, as one of the core components, directly impacts the stability and lifespan of the display due to the high current surge during startup, caused by the large number of switching power supplies. Since these screens are prone to impact the power grid, it is essential to equip displays with a power rating exceeding 10KW with a dedicated intelligent power distribution cabinet for LED displays.

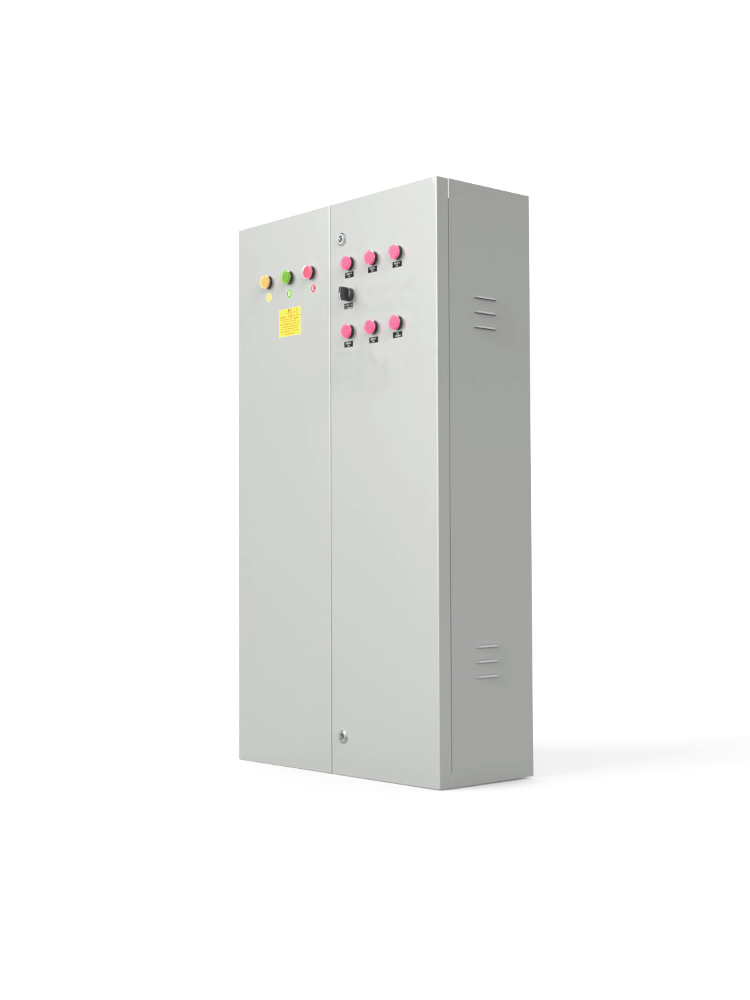

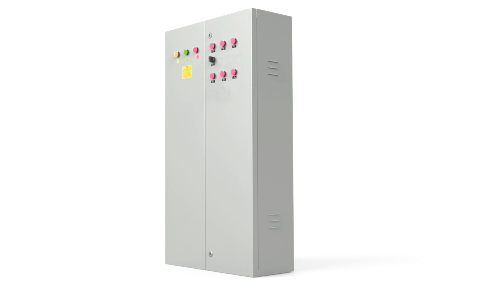

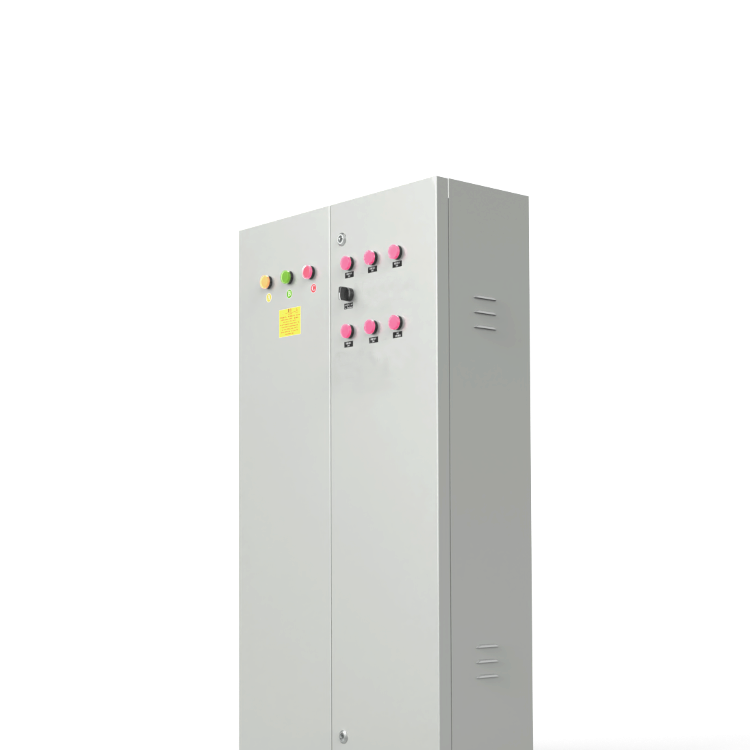

This product features an indoor housing with a total load power of 110KW, capable of connecting 33 single-phase electrical equipment lines (such as display circuit, air conditioning circuit, fan circuit); it provides overcurrent and short-circuit protection with step-by-step, graded delay in power-on. It supports manual power on/off, timed automatic power on, and power off functions. The standard circuit breaker is a Delixi product, while the contactor is a Schneider product. Ensures stable system power supply.。
Feature Highlights
1.All models feature two-level protection; the input circuit breaker is a plastic case circuit breaker, and the output circuit breaker is a miniature circuit breaker.
2.Supports 16 groups of scheduled automatic operation task management.
3.Choose between manual or timed automatic control for power on and off.
5.Phase voltage indicator lights with different colors to distinguish the phase line power supply.
6.Manual, Stop, Timer - three-position panel control switch.
7. Multi-channel step-by-step sequential power-on delay;
8.All critical components are made with internationally renowned brand components; all cables are selected with national standard copper cables, and all cables are terminated with purple copper terminals, with each cable inside the box having a safety margin of over 20%.
9. Products are designed and manufactured in accordance with national standards, featuring unique reinforcement in the shell design and made of sheet metal with a thickness of 1.2mm or more, electroplated with paint.
10Equipped with standard test sockets featuring leakage protection and lighting control circuits, convenient for technicians to inspect the display on-site.
Technical Specifications
Rated Capacity | 110KW |
Output Loop | 33Single-phase circuit |
Number of output channels | Six-channel |
Input/Output Voltage | Input 3-phase 5-wire system 380V, output single-phase 220V |
Rated Output Power Per Channel | ≤3.5KW |
Timer automatic on/off, power failure protection | Available |
Short circuit and overload protection | Available |
Sequential power-on delay | Available |
Panel control knob | Available |
Lighting Maintenance Socket | Available |
Phase sequence indicator light | Available |
Entry method | Line access from both top and bottom |
Outer Shell Dimensions | 600mm*1200mm*250mm |
· Usage
Command centers, conference rooms, multi-purpose halls, exhibition halls, and more compact spaces are powered by LED displays.
· After-sales service
1One-year free warranty, lifetime technical support.
· Packaging
Standard cardboard box packaging.
· Utilize Information
Always read the product manual carefully before use.
· Cautionary Notes
This product contains high voltage; it must be terminated and maintained by a technician with professional electrical qualifications.
