In the LED display industry, the power distribution cabinet, as one of the core components, directly affects the stability and lifespan of the display screens. Since LED displays are powered by a large number of switching power supplies, the screen's startup瞬间 carries a high current, which can easily impact the power grid. Therefore, for displays with a power rating exceeding 10KW, a dedicated intelligent power distribution cabinet for LED displays should be installed.

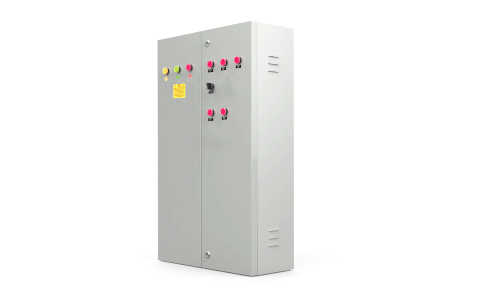

This product features an indoor housing with a total load power of 100KW, capable of connecting 30 single-phase electrical equipment lines (such as display circuit, air conditioning circuit, fan circuit). It offers overcurrent and short-circuit protection, with step-by-step, graded delay for power-on. It can be manually turned on/off, scheduled for automatic power-on, and has power-off functionality. The standard circuit breaker is a Delixi product, while the contactor is a Schneider product. Ensures stable system power supply.。
Key Features
1.All models feature two-level protection; the input circuit breaker is a plastic case circuit breaker, and the output circuit breaker is a miniature circuit breaker.
2.Supports 16 groups of scheduled automatic operation task management.
3.Manual or timed automatic control for power on/off is available.
5.Phase power indicator lights with different colors to distinguish phase lines.
6.Manual, Stop, Timer, three-position panel control switch.
7. Multi-channel step-by-step sequential power-on delay
8.All critical components are manufactured using internationally renowned brand components; cables are all selected to meet national standards using copper cables, with all cables terminated using purple copper terminals, and each cable in the box has over 20% safety margin in wire diameter.
9. Products are designed and manufactured in accordance with national standards, featuring unique reinforcement in the housing design and made of sheet metal with a thickness of 1.2mm or more, then electroplated with paint.
10All models are equipped with test sockets with leakage protection and lighting control circuits, facilitating technicians' on-site maintenance of the display screens.
Technical Specifications
Rated Capacity | 100KW |
Output Loop | 30Single-phase circuit |
Number of output channels | Five channels |
Input/Output Voltage | Input 3-phase 5-wire system 380V, output single-phase 220V |
Rated Output Power per Channel | ≤3.5KW |
Timer automatic on/off | Available |
Short circuit and overload protection | Available |
Sequential power-on delay | Available |
Panel control knob | Available |
Lighting Inspection Socket | Available |
Phase sequence indicator light | Available |
Entry method | Accessible from both top and bottom |
Outer casing dimensions | 600mm*1000mm*250mm |
· Application
Command centers, conference rooms, multi-purpose halls, exhibition spaces... and other compact venues, powered by LED displays.
· After-sales service
1One-year free warranty, lifetime technical support.
· Packaging
Standard cardboard box packaging.
· Utilize Information
Be sure to read the product user manual thoroughly before use.
· Cautionary Notes
This product contains high voltage; it must be terminated and maintained by a technician with professional electrical qualifications.
