In the LED display industry, the power distribution cabinet, as one of the core components, directly impacts the stability and lifespan of the display due to the large amount of switching power supplies it powers. With the screen's startup瞬间 requiring a high current, it is prone to create surges in the power grid. Therefore, for displays with power exceeding 10KW, it is recommended to use a dedicated intelligent power distribution cabinet for LED displays.

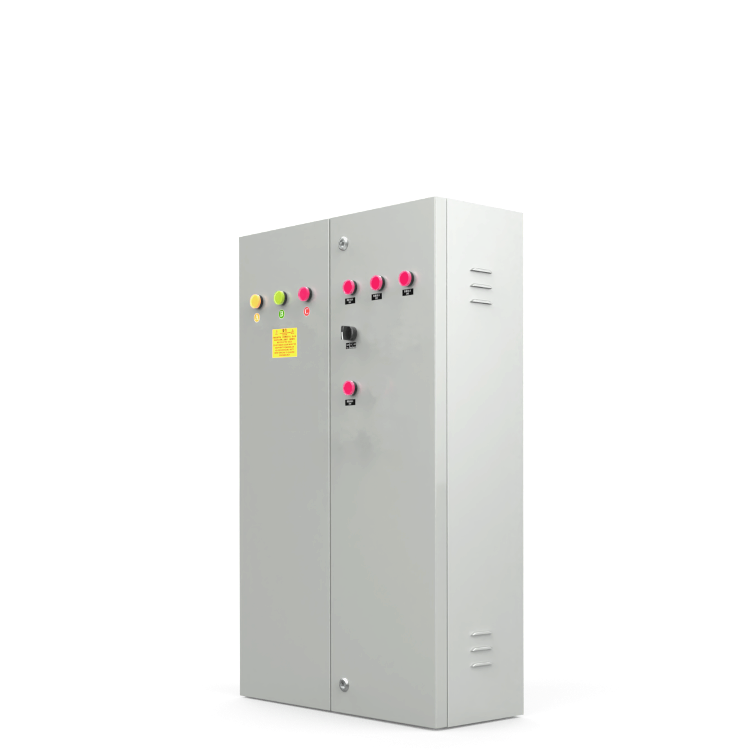

This product features an indoor shell, with a total load power of 80KW, capable of connecting 24 single-phase electrical equipment (such as display circuit, air conditioning circuit, fan circuit); it offers overcurrent and short-circuit protection, with step-by-step delayed power-on. It can be manually turned on/off, scheduled for automatic power-on, and has power-off functionality. The standard circuit breaker is a Delixi product, while the contactor is a Schneider product. Ensures stable system power supply.。
Features and Benefits
1.All models feature dual protection; the input circuit breaker is a plastic case circuit breaker, and the output circuit breaker is a miniature circuit breaker.
2.Supports 16 groups of scheduled automatic operation task management.
3.Choose between manual or timed settings for automatic control of power on and off.
5.Phase sequence power indicator lights of different colors distinguish the phase lines' power input.
6.Manual, Stop, Timer, three-position panel control toggle switch.
7. Multi-channel step-by-step sequential power-on delay
8.All critical components are made with internationally renowned brand components; all cables are selected with national standard copper cables, and all cables are terminated with purple copper terminals, with each cable having a 20% or more safety margin in the box.
9. Products are designed and manufactured in accordance with national standards, featuring unique reinforcement in the shell design and using sheet metal with a thickness of 1.2mm or more, electroplated with paint.
10All models are equipped with circuit breakers and lighting control circuits for easy maintenance by technicians on-site.
Technical Specifications
Rated Capacity | 80KW |
Output Loop | 24Single-phase circuit |
Number of output channels | Four-channel |
Input and Output Voltage | Input 3-phase 5-wire system 380V, output single-phase 220V |
Rated Output Power per Channel | ≤3.5KW |
Timer for automatic on/off, power failure protection | Available |
Short circuit and overload protection | Available |
Sequential power-on delay | Available |
Panel control knob | Available |
Lighting Inspection Socket | Available |
Phase indicator light | Available |
Entry method | Accessible from both top and bottom |
Shell Size | 600mm*1000mm*250mm |
· Usage
Command centers, conference rooms, multi-functional halls, exhibition spaces, and more compact venues – LED display power supply.
· After-Sales Service
1One-year free warranty, lifetime technical support.
· Packaging
Standard cardboard box packaging.
· Utilize Information
Please read the product manual thoroughly before use.
· Cautionary Notes
This product contains high voltage; it must be terminated and maintained by a technician with professional electrical qualifications.
