In the LED display industry, the power distribution cabinet, as one of the core components, directly impacts the stability and lifespan of the display due to the high current surge upon startup. Since LED displays are powered by numerous switch-mode power supplies, they can easily create a shock to the power grid. Therefore, for displays with power exceeding 10KW, a dedicated intelligent power distribution cabinet for LED displays should be installed.

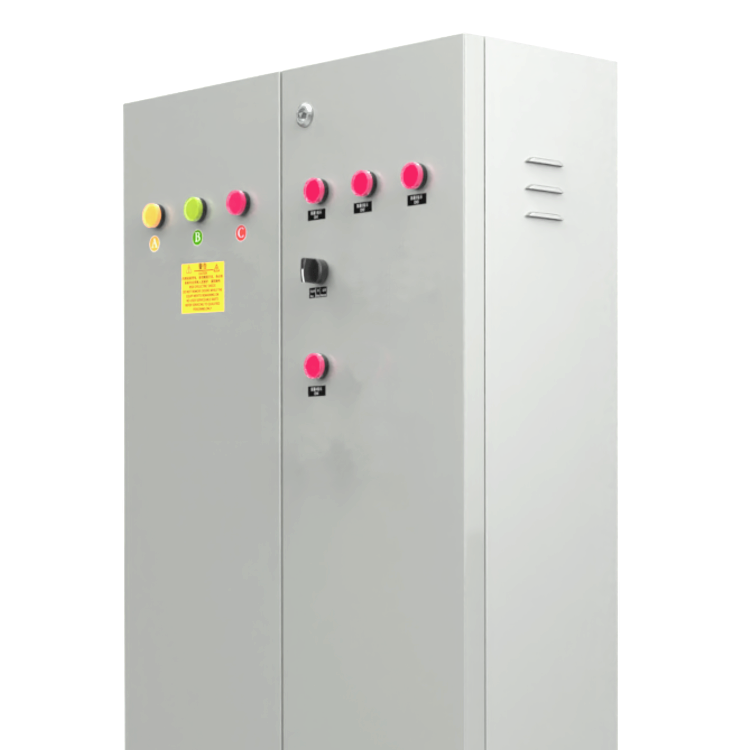

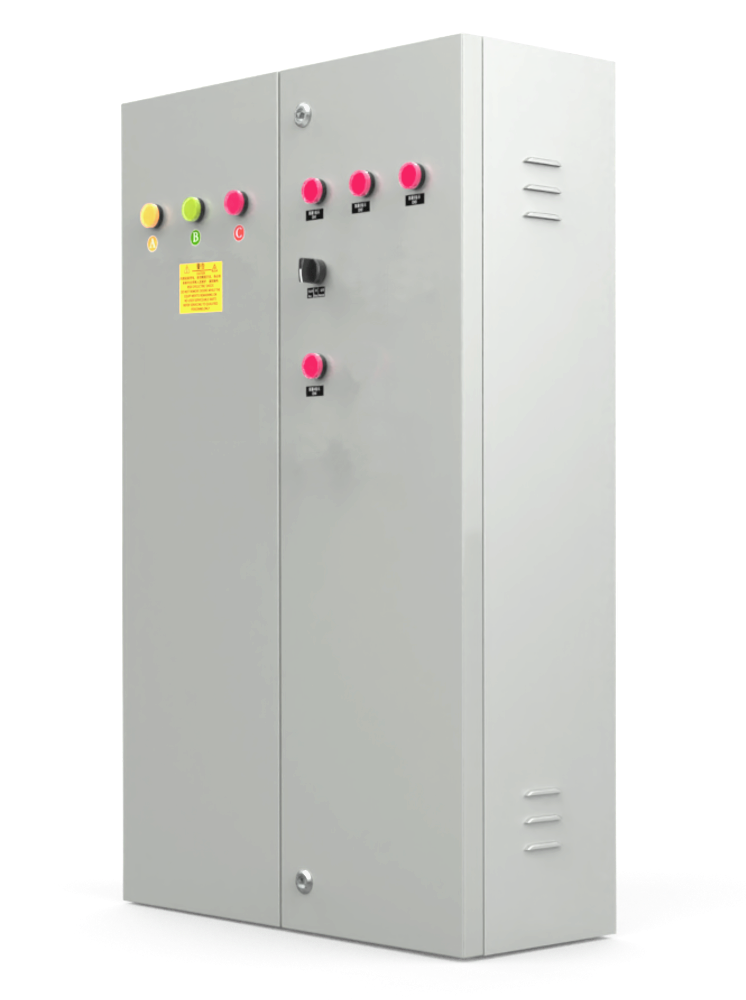

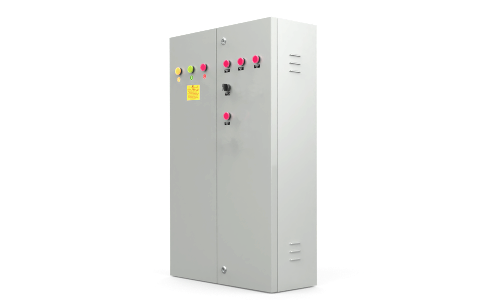

This product features an indoor housing with a total load power of 70KW, capable of connecting 21 single-phase electrical equipment lines (such as display circuit, air conditioner circuit, fan circuit); it provides overcurrent and short-circuit protection with step-by-step delayed power-on. It supports manual power on/off, remote automatic power-on/off via a multi-functional card, and power-off functionality. The standard circuit breaker is a Delixi product, while the contactor is a Schneider product. The multi-functional card power supply utilizes Mingwei's high-reliability industrial-grade products to ensure stable system power supply.
Feature Highlights
1.All models feature two-level protection; the input circuit breaker is a plastic-case circuit breaker, and the output circuit breaker is a miniature circuit breaker. 2. Supports multi-functional card for remote intelligent control of the power system.
3.Choose between manual or multi-functional card control for on/off operations.
4.Standard with overcurrent and short-circuit protection.
5.Different color sequence power indicator lights differentiate the phase line power status.
6.Manual, Stop, Automatic – Three-position panel control toggle switch.
7.Multi-channel step-by-step sequential power-on delay.
8.All critical components are made with internationally renowned brand components; all cables are selected with national standard copper cables, and all cables are terminated with brass terminals, with each cable inside the box having over 20% safety margin.
9. Products are designed and manufactured in accordance with national standards, featuring unique reinforcement in the housing design and utilizing sheet metal with a thickness of 1.2mm or more, coated with plastic.
10.All models come standard with test sockets equipped with leakage protection and lighting control circuits.
Technical Specifications
Rated Capacity | 70KW |
Output Loop | 21Single-phase circuit |
Number of output channels | Four-channel |
Input and Output Voltage | Input: 3-phase 5-wire, 380V; Output: Single-phase 220V |
Rated Output Power Per Channel | ≤3.5KW |
Upper, power shutdown control method | Manual/Multifunctional Card Remote |
Short circuit and overload protection | Available |
Sequential power-on with delay | Available |
Schedule to turn on and off electricity | Available |
Entry method | Top and bottom entry available |
Lighting Inspection Socket | Available |
Phase sequence indicator lamp | Available |
Panel control knob | Available |
Control Indicator | Available |
Automatic step-by-step delayed power-on | Available |
Shell Size | 600mmx1000mm×250mm |
· Application
Command center, conference rooms, multi-functional halls, exhibition halls... and more, LED screen power supply.
· After-sales Service
1One-year free warranty, lifetime technical support.
· Packaging
Standard cardboard box packaging.
· Utilize Information
Always read the product manual carefully before use.
· Cautionary Notes
This product contains high voltage; it must be terminated and maintained by a technically qualified person with professional electrical knowledge.
