In the LED display industry, the power distribution cabinet, as one of the core components, directly impacts the stability and lifespan of the display due to the high current surge upon startup, caused by the large number of switching power supplies. Since this can create a significant impact on the power grid, it is essential to equip displays with a power rating over 10KW with a dedicated intelligent power distribution cabinet for LED displays.

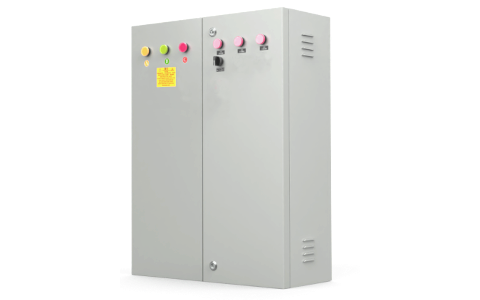

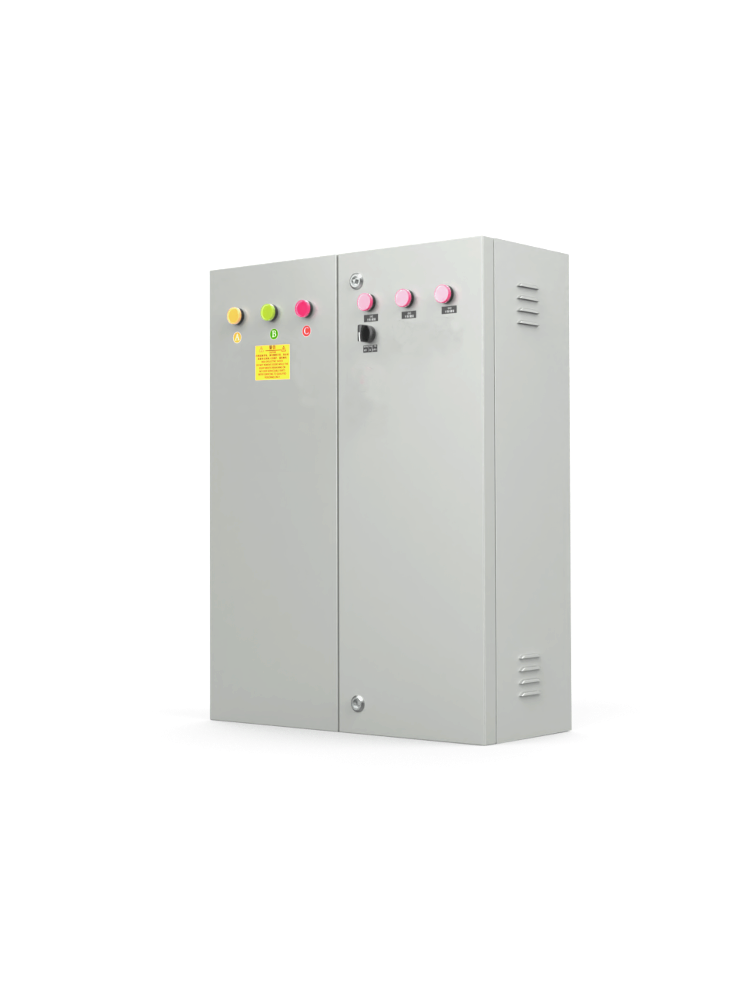

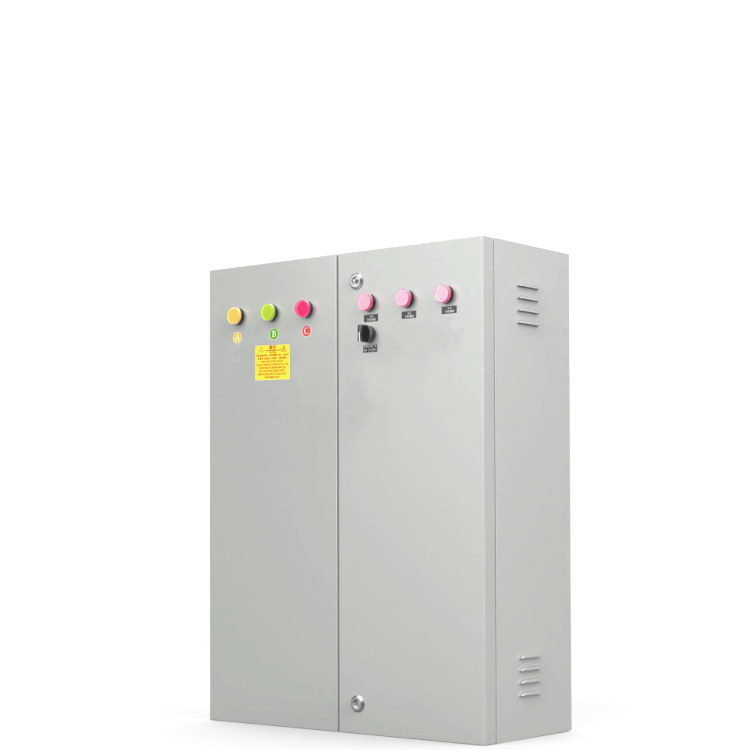

This product features an indoor shell, with a total load power of 60KW, capable of connecting 18 single-phase electrical equipment lines (such as display circuit, air conditioning circuit, fan circuit); it offers overcurrent and short-circuit protection, with step-by-step and graded delayed power-on. It can be manually switched on/off, scheduled for automatic power-on, and has an off function. The standard circuit breaker is a Delixi product, while the contactor is a Schneider product. Ensures stable system power supply.。
Features
1.All models feature two-level protection; the input circuit breaker is a molded-case circuit breaker, and the output circuit breaker is a miniature circuit breaker.
2.Supports 16 groups of scheduled automatic operation task management.
3.Choose between manual or timed settings for automatic control of power on/off.
5.Phase sequence power indicator lights with different colors to distinguish phase line power entry.
6.Manual, Stop, Timer—three-position panel control toggle switch.
7. Multi-channel step-by-step graded power-on delay;
8.All critical components are manufactured with internationally renowned brand components; cables are all selected from national standard copper cables, and all cables are terminated with brass terminals, with each cable inside the box having a safety margin of over 20%.
9. Products are designed and manufactured in accordance with national standards, featuring unique reinforcement in the shell design and made of sheet metal with a thickness of 1.2mm or more, electroplated with paint.
10All models are equipped with test sockets and lighting control circuits with leakage protection, facilitating technicians' on-site maintenance of the display screens.
Technical Specifications
Rated Capacity | 60KW |
Output Loop | 18Single-phase circuit |
Number of output channels | Three-channel |
Input and Output Voltage | Input 3-phase 5-wire system 380V, output single-phase 220V |
Rated Output Power per Channel | ≤3.5KW |
Timer automatic on/off, power failure protection | Available |
Short circuit and overload protection | Available |
Sequential delayed power-on | Available |
Panel control knob | Available |
Lighting Maintenance Socket | Available |
Phase sequence indicator light | Available |
Entry method | Accessible from both sides |
Shell Size | 600mm*800mm*200mm |
· Usage
Command center, conference rooms, multi-functional halls, exhibition spaces... and other compact venues, LED display power supply.
· After-sales Service
1One-year free warranty, lifetime technical support.
· Packaging
Standard corrugated box packaging.
· Utilize information
Be sure to read the product manual thoroughly before use.
· Cautionary Notes
This product contains high voltage; it must be terminated and maintained by a technician with professional electrical qualifications.
