In the LED display industry, the power distribution cabinet, as one of the core components, directly affects the stability and lifespan of the display screens. Due to the large amount of switching power supplies used in LED displays, the screen's startup瞬间 carries a high current, which can easily impact the power grid. Therefore, for displays with power exceeding 10KW, a dedicated intelligent power distribution cabinet for LED displays should be provided.

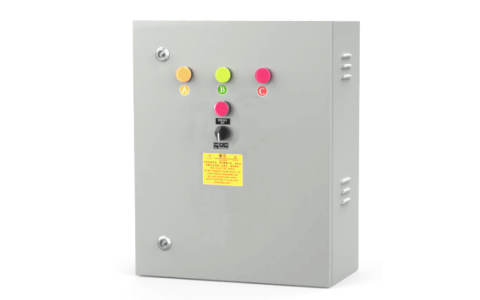

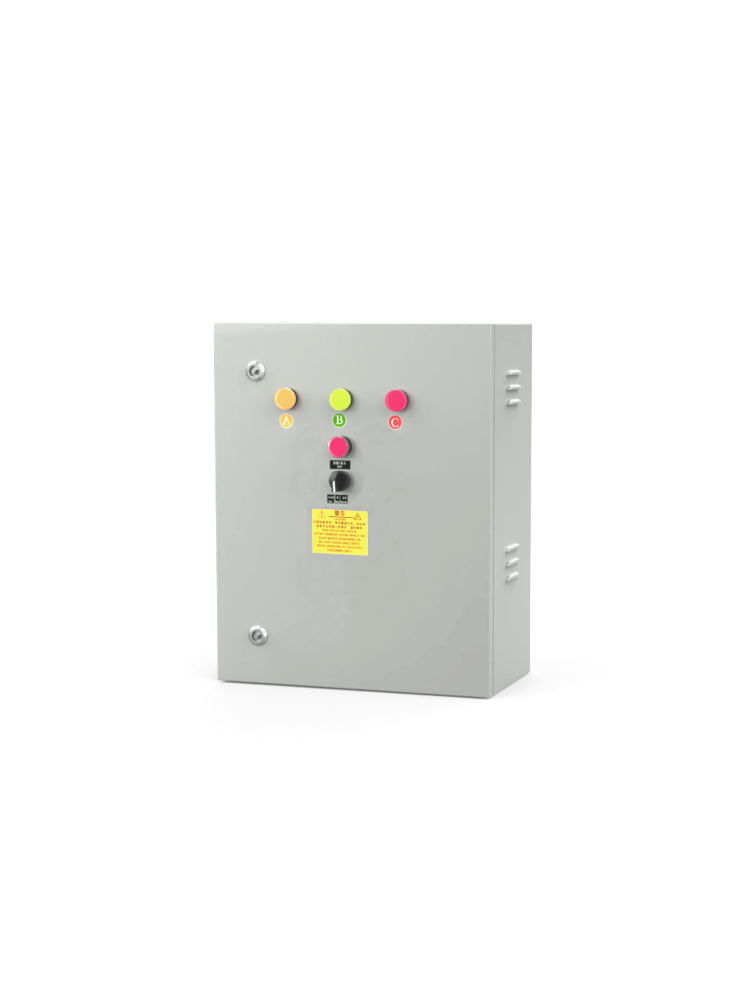

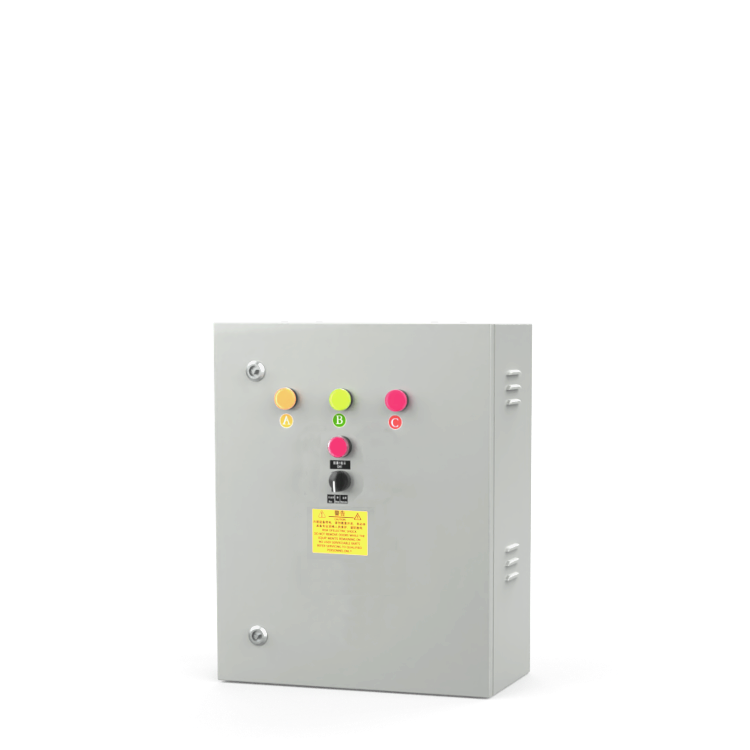

This product features an indoor shell, with a total load power of 10KW, capable of connecting 3 single-phase power-consuming devices (such as display circuit, air conditioner circuit, fan circuit); it offers overcurrent and short-circuit protection. It can be manually turned off, scheduled to automatically turn on, or shut off. The standard circuit breaker is a Delixi product, while the contactor is a Schneider product. Ensures stable power supply to the system.。
Feature highlights
1.All models feature two-level protection; the input circuit breaker is a molded case circuit breaker, and the output circuit breaker is a miniature circuit breaker.
2.Supports 16 groups of scheduled automatic operation task management.
3.Choose between manual or timed settings for automatic control of power on/off.
5.Phase sequence power indicator lights with different colors to distinguish the phase wires.
6.Manual, Stop, Timer, three-position panel control switch.
7. Multi-channel step-by-step gradual power-on delay.
8.All key components are manufactured using internationally renowned brand electronic components; cables are all made of GB standard copper cables, and all cables are terminated with purple copper terminals, with 20% or more safety margin in wire diameter within the box.
9. Products are designed and manufactured in accordance with national standards, featuring unique reinforcement in the housing design and made of sheet metal with a thickness of 1.2mm or more, electroplated with paint.
10Equipped with standard electrical leakage protection sockets and lighting control circuits, facilitating technicians to inspect the display screen on-site.
Technical Specifications
Rated Capacity | 10KW |
Output circuit | 3Single-phase circuit |
Number of output channels | Single-channel |
Input/Output Voltage | Input 3-phase 5-wire system 380V, output single-phase 220V |
Rated output power per channel | ≤3.5KW |
Timer auto-on, power-off protection | Available |
Short circuit and overload protection | Available |
Panel control knob | Available |
Lighting Inspection Socket | Available |
Phase sequence indicator light | Available |
Entry method | Line access available from both sides |
Shell size | 400mm*500mm*200mm |
· Application
Command centers, conference rooms, multifunctional halls, exhibition halls, and more compact spaces are powered by LED screens.
· After-sales service
1One-year free warranty, lifetime technical support.
· Packaging
Standard cardboard box packaging.
· Utilize information
Always read the product manual thoroughly before use.
· Cautionary Notes
This product contains high voltage; it must be terminated and maintained by a technician with professional electrician qualifications.
