In the LED display industry, the power distribution cabinet, as one of the core components, directly affects the stability and lifespan of the display screens. Due to the large amount of switching power supplies feeding LED displays, the screen's startup瞬间 draws a significant current, which can easily impact the power grid. Therefore, for displays with power over 10KW, a dedicated intelligent power distribution cabinet for LED screens should be installed.

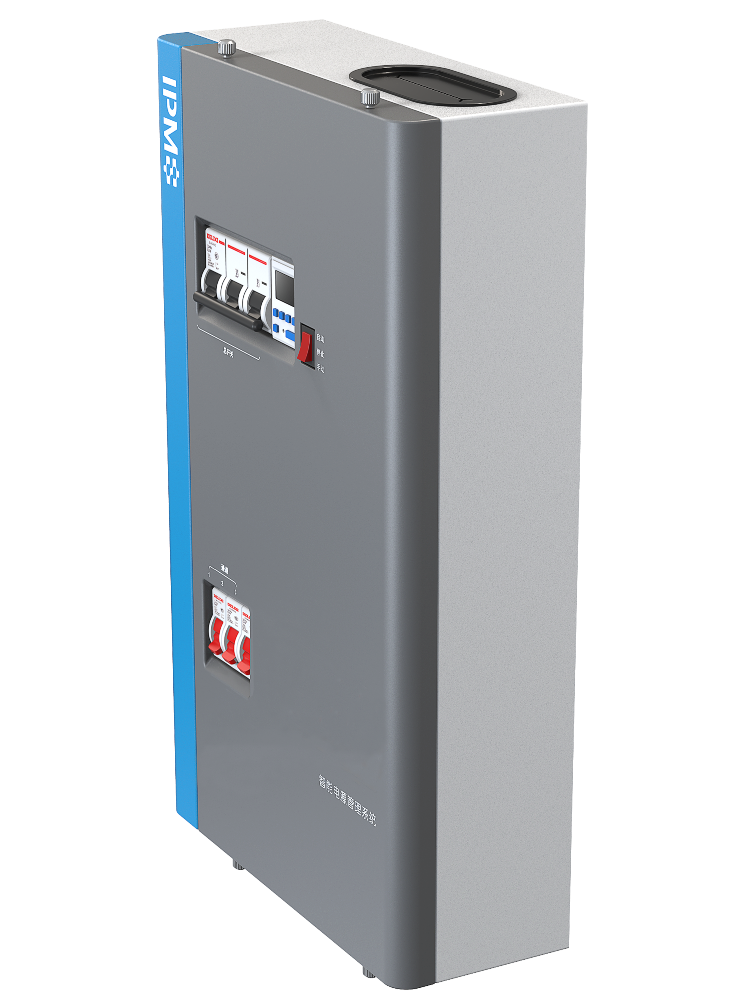

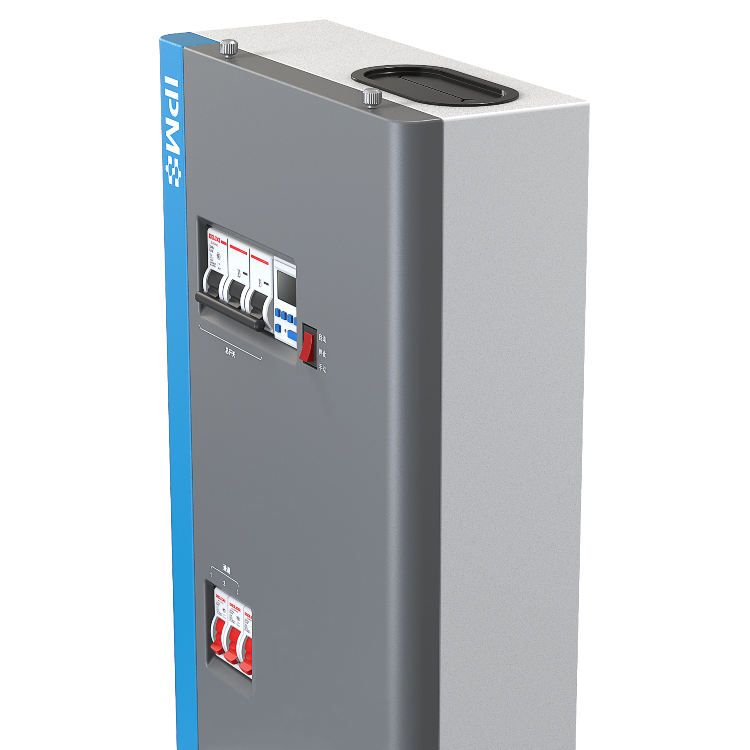

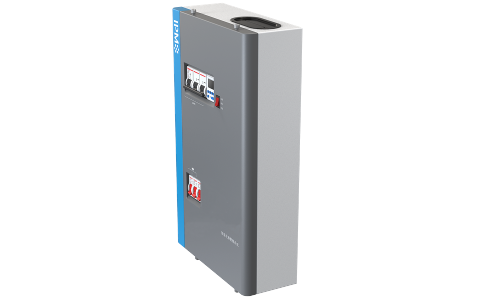

This product features an indoor housing with a total load power of 10KW, capable of connecting 3 single-phase electrical equipment circuits (such as display loop, air conditioning loop, and fan loop); it provides overcurrent and short-circuit protection with step-by-step, graded delay in power-up. It supports manual power on/off, timed automatic power on, and power-off functions, with a compact and exquisite appearance.

• Features

1.All series feature two-level protection; the input circuit breaker is a molded case circuit breaker, and the output circuit breaker is a miniature circuit breaker.

2.Supports 16 groups of timed automatic operation task management.

3.Manual or timed settings for automatic control of power on and off.

4.Manual, Stop, Timer—three-speed panel control toggle button.

5. Multi-channel step-by-step graded power-on delay;

6.All critical components are made with renowned brand electronic components; all cables are selected as national standard copper cables, and all cables use purple copper terminals for crimping. The cable diameters inside the box all have more than a 20% safety margin.

7. Products are all designed and manufactured according to standard specifications, with unique reinforcement in the shell design.

       8.Attractive and compact, suitable for tight installation environments.

• Technical Specifications
