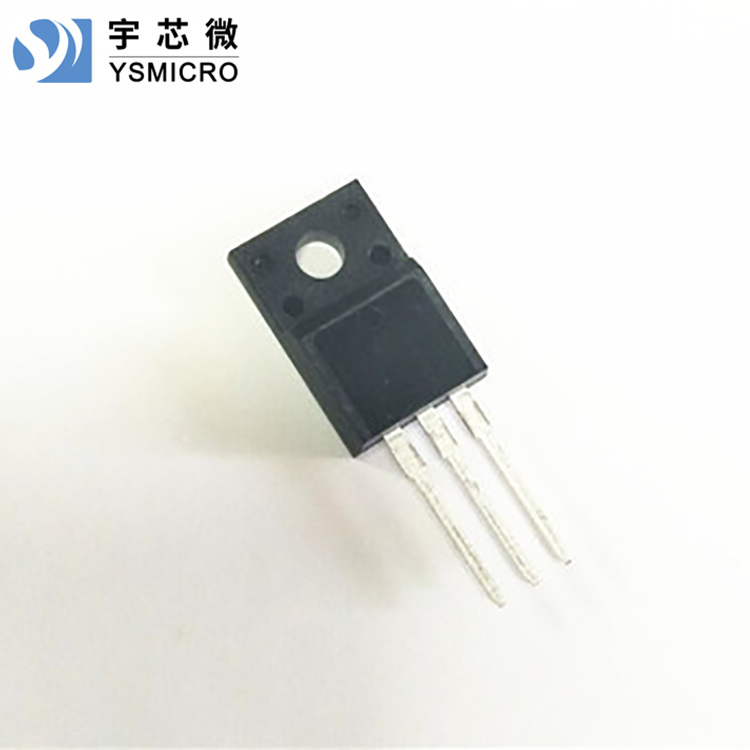

Three-terminal voltage regulator L78M24 description:
L78M24 is a 24V output voltage three-terminal positive voltage regulator, characterized by its ability to maintain a fixed output voltage, which makes it widely applicable.
Three-terminal voltage regulators L78M24 features:
Output Current: 0.5A
Output Voltage: 24V
Overload protection
Short-circuit protection
Output Conversion SOA Protection
Packaging Types: TO-220/TO-220F/TO-252(DPAK)/TO-251(IPAK)
Regulator L78M24's maximum ratings:
DC Input Voltage (V)O=5~18V) VI ：35V
DC Input Voltage (V)O=24V) VI ：40V
Output Current IO ：0.5A
Storage Temperature Range: Tstg ：-65~+150℃
Operating Temperature Range Top ：0~+150℃
Pin diagram for the 3-terminal voltage regulator L78M24:
Three-terminal voltage regulator L78M24 electrical characteristics:
