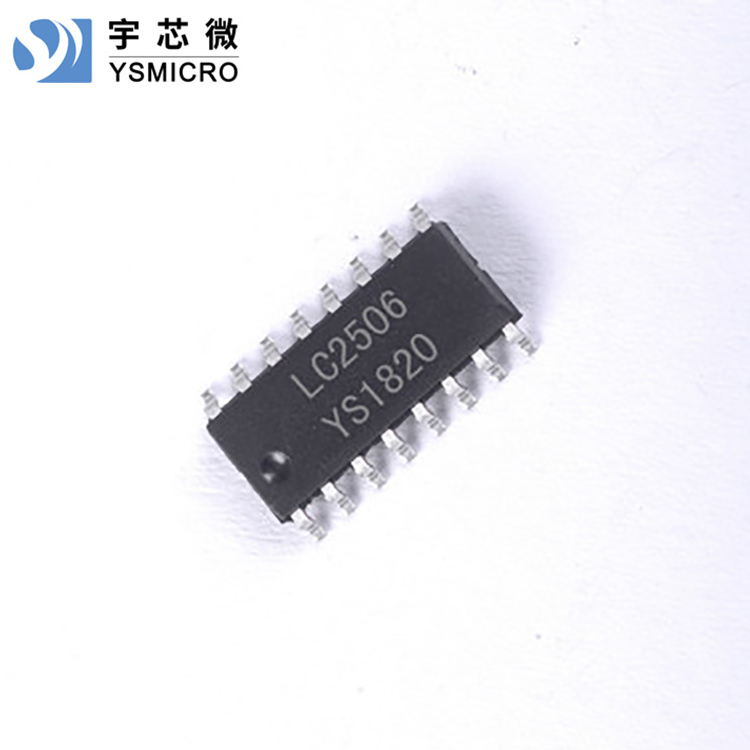

Six-channel Darlington drive circuitFeatures of LC2506:
Single-channel collector output current: 300mA
High-pressure resistance: 30V
Input compatible TTL/CMOS logic signals
Integrated 78L05 three-terminal voltage regulator
Widely used in relay drives
Packaging: DIP16, SOP16
Six-channel Darlington drive circuitApplication of LC2506:
Relay Driver
LED Driver
Display Driver
Six-channel Darlington drive circuitLC2506's Limit Value:
Unless special requirements are specified, TA=25℃
| Parameters | Symbol | Numeric | Unit |
| Drive output CE voltage | VCE | 30 | V |
| Diode Clip Reverse Voltage Rating | Vd | 30 | |
| Input Voltage | VI | 30 | |
| Cathode Current (Continuous Current) | IC | 300 | mA |
| Base Current (Continuous Current) | IB | 20 | |
| Bonding Temperature | TJ | 150 | ℃ |
| Work Environment Temperature | Topt | -20~+85 | |
| Storage Temperature | Tstg | -55~+150 |
Six-channel Darlington driver circuitLC2506 Electrical Characteristics:
Unless otherwise specified, TA=25℃
