AMS1117 Internal Structure Diagram:

AMS1117 Description:

AMS1117 is a low dropout linear voltage regulator, with a typical input-output voltage difference of only 1.4V when delivering 1A of output current.

The AMS1117 offers various fixed voltage versions (Vout=1.8V, 3.3V, 5V), as well as adjustable output versions, which can provide an output voltage range of 1.25V to 10V.

The AMS1117 offers comprehensive overcurrent and overtemperature protection features (with an extremely wide operating temperature range of -10℃ to 85℃ for AMS1117), ensuring the stability of the chip and power system. Additionally, advanced calibration technology is applied during production to ensure output voltage and reference source accuracy within ±1% tolerance.

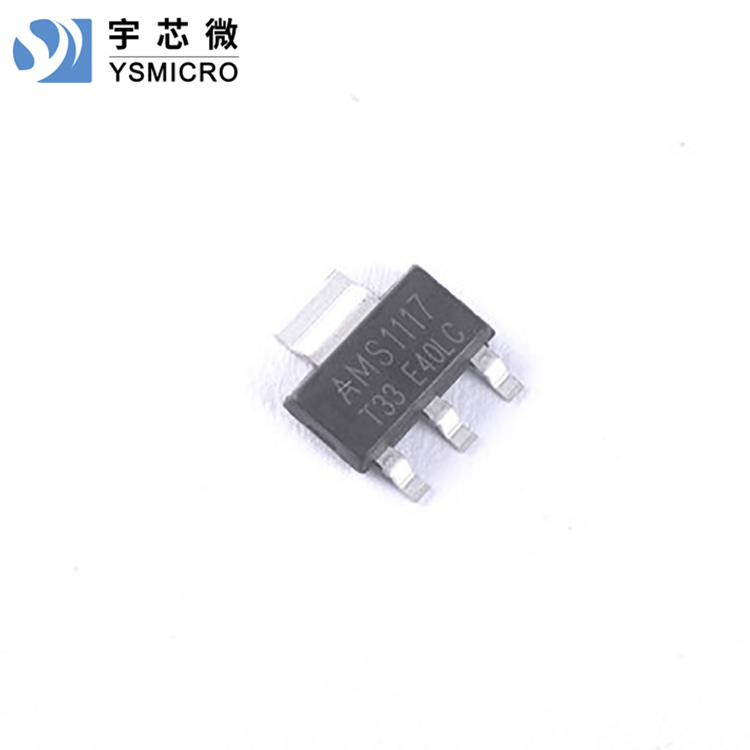

The AMS1117 is available in packaging types including SOT-223, TO-252, and SOT-89.

AMS1117 Features:

• Including three adjustable output versions (adjustable voltages include 1.8V, 3.3V, 5V, ADJ, etc.) and fixed voltage output versions (other voltage specifications available upon customer request)

• Maximum output current is 1A

• Output voltage accuracy up to ±1%

• Stable operating voltage range up to 12V

• Voltage linearity: 0.2%

• Load linearity is 0.4%.

• Ambient Temperature: The range of TA is -10~85℃


Application of AMS1117:

• Motherboard, Graphics Card

• LCD Monitors and LCD TVs

• DVD Decoder Board

• ADSL equipment

• Power Supply Secondary Voltage Stabilizer


AMS1117's maximum limits:
