Product Introduction
As society evolves, the demand for safe and reliable electricity usage grows. High-voltage circuit breakers play a dual role of control and protection in the power system, and their performance directly affects the safe operation of the power system. Mechanical characteristic parameters are one of the key factors in evaluating the performance of circuit breakers.

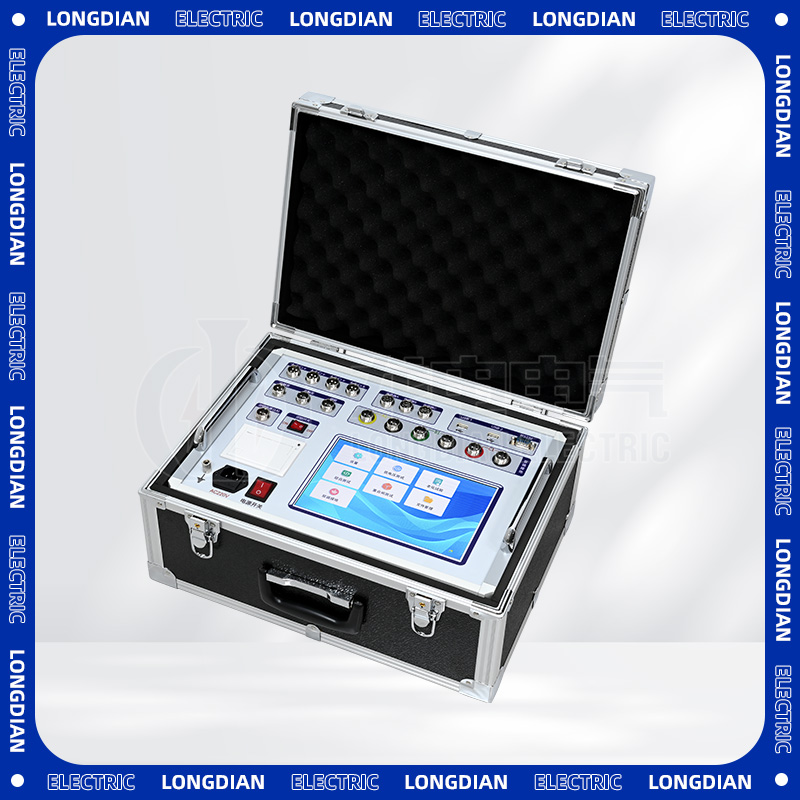

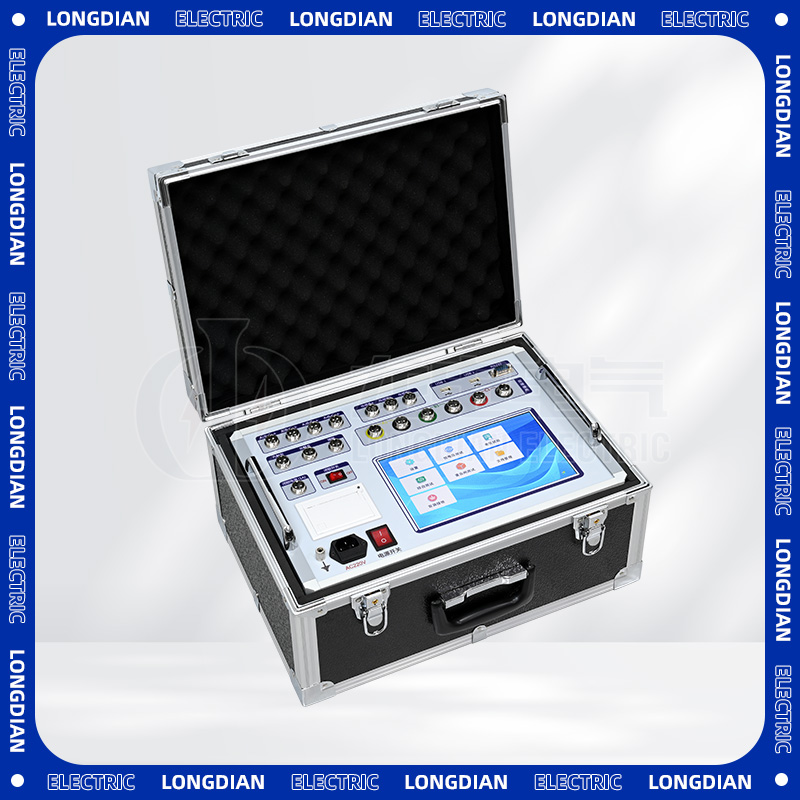

To meet the diverse needs of users for testing the dynamic characteristics of high-voltage switches, Longdian Electrical has meticulously developed a brand-new high-voltage switch dynamic characteristic tester. The GKC-HAS dual-end grounded high-voltage switch characteristic tester can accurately measure the mechanical dynamic characteristic parameters of various voltage-grade low-oil, high-oil, vacuum, SF6, and special high-voltage circuit breakers. It boasts easy operation, precise data, strong anti-interference capability, compact size, and exquisite appearance. In addition to meeting the general dynamic characteristic testing requirements for high-voltage switches on the market, it also satisfies dual-end grounding tests, enabling the tester to effectively conduct mechanical characteristic tests on high-voltage switches.
Product Synonyms: High Voltage Switch Mechanical Characteristic Tester, Circuit Breaker Mechanical Characteristic Tester, High Voltage Switch Dynamic Characteristic Tester, Circuit Breaker Dynamic Characteristic Tester, High Voltage Switch Characteristic Tester, Circuit Breaker Characteristic Tester, High Voltage Switch Comprehensive Characteristic Tester, High Voltage Switch Time Characteristic Tester, High Voltage Switch Parameter Tester
Product Features
The GKC-HAS Dual Terminal Grounding High Voltage Switch Test Instrument is a high-performance embedded industrial computer. It features a CortexTM-A8 processor with a frequency up to 1GHz and is equipped with 1GB flash memory, ensuring a quick boot-up time of just 16 seconds. It is fitted with a 9-inch color touchscreen, runs on the Windows operating system, offers an intuitive user interface, supports both Chinese and English input, making it easy for on-site operators to get started.
Equipped with a high-speed thermal printer for on-site direct printing of test data. The built-in operational power design eliminates the need for additional on-site power sources, providing adjustable DC power from 6 to 270V with a maximum current of 20A. Users can set the action voltage for the solenoid coils as needed to conduct low-voltage operation tests.
Equipped with various sensors, including linear sensors, rotary sensors, universal sensors, and optional laser sensors. Paired with brackets and dedicated multi-functional mounting interfaces, installation is extremely simple and quick.
◆ Suitable for all SF6 switches, GIS integrated switchgear, vacuum switches, and oil switches of all models worldwide. It can immediately retrieve all data and graphics after one switch operation, allowing test results and graphics to be displayed on the same screen, with the speed data capable of being recalculated without the need for repeated testing.
The main unit is capable of storing up to 30,000 sets of test data (storage capacity is expandable), features an internal real-time clock for easy data archiving. The device is also equipped with 2 USB ports, supports mouse operation, and allows direct data saving to a USB flash drive or uploading to a computer for analysis and storage. Additionally, optional interfaces are available for online operation, as well as WIFI functionality.
◆ Capable of measuring 12 metal contact break points, 6 main break points, 6 auxiliary break points, and 1 speed (optional 3 speeds). It includes an envelope function, which can generate standard envelopes from switch test data for analysis and comparison, as well as switch vibration frequency analysis.
The internal anti-interference circuit design ensures reliable operation within a 500KV substation.
